Trek

Trek Dual Sport+ 2 Stagger E-Bike 2024

$2,499.99
$2,499.99
$3,499.99
Tax included.
If what you're looking for is unavailable call our store 1300 436 379
Color: Glactic Grey
Size:

The Dual Sport+ 2 Stagger is a lightweight and capable hybrid electric bike that’s designed for adventure on the road and light trails. It has an intuitive and natural feeling pedal-assist system that makes exploring your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tyres give you confidence on varied terrain.

Overview

Specifications

Sizing

Overview

It's right for you if...

You want a lightweight, simple-to-use hybrid e-bike that brings a capable boost to daily errands and rides as well as weekend adventures.


The tech you get

A lightweight aluminium frame with a stagger design that's easier to hop on and off, Trek's proprietary pedal-assist system with a hub motor (250 W, 40 Nm) that assists up to 20 mph (25 km/h in Europe) and a 250 Wh battery for a range of up to 55 kilometres per charge. Plus, stiff 650b wheels and wide 50c tyres for capability and comfort on varied terrain, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery and a kickstand.


The final word

All the capability and confidence of Dual Sport, with an electric boost that helps you do more! The Dual Sport+ lets you haul groceries uphill with ease and adventure further than you thought possible.


Why you'll love it
  • This is our lightest hybrid e-bike, making it easier to manoeuvre while parking and less of a pain to carry up stairs
  • The pedal-assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
  • Stiff wheels and wide tyres give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight

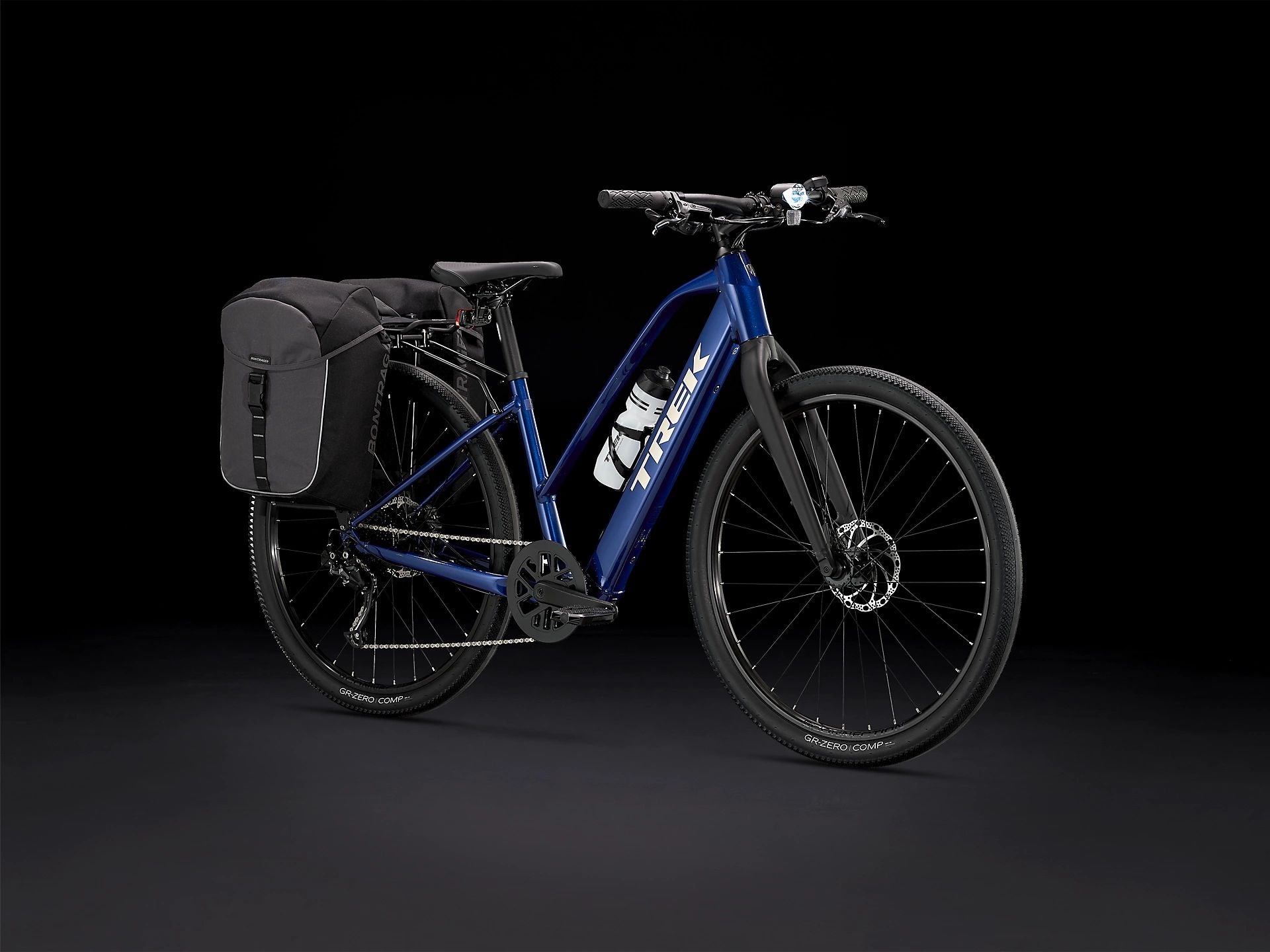

  • It's easy to accessorise with mudguards and a rear rack to carry everything you need
  • Double your range with a 250 Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame

Specifications

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount
Fork DS+ alloy, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm bolt-on skewer
Wheels
Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front 135x5 mm bolt-on

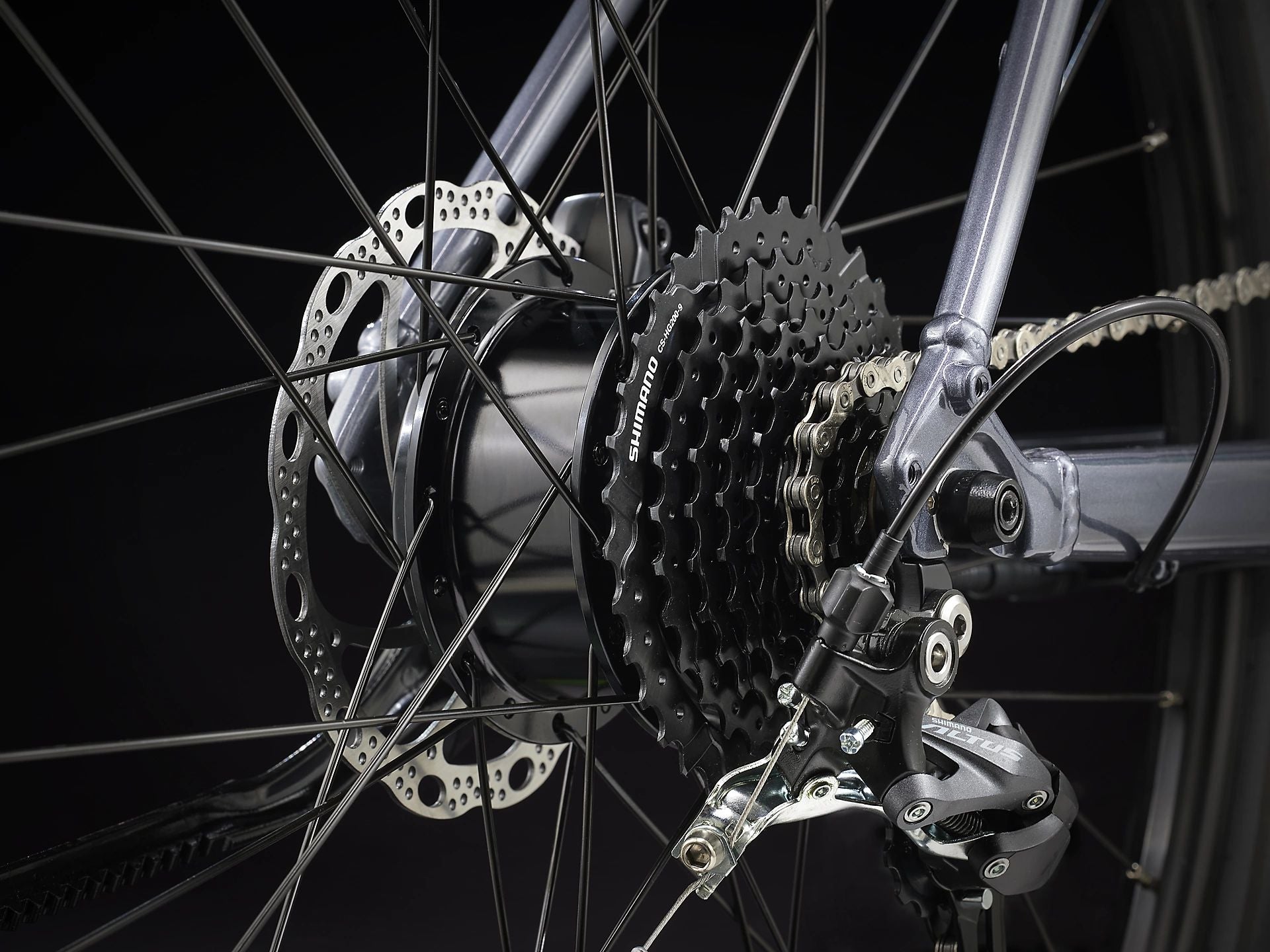

Hub rear Hyena hub drive motor, 40 Nm, 250 W
Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes 14 g stainless steel, black
Tyre Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm
Max tyre size 27.5x2.00" with or without mudguards
E-system

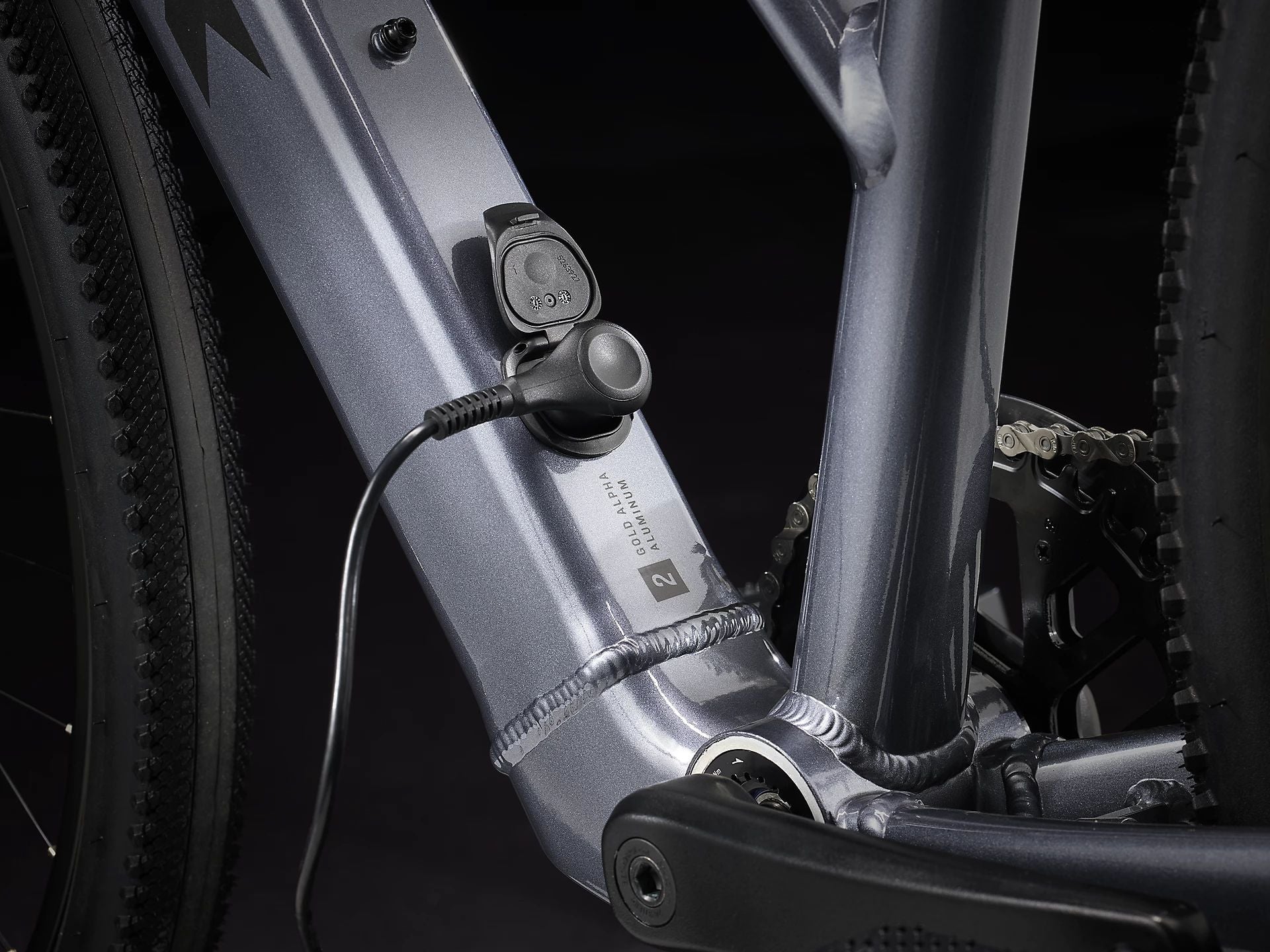

Battery 250 Wh, integrated in down tube
Charger 2A, 42V output, 100V–240V AC input
Computer LED display
Drivetrain
Shifter Shimano Altus M2010, 9-speed
Rear derailleur Shimano Altus M2000, long cage
*Crank Size: S, M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length
Size: L
ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm length
Bottom bracket Torque sensor, threaded, 122.5 mm spindle
Cassette Shimano HG200, 11-36, 9-speed
Chain KMC X9
Pedal Bontrager City pedals
Max. chainring size 1x: 42T
Components
Saddle Bontrager Sport
*Seatpost Size: S, M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: L
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar Size: S, M
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Size: L
Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width
Grips Bontrager XR Endurance Comp, lock-on
*Stem Size: S, M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size: L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brake Shimano hydraulic disc, MT200 lever, UR300 calliper
Brake rotor Shimano RT26, 6-bolt,160 mm
Accessories
*Light Size: S, M, L
Herrmans MR4, 120-lumen LED
Size: S, M, L
Spanninga Solo
Kickstand Alloy, rear mount
Weight
Weight M - 17.28 kg / 38.1 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

72 - 78 cm

28" - 31"

M

165 - 175 cm

5'5" - 5'9"

77 - 83 cm

30" - 33"

L

175 - 186 cm

5'9" - 6'1"

82 - 88 cm

32" - 35"

Geometry

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size number Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
45cm S 27.5" 40.8 73.5° 15.5 70.0° 56.9 27.8 7.0 46.8 5.0 7.6 109.2 65.5 38.2 60.4
50cm M 27.5" 46.3 73.0° 17.0 70.5° 57.4 27.8 7.0 46.8 5.0 7.3 109.5 67.2 38.5 62.0
55cm L 27.5" 50.7 73.0° 20.0 71.0° 59.2 27.8 7.0 46.8 5.0 6.9 110.9 69.3 39.3 65.0
