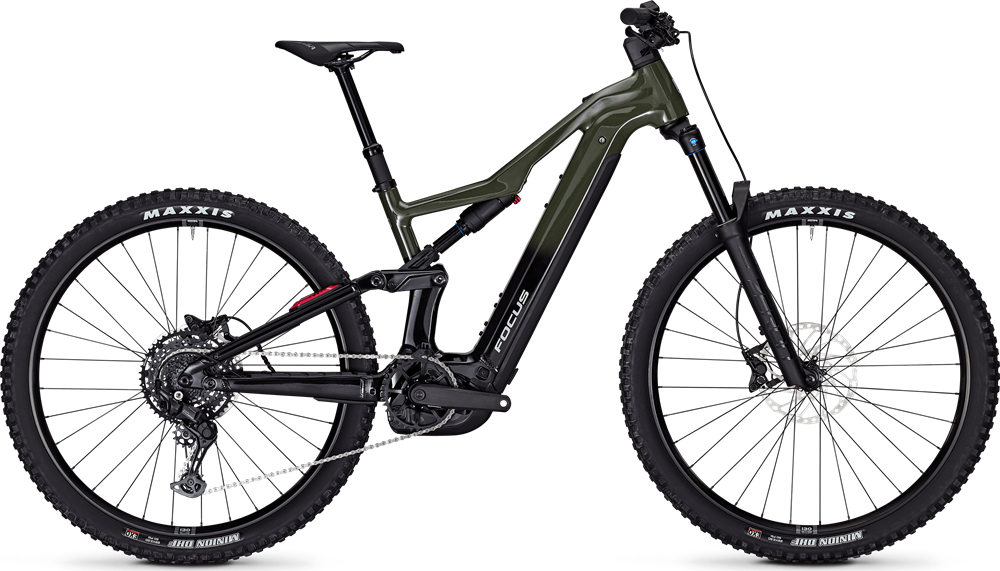

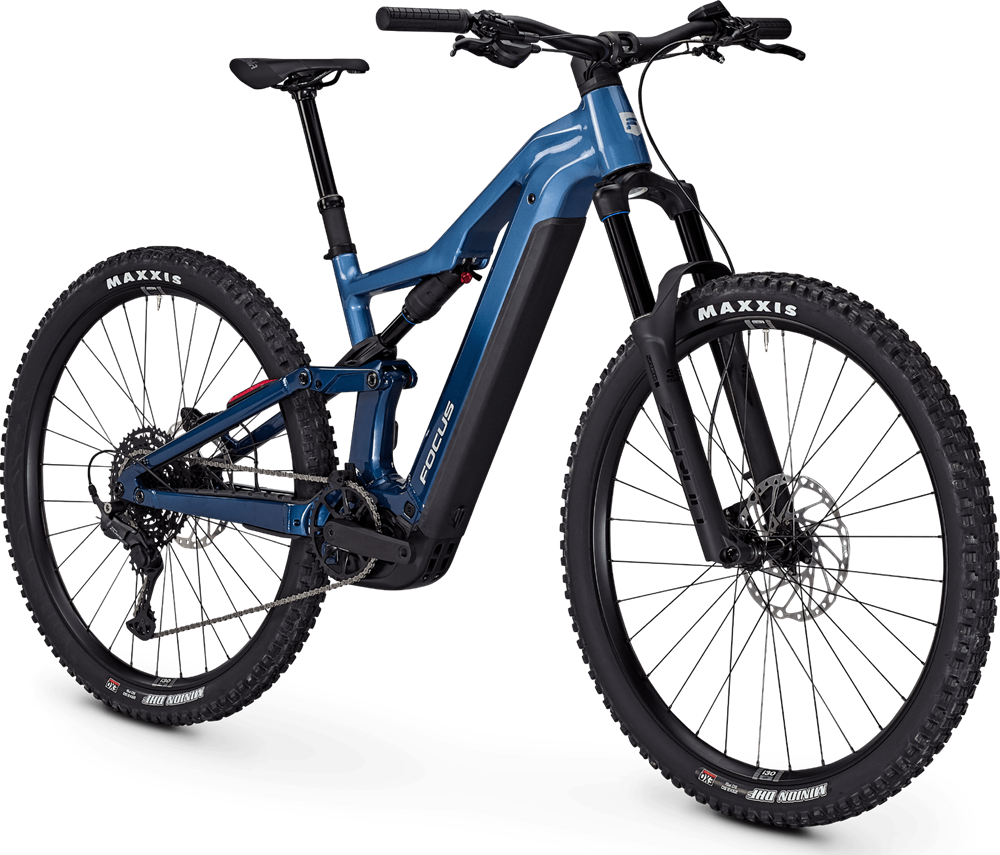

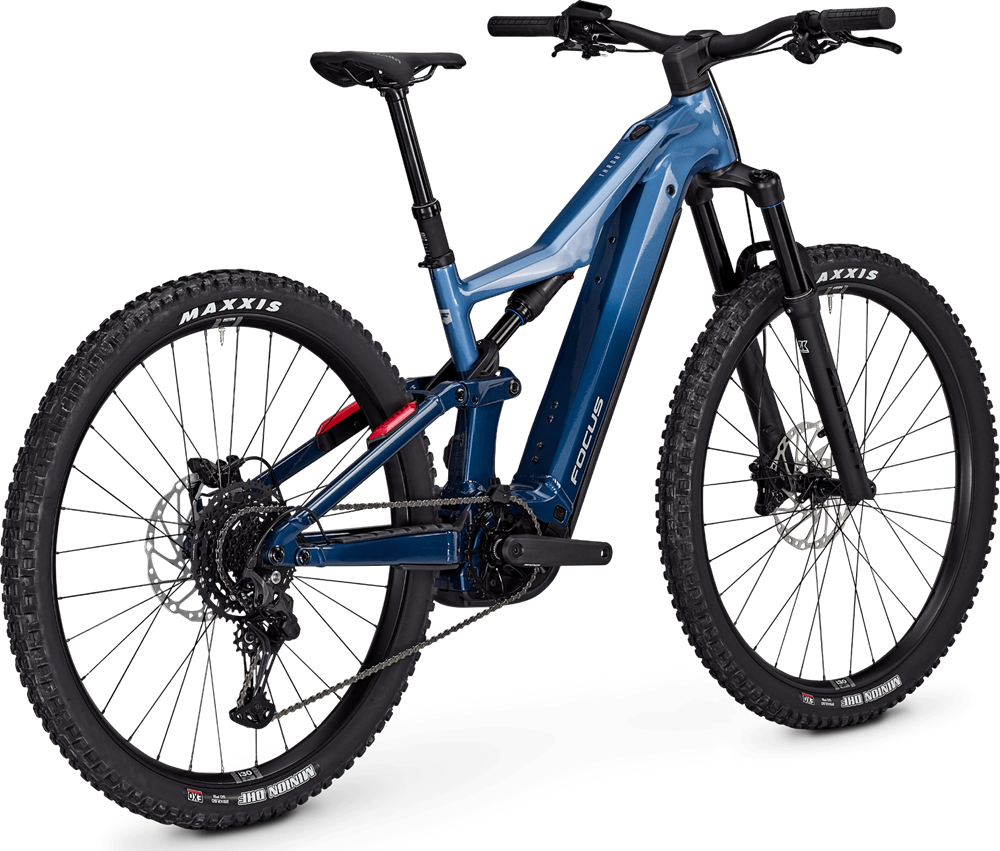

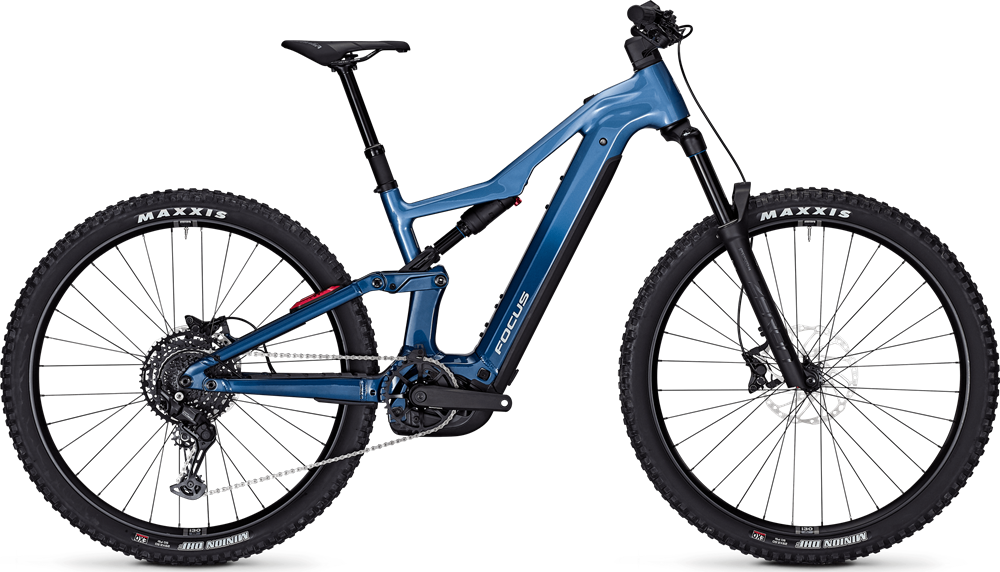

Aluminium frame with Bosch Performance Line CX e-drive & 600 or 800 Wh battery

SR SUNTOUR ZERON 36 2CR fork & SR SUNTOUR EDGE Evo R shock

SHIMANO CUES 10-speed

Frame
7005 hydroformed aluminium, 140 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm

Special Features
Hidden AirTag or Chipolo holder, USB-C charging port, Integrated rear light, Front light cable pre-installed

Fork
SR Suntour Zeron 36 X Boost, 2CR, 150 mm

Shock
SR Suntour Edge Evo R, 140 mm

Motor
Bosch Performance Line CX, 85 NM, 100 NM update via Flow App available summer

Battery
Bosch PowerTube Li-Ion (600 Wh)

Display & Remote
Bosch Purion 200

Shifter
Shimao Cues

Rear derailleur
Shimano Cues, 10-speed

Cassette
Shimano CS-LG300, 11-48T

Chain
Shimano CN-LG500

Crankset
Samox, 165 mm

Chainring
Samox, 36 T

Handlebar
JD Riser, alloy, width: 800 mm, rise: 30 mm

Grips
VP Lock-On Grips

Stem
FOCUS C.I.S. 2.0, 50 mm

Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated

Saddle
Selle Italia X3 Boost

Seatpost
Post Moderne DP-212, S / M /L / XL: 125 / 150 / 170 / 200 mm, 34,9 mm

Brakes front | rear
Shimano MT420, 4-piston | Shimano MT420, 4-piston

Disc brake rotors
Shimano SM-RT64, front: 203 mm / rear: 203 mm

Rim front
WTB STi30, alloy, 29"

Rim rear
WTB STi30, alloy, 29"

Front hub
Shimano HB-TC500

Rear hub
Shimano FH-TC500

Tyres front | rear
Maxxis Minion DHF, TLE, EXO, 29 x 2,5" | Maxxis Minion DHF, TLE, EXO, 29 x 2,5"

Weight
25.4 kg (600 Wh)

Permissible system weight
150 kg
