FASTER IN EVERY DIRECTION

The new R5 frame is 130g lighter than the previous model—a 16% reduction from an already-light frame.  And while aerodynamics weren’t a focus with this frame the way they would be on an S5 or P5, bringing the cables inside reduced drag by 25g.

DARKER THAN NIGHT, LIGHTER THAN AIR

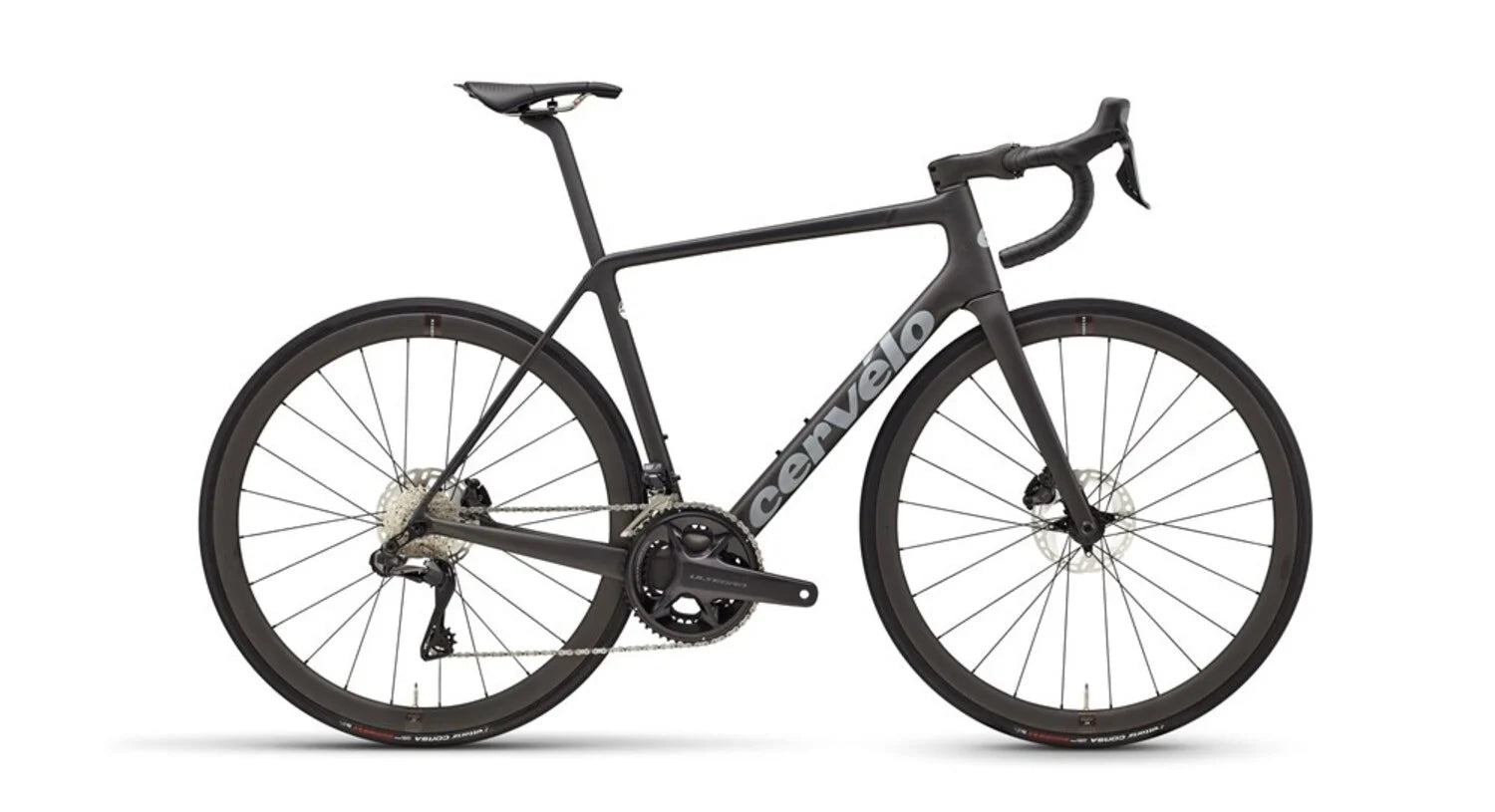

The color black may absorb all light, but Cervélo Five Black is anything but heavy. This ultra-minimal graphics and paint package results in a frame that’s significantly lighter—they’ll never even see you coming.

LESS STIFF, STILL FAST

The R5 is stiff, but not too stiff—the Goldilocks of climbing bikes if you will. Poise, stability, and power transfer that feels “just right” and  keeps you fresh and ready to take on the road ahead.

TURBULENT AERO

New to R5 this year is the Reserve 34 - 37 TA Wheelset. That TA stands for Turbulent Aero, a new way of thinking about aerodynamics. Reserve and Cervélo have developed a protocol by which we replicate real-world wind conditions, and develop airfoil shapes that perform better outside. This means a wheelset that’s not only light, stiff, and fast, but exceptionally stable and confidence inspiring in all wind conditions.

Sizes 48, 51, 54, 56, 58, 61
Fork Cervélo All-Carbon, Tapered R5 Fork
Headset FSA IS2 1-1/4 x 1-1/2
Stem Cervélo ST31 Carbon
Handlebar Cervélo HB13 Carbon, 31.8mm clamp
Seatpost Cervélo SP24 Carbon
Saddle Prologo Scratch M5 PAS TiRox
Shifters Shimano Ultegra, R8170, 12 speed
Brake Calipers Shimano Ultegra
Brake Rotor Shimano CL800 Centerlock
Front Derailleur Shimano Ultegra, R8150, 12 speed
Rear Derailleur Shimano Ultegra, R8150, 12 speed
Cassette Shimano Ultegra 11-34, 12 Speed
Chain Shimano M8100, 12 speed
Crankset Shimano Ultegra R8100, 52/36T, 12 Speed
Bottom Bracket Ceramic Speed, BBright for 24mm spindle
Wheels Rear: Reserve 37TA, Zipp ZR1 ST, 12x142mm, HG freehub, 24H centerlock, tubeless compatible Front: Reserve 34TA, Zipp ZR1 ST, 12x100mm, 24H centerlock, tubeless compatible
Thru Axles Cervelo Aero Thru-Axles, 12x100/142
Tires Corsa Pro TLR blk-blk G2.0 OEM 700x26c
Max Tire Width (Actual) 34mm
Accessories Cervelo Faceplate Front Computer/Accessory Mount, Cervelo Rear Accessory Mount

FRAME SIZING

How do I determine what bike size I need?


The age-old question, isn’t it? There are many factors that go into bicycle sizing and fit, particularly for high-performance bikes. Without being able to measure you and see you on a bike, precise fit information is difficult to supply. It’s also not unusual for someone to be able to ride two different sizes depending on their goals, flexibility, and fit tolerance. That said, we have some fantastic retailers, and we’d encourage you to go start a conversation with them about what you want from your new bike.

Geometry


48 51 54 56 58 61
Reach mm 363 374 383 392 401 410
Stack mm 491 515 540 565 590 615
Head Tube Angle 71° 72° 73° 73° 73° 73°
Front Center mm 574 576 578 595 611 628
Bottom Bracket Drop mm 74.5 74.5 72 72 69.5 69.5
Head Tube Length mm 86 106 130 156 184 211
Top Tube Length mm 516 532 548 565 581 598
Seat Tube Angle 73° 73° 73° 73° 73° 73°
Standover Height mm 708 748 774 798 824 848
Trail mm 57.3 57.3 57.3 57.3 57.3 57.3
Wheel Size 700c 700c 700c 700c 700c 700c
Fork Offset mm 57.5 51.5 45.5 45.5 45.5 45.5
Wheelbase mm 972 974 977 994 1011 1028
Chainstay Length mm 410 410 410 410 410 410
