Trek Dual Sport 1 Gen 5 2024

$899.00
$899.00
$999.99
Tax included.
If what you're looking for is unavailable call our store 1300 436 379
All bikes need to be COLLECTED IN STORE or delivered locally by Hendry's.
Due to our dealer agreements and manufacturer guidelines, all bikes sold from Hendry's must be fully assembled, and inspected to conform with warranty requirements which prohibits shipping.
Color: Mercury
Size:

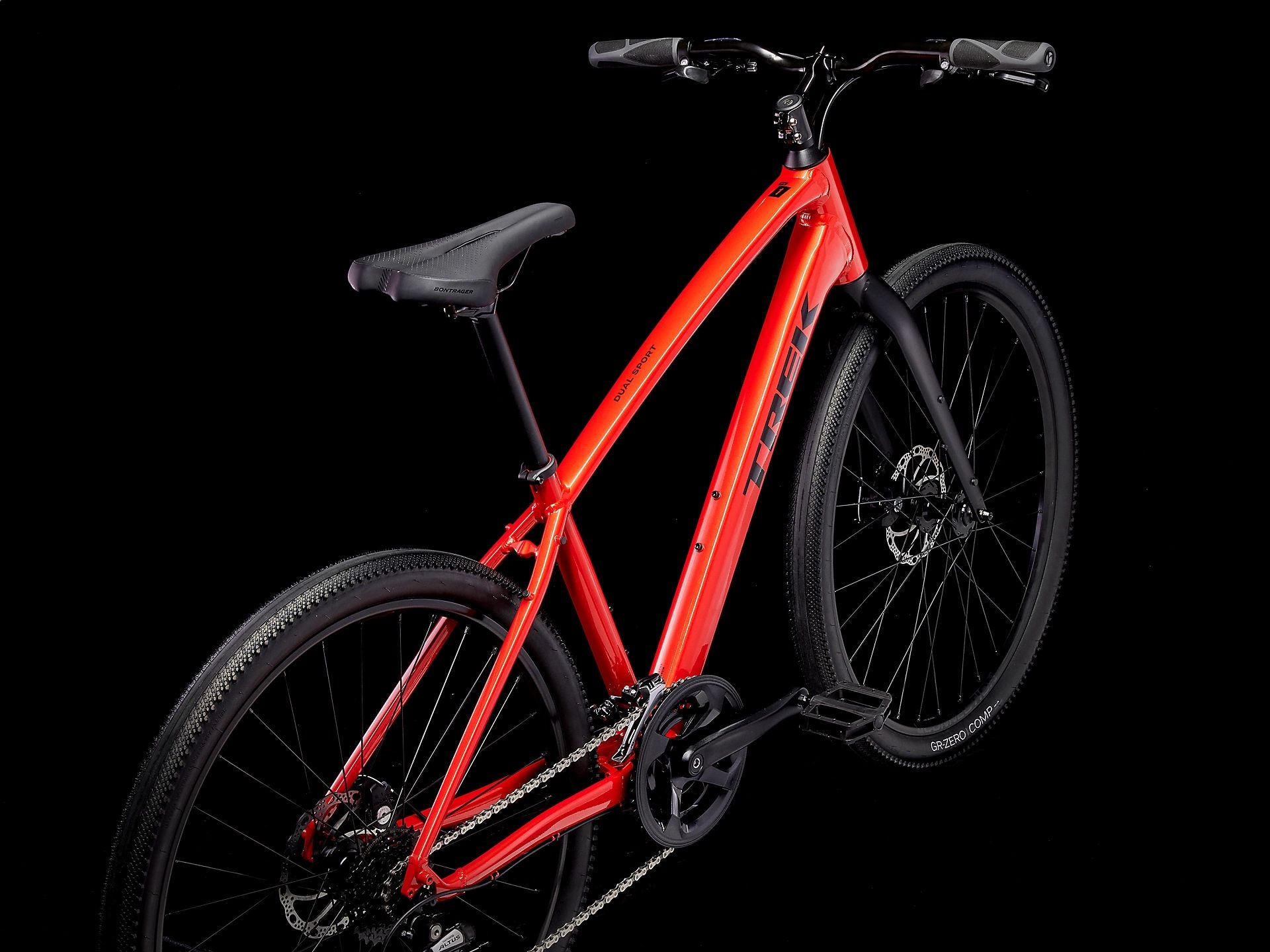

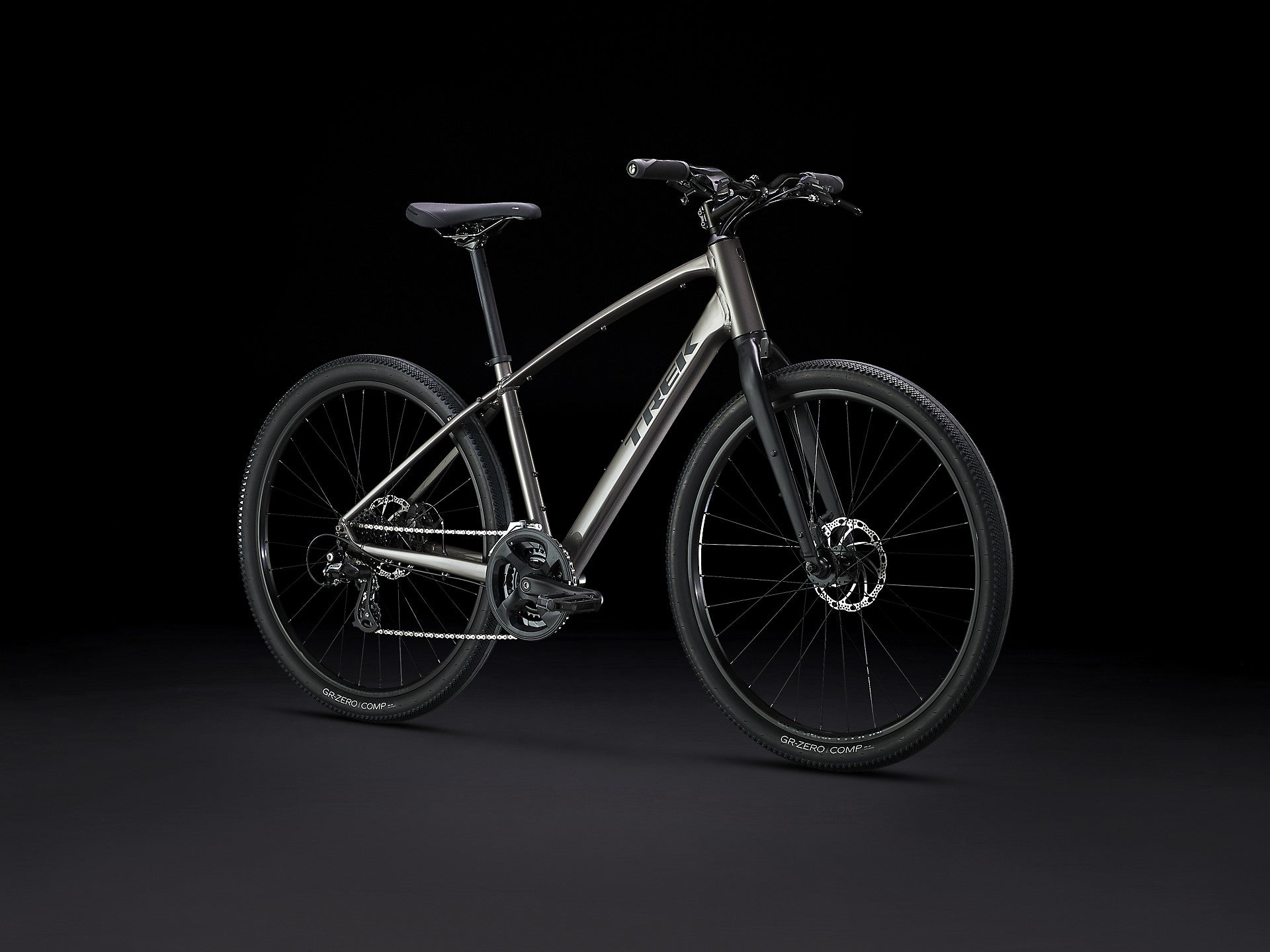

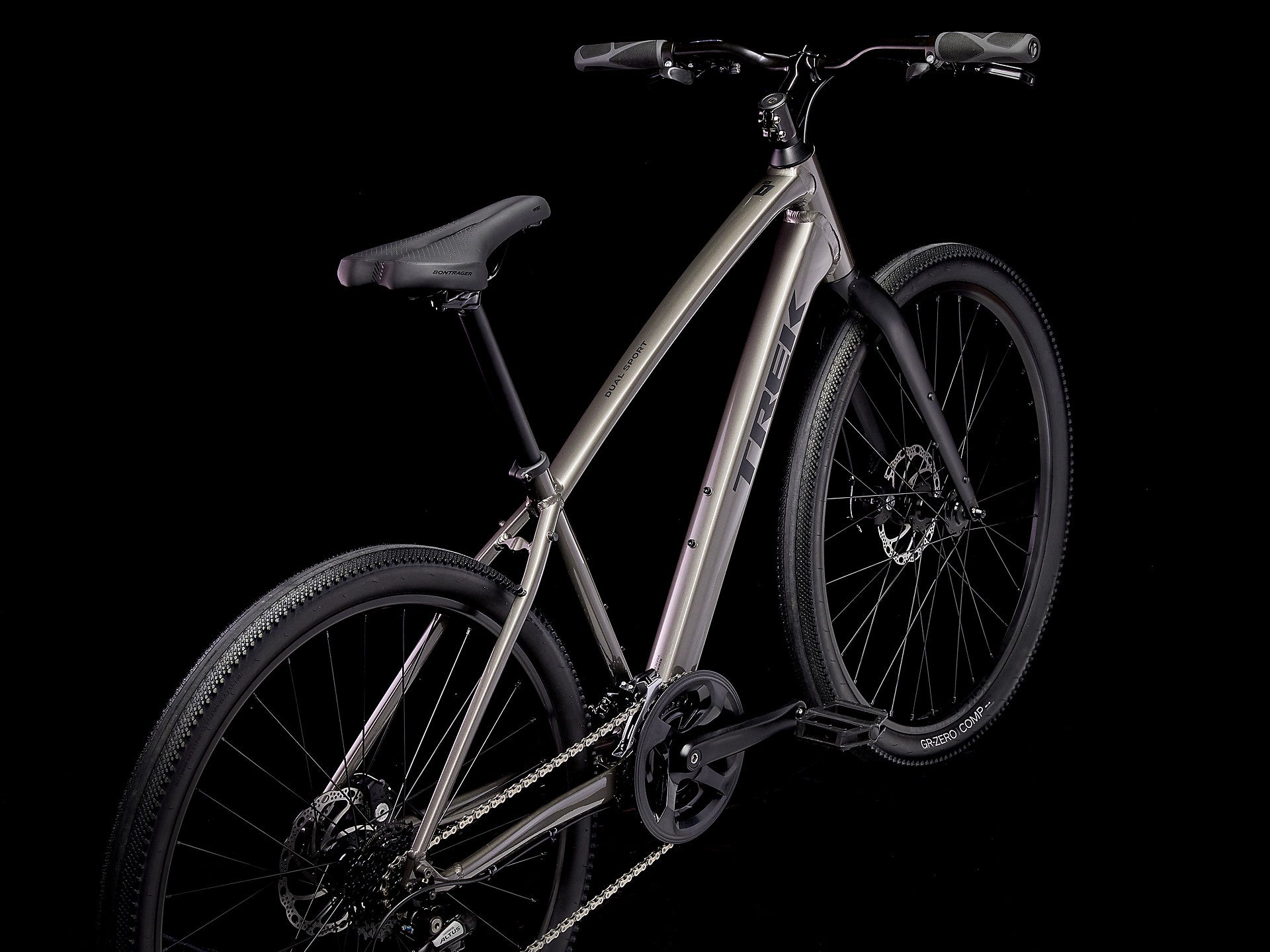

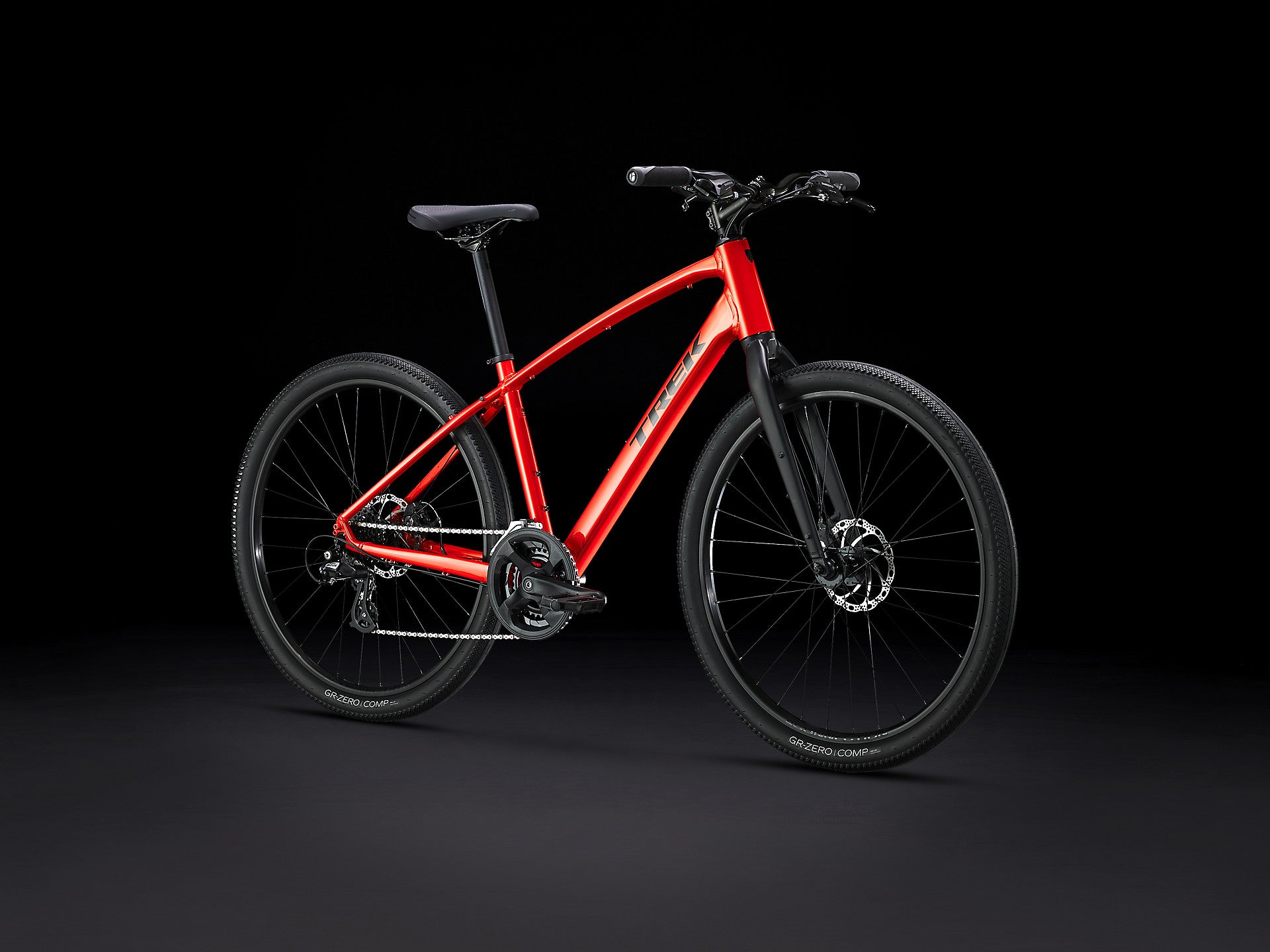

The Dual Sport 1 is a go-anywhere hybrid bike that's fun to ride on a variety of surfaces. It has a light frame, a sturdy drivetrain and powerful brakes. Wide wheels and lofty tyres soak up bumps and rough terrain for a comfortable, confident ride on the road, light gravel trails, bike paths and more.

Overview

Specifications

Sizing

Overview

It's right for you if...

You want a sturdy and light hybrid bike that's efficient on the road and comfortable on rougher terrain and even light trails. You value confidence, stability, versatility and performance on recreational rides, fitness rides and commutes that cover a variety of terrain.


The tech you get

A lightweight aluminium frame with sleek internal cable routing and rack and mudguard mounts, wide 650b wheels and wide 50c tyres for capability and comfort on varied terrain, a reliable 2x8 Shimano drivetrain with a wide range of gearing so you're never pedalling too hard or too soft, comfortable ergonomic grips and powerful mechanical disc brakes for all-weather stopping power.


The final word

The Dual Sport 1 is a capable, versatile hybrid bike designed to help you explore more of your world. It’s the perfect hybrid bike for those who enjoy riding on both the road and on light trails.


Why you'll love it
  • Wide wheels and wide tyres give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
  • Versatile light gravel tyres are fast on the road and grippy on rougher terrain
  • The lightweight aluminium frame is reliable and sturdy, and it keeps you feeling comfortable while you ride
  • It's easy to accessorise your frame with racks, a kickstand, mudguards, lights and more!

Specifications

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR

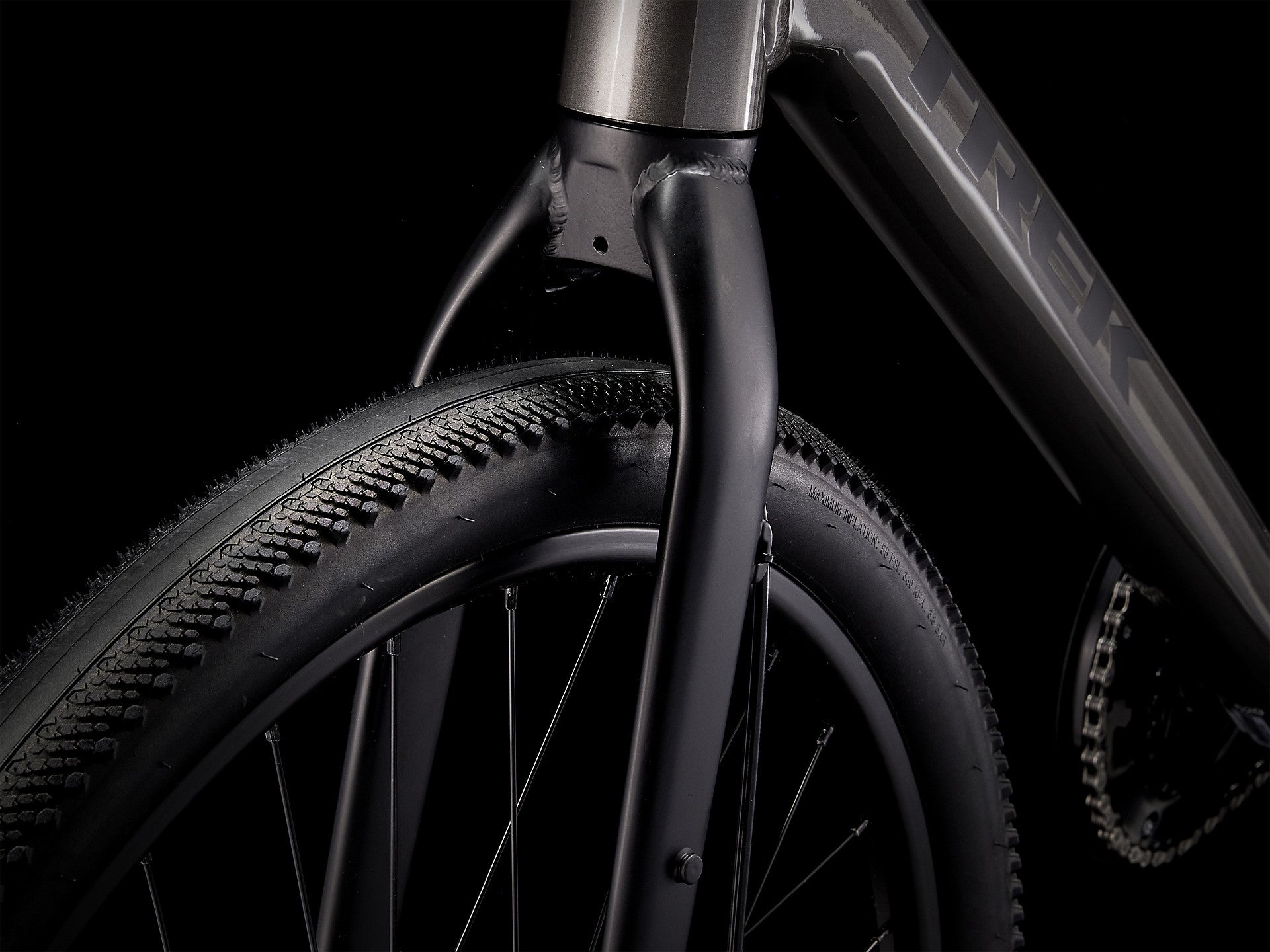

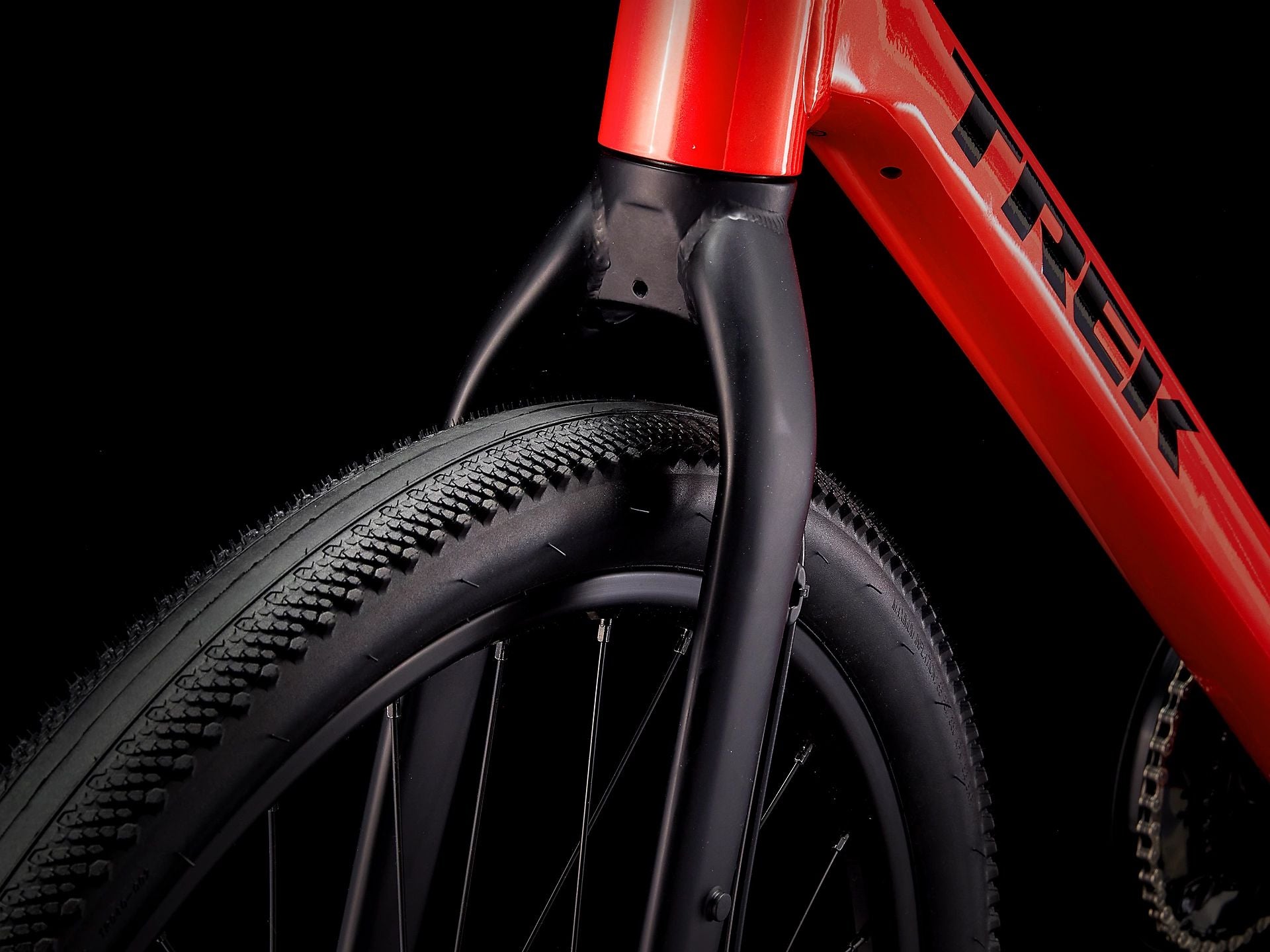

Fork Dual Sport steel, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Wheels
Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front 139x5 mm bolt-on
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear 152x5 mm QR
Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyre Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm
Max tyre size 27.5x2.00"

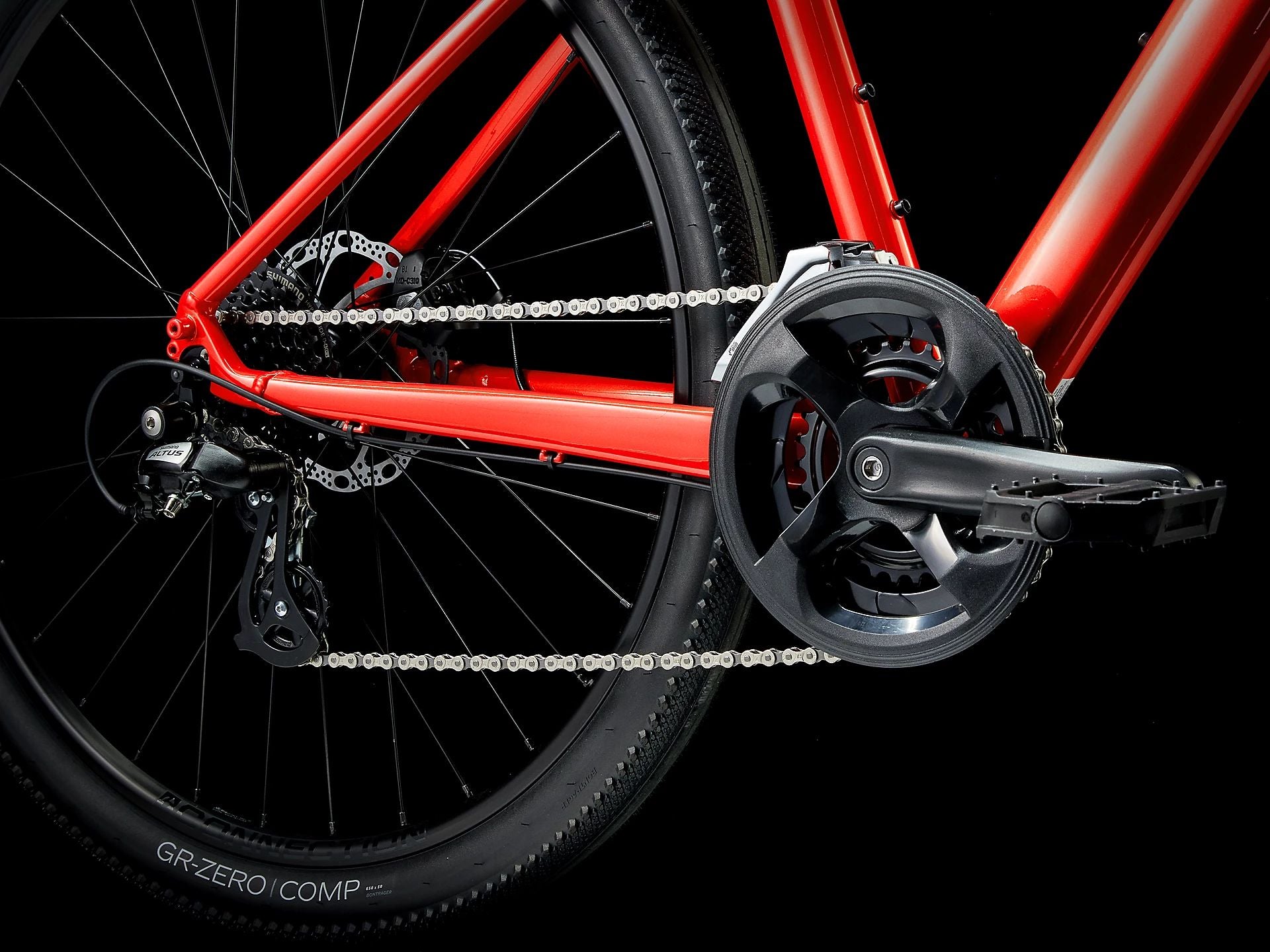

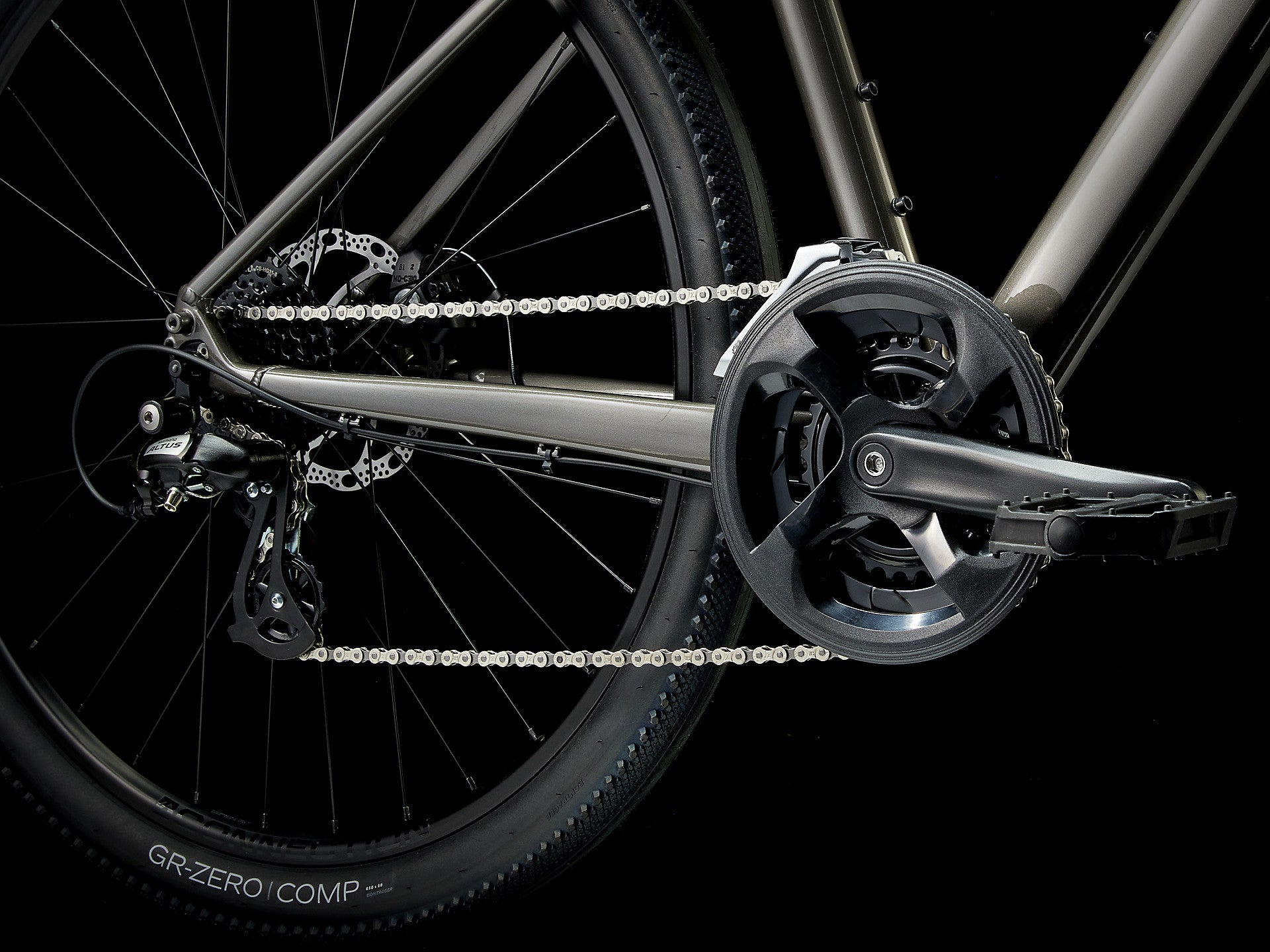

Drivetrain
*Shifter Size: S, M, L, XL
Shimano EF500, 2-speed
Size: S, M, L, XL
Shimano EF500, 8-speed
Front derailleur Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull
Rear derailleur Shimano Altus M310
Crank Forged alloy, 46/30, chainguard, 170 mm length
Bottom bracket Sealed cartridge, 68 mm
Cassette Shimano HG31, 11-32, 8-speed
Chain KMC Z8.3
Pedal Wellgo nylon platform
Max. chainring size 1x: 42T, 2x/3x: 48T
Components
Saddle Bontrager Sport
Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

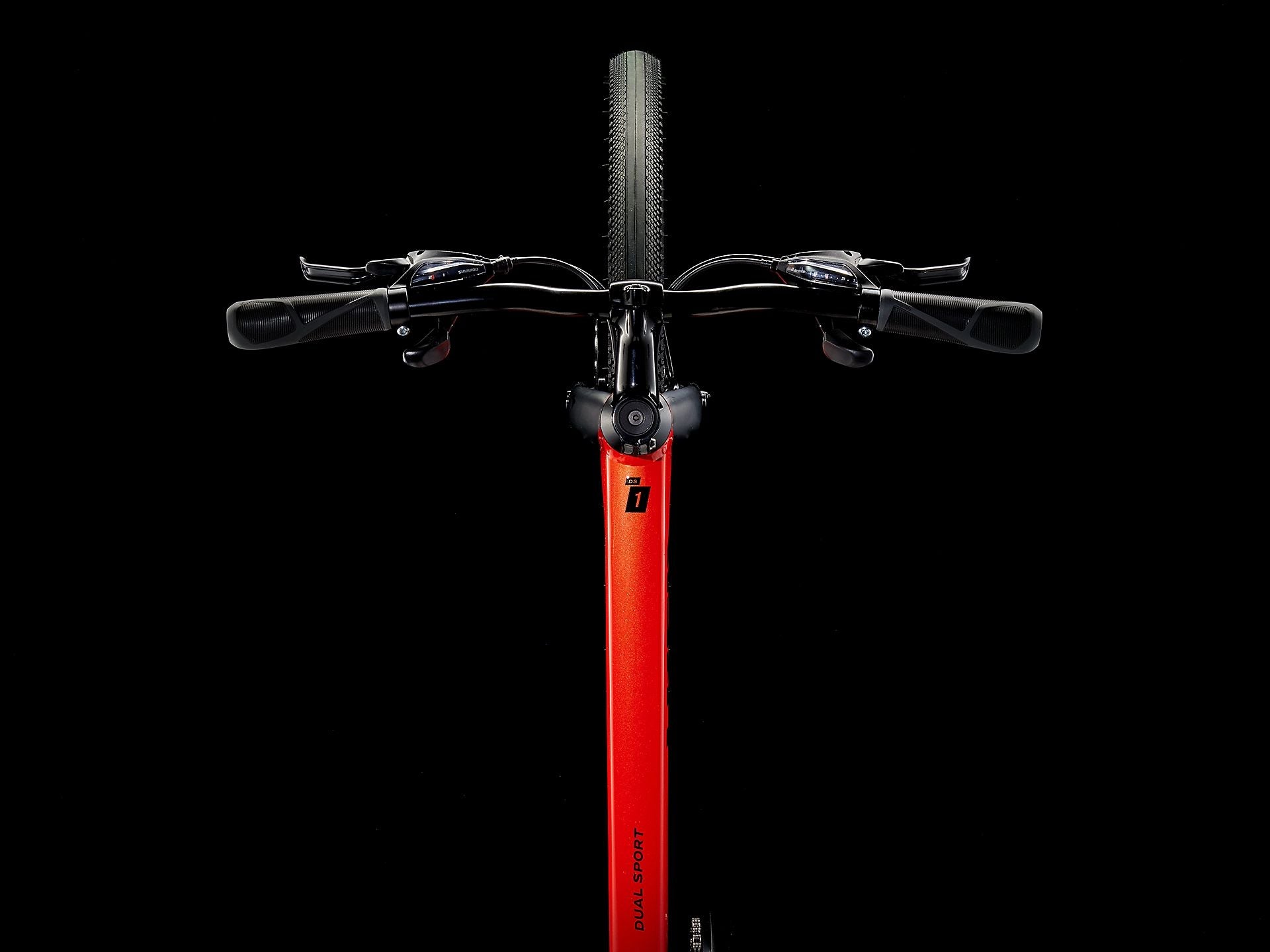

*Handlebar Size: S, M
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Size: L, XL
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width
Grips Bontrager Satellite

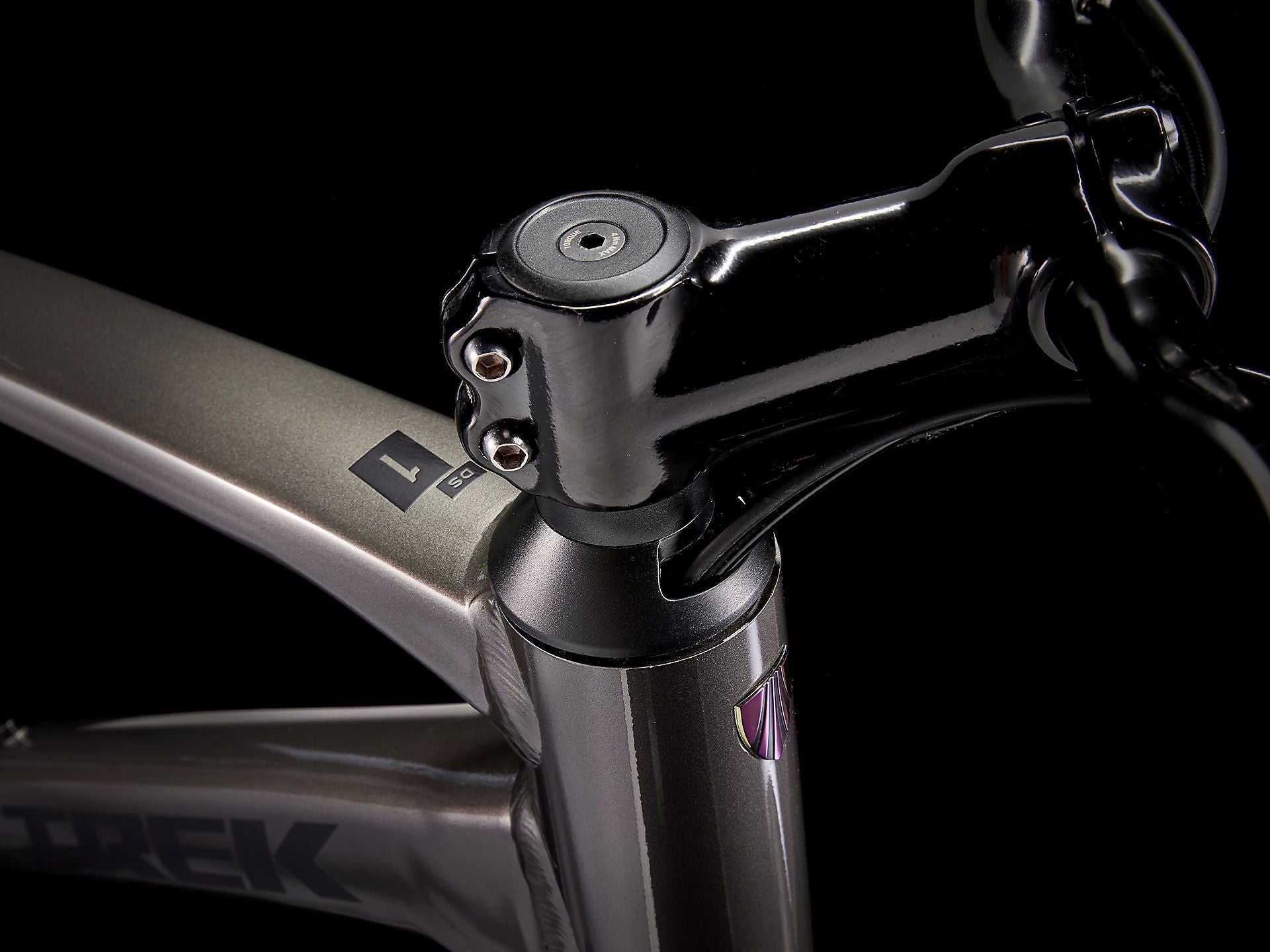

*Stem Size: S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Size: L, XL
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Brake Tektro MD-U310 mechanical disc, flat-mount, 160 mm rotor
Rotor size Max brake rotor sizes: 160mm front & rear
Weight
Weight M - 13.88 kg / 30.61 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
XS

147 - 155 cm

4'10" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

72 - 78 cm

28" - 31"

M

165 - 175 cm

5'5" - 5'9"

77 - 83 cm

30" - 33"

L

175 - 186 cm

5'9" - 6'1"

82 - 88 cm

32" - 35"

XL

186 - 197 cm

6'1" - 6'6"

87 - 93 cm

34" - 37"

Geometry

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
S 27.5" 37.5 73.8° 14.0 69.8° 54.5 28.9 6.0 44.7 3.9 8.7 105.2 72.3 37.8 57.3
M 27.5" 42.0 73.3° 16.5 70.3° 56.5 28.9 6.0 44.7 3.9 8.3 106.3 76.1 38.5 59.8
L 27.5" 46.5 72.8° 19.0 70.8° 58.5 28.9 6.0 44.7 3.9 8.0 107.2 80.0 39.1 62.4
XL 27.5" 52.0 71.8° 21.5 71.8° 61.5 28.9 6.0 44.7 3.9 7.4 107.9 84.3 40.1 65.2
