Trek

Trek Fuel EX 8 XT Gen 6 2023

$5,499.99
$5,499.99
$5,499.99
Tax included.
If what you're looking for is unavailable call our store 1300 436 379
All bikes need to be COLLECTED IN STORE or delivered locally by Hendry's.
Due to our dealer agreements and manufacturer guidelines, all bikes sold from Hendry's must be fully assembled, and inspected to conform with warranty requirements which prohibits shipping.
Color: Galactic Grey to Black Fade
Size:

The Fuel EX 8 is a dialled trail bike for riders who chase down rowdy descents and want a bike that's happy to pedal back to the top and do it again. It has a stout alloy frame and an upgraded Shimano XT drivetrain for smooth precise shifting. The 150 mm Fox Rhythm fork makes easy work of rocks and roots while the Fox Float X shock keeps you in control. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model, but without the lofty price tag.

Overview

Specifications

Sizing

Overview

It's right for you if...

You want a full-suspension trail bike that prioritises suspension and shifting performance over a more expensive carbon frame.


The tech you get

A light and stiff alloy frame with 150 mm FOX Rhythm fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. A Shimano XT 12-speed drivetrain for snappy shifting, and tubeless-ready Bontrager wheels. Plus, new adjustable geometry that lets you take control of your set-up.


The final word

For the rider who doesn't want to be limited on the trail, the Fuel EX 8 is ready to handle everything. Its progressive trail geometry is built to keep you charging, and upgraded components are the cherry on top.


Why you'll love it
  • This bike is built to take on the singletrack, with modern geometry that's evolved to handle the rough and rowdy
  • You'll get upgraded components where it matters most, with 12-speed XT shifting and a rock-gobbling FOX Rhythm 36 fork

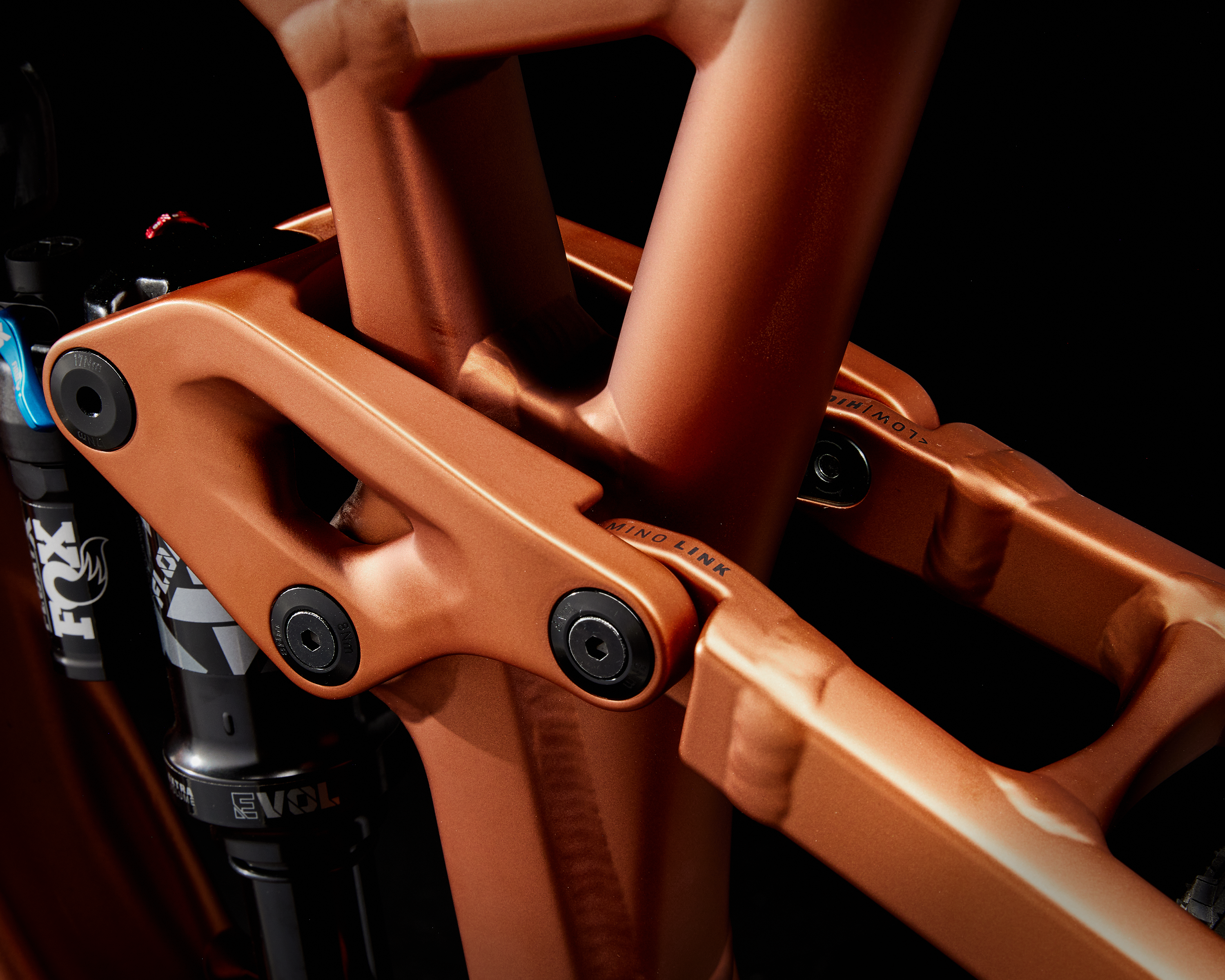

  • With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
  • We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
  • Guided internal routing, universal derailleur hanger, improved hardware and a threaded BB make maintenance a breeze

Specifications

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
*Fork Size: XS , S
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
Size: S , M , ML , L , XL , XXL
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
Shock Fox Performance Float X, 2-position damper, 185 mm x 55 mm
Max compatible fork travel 160mm
Wheels
*Wheel front Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
Size: S , M , ML , L , XL , XXL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
*Wheel rear Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Size: S , M , ML , L , XL , XXL
Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29"
Skewer rear Bontrager Switch thru-axle, removable lever
*Tyre Size: XS , S
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50"
Size: S , M , ML , L , XL , XXL
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
Drivetrain
Shifter Shimano XT M8100, 12-speed
Rear derailleur Shimano XT M8100, long cage
Crank Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom bracket Shimano BB-MT501 BSA
Cassette Shimano XT M8100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Max. chainring size 1x: 34T round, 32T oval, min 28T
Components
Saddle Bontrager Arvada, hollow chromoly rails, 138 mm width
*Seatpost Size: XS , S
TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size: M , ML
TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size: L , XL , XXL
TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
*Handlebar Size: XS , S
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Size: M , ML , L , XL , XXL
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips Bontrager XR Trail Elite, nylon lock-on
*Stem Size: XS , S
Bontrager Elite, 35 mm, 0-degree, 35 mm length
Size: M , ML , L , XL , XXL
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Head set Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible

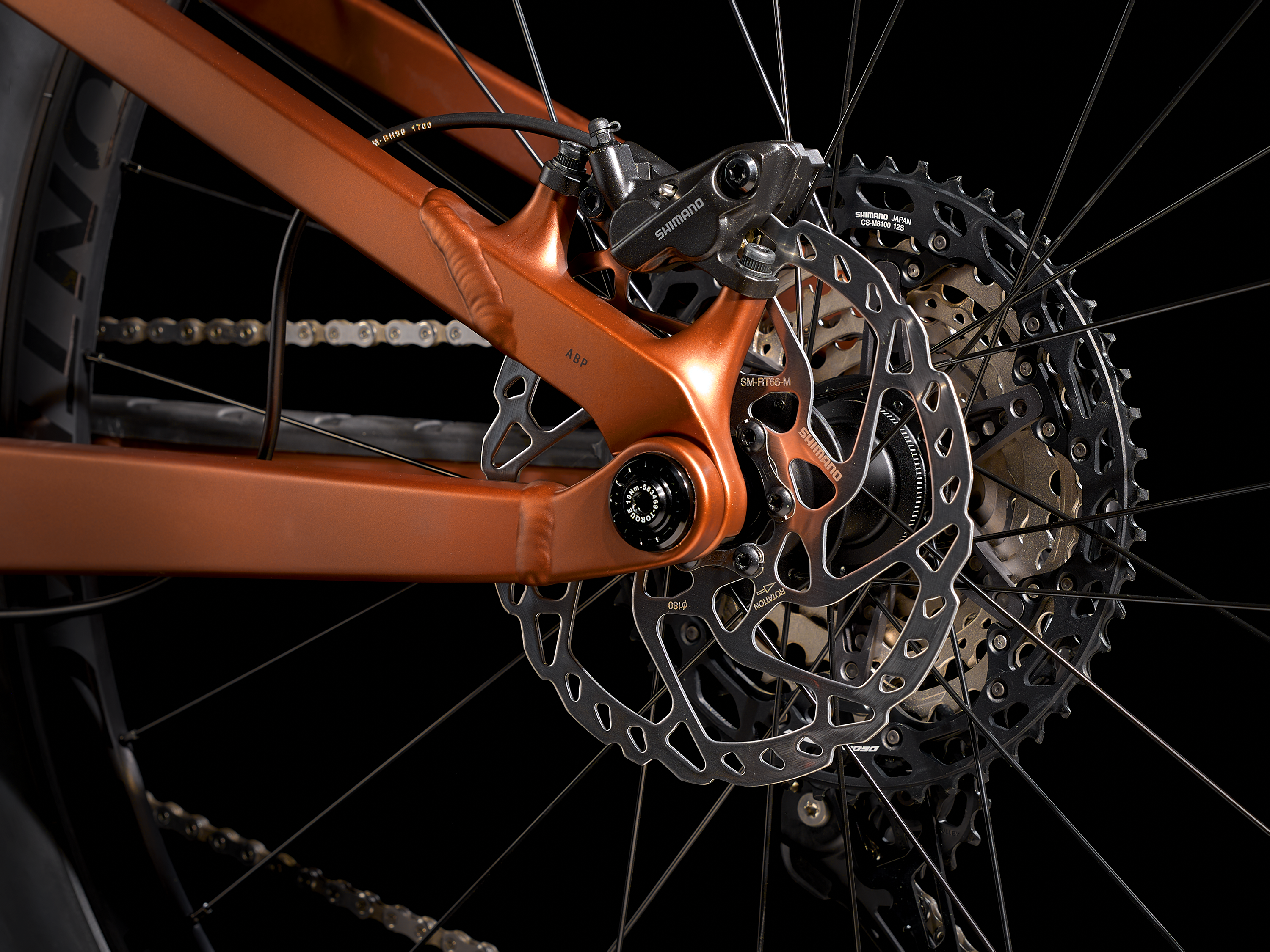

Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
*Brake rotor Size: XS , S , M , ML , L , XL , XXL
Shimano RT66, 6-bolt, 180 mm
Size: XS , S , M , ML , L , XL , XXL
Shimano RT66, 6-bolt, 203 mm
Rotor size Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Accessories

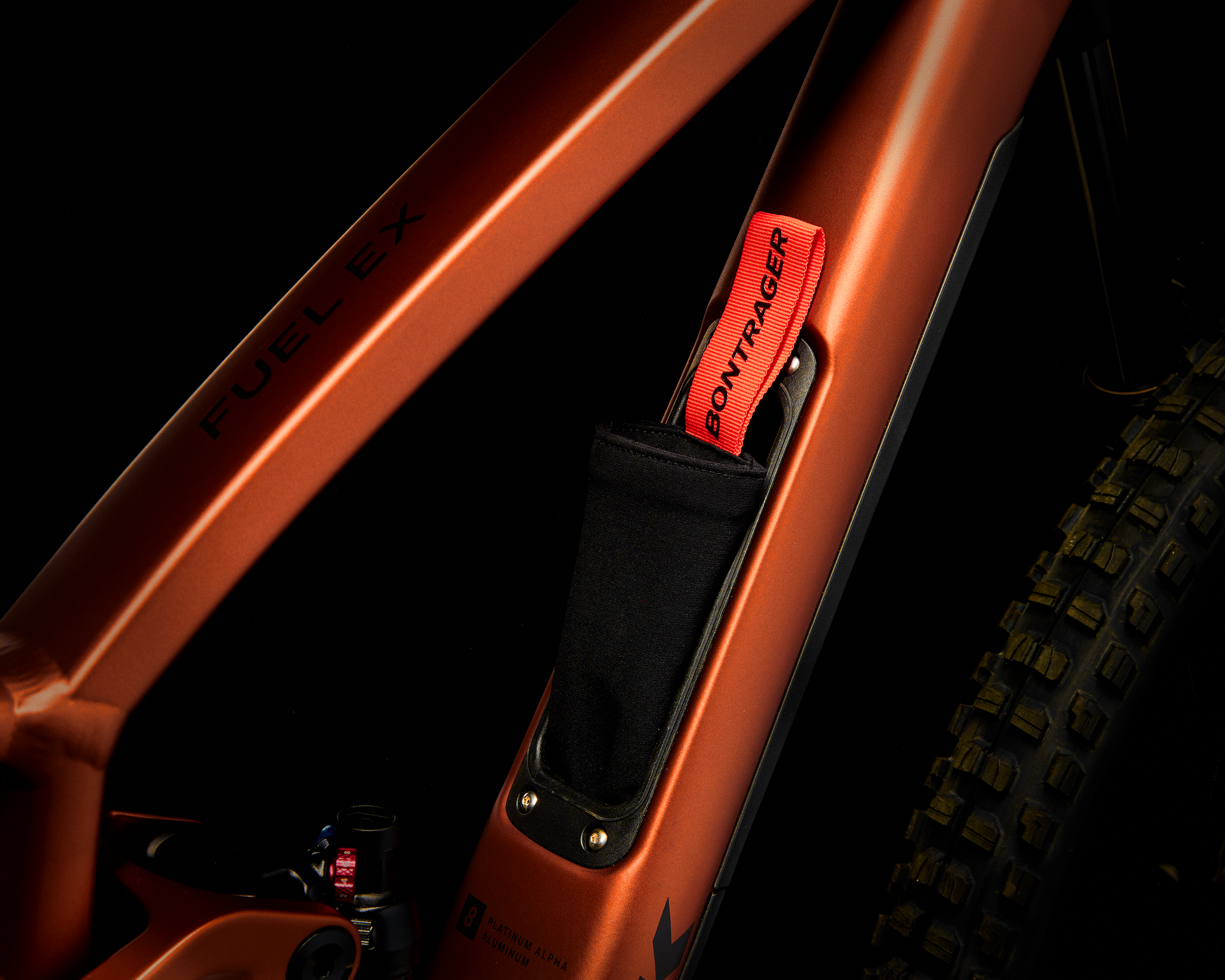

Bag Bontrager BITS Internal Frame Storage Bag
Weight
Weight M – 15.65 kg/34.51 lb (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
XS

145 - 155 cm

4'9" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

2XL

195 - 203 cm

6'5" - 6'8"

91 - 97 cm

36" - 38"
