Trek

Trek FX+ 2 Stagger E-Bike

$2,999.99
$2,999.99
$3,599.99
Tax included.
If what you're looking for is unavailable call our store 1300 436 379
All bikes need to be COLLECTED IN STORE or delivered locally by Hendry's.
Due to our dealer agreements and manufacturer guidelines, all bikes sold from Hendry's must be fully assembled, and inspected to conform with warranty requirements which prohibits shipping.
Color: Satin Trek Black
Size:

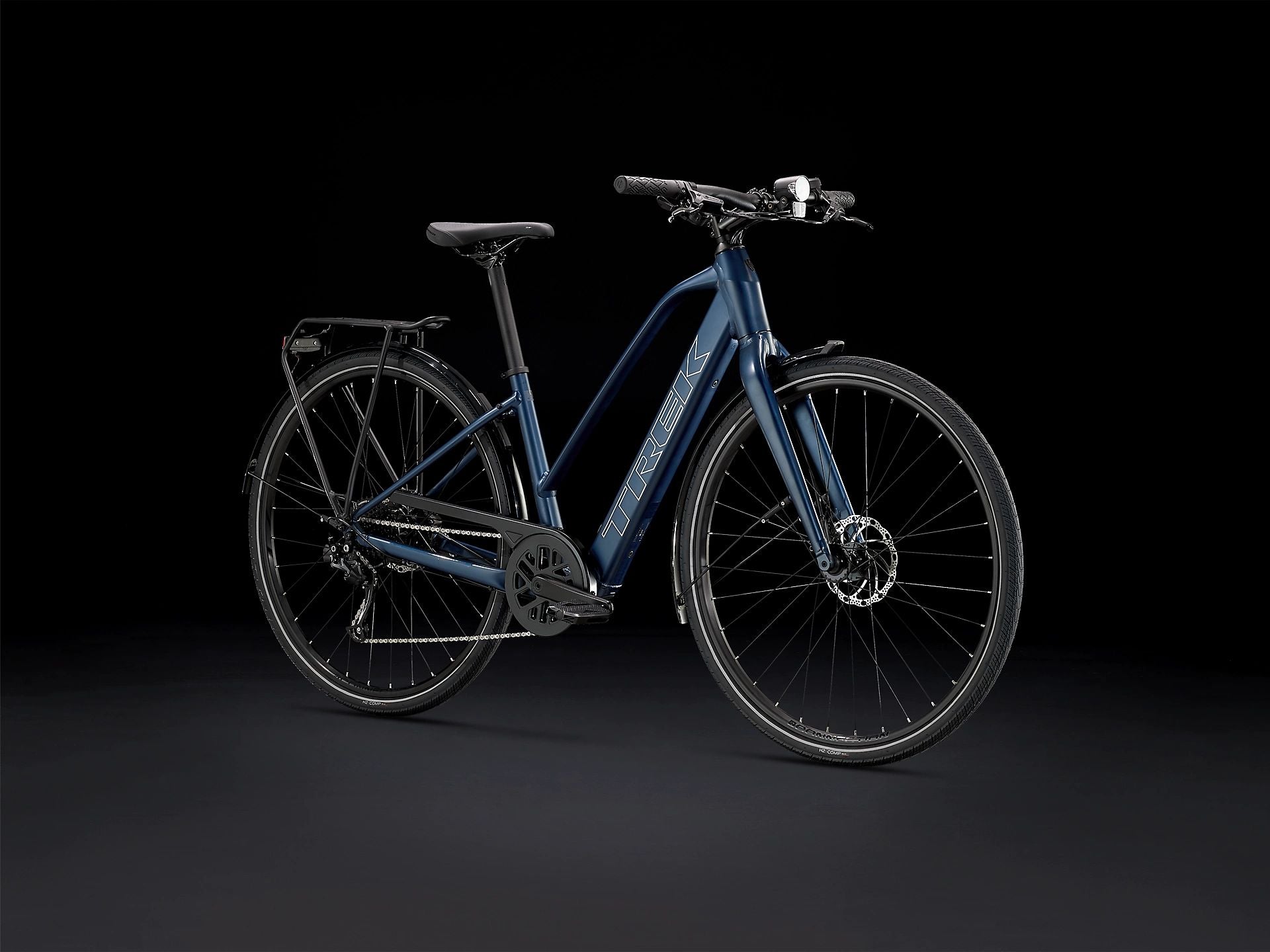

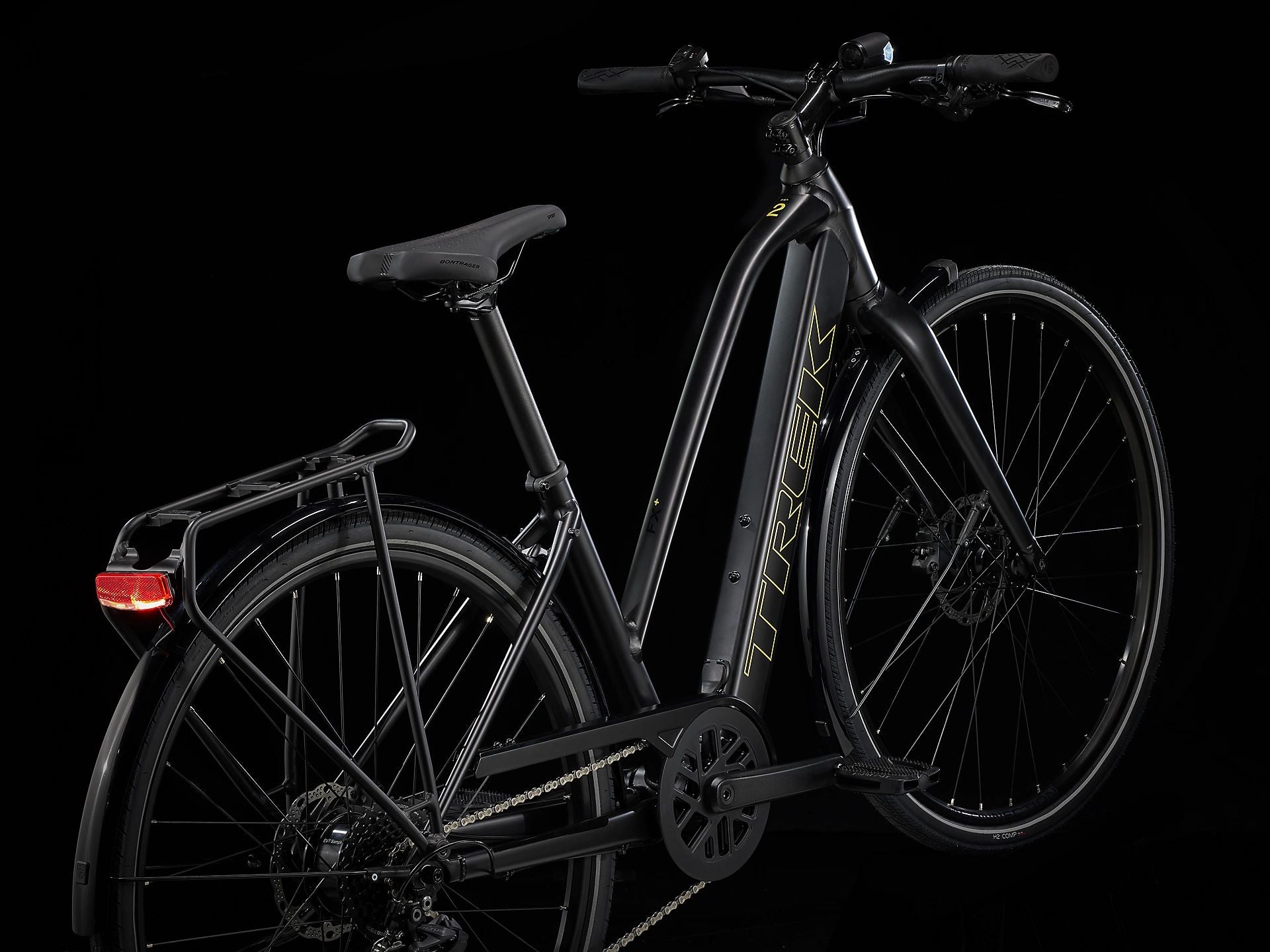

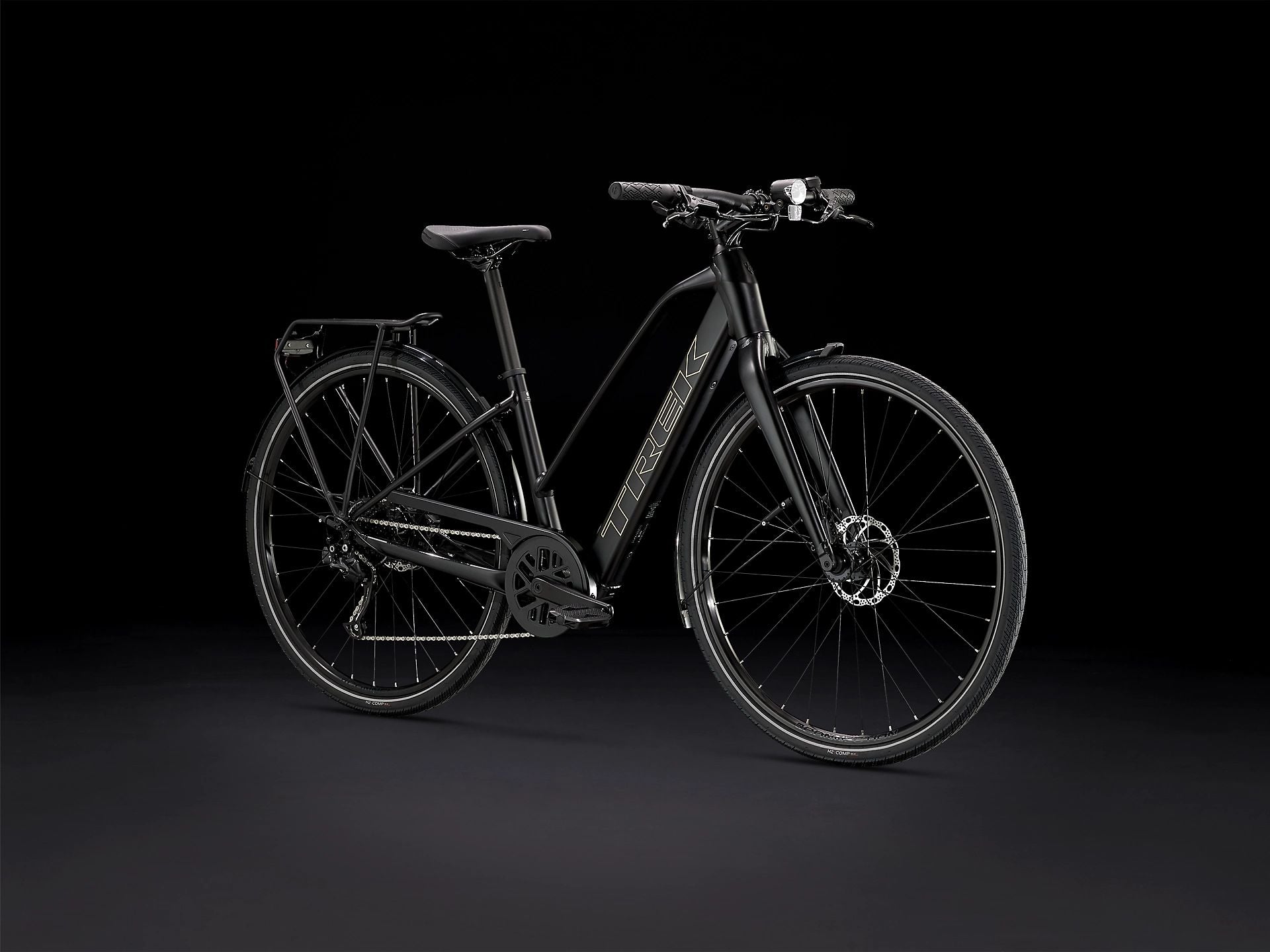

The FX+ 2 Stagger is a lightweight city electric bike that’s designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal-assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and mudguards add even more versatility to this bike.

Overview

Specifications

Sizing

Overview

It's right for you if...

You want a lightweight, simple-to-use city e-bike that brings a capable boost to daily errands, commutes and joy rides around your city.

The tech you get

A lightweight aluminium frame with a stagger design that makes it easier to hop on and off, Trek's proprietary pedal-assist system with a hub motor (250 W, 40 Nm) that assists up to 25 km/h and a 250 Wh battery for a range of up to 55 kilometres per charge. Plus, fast 700c wheels, fast-rolling yet stable 40c tyres with reflective sidewalls, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, a MIK-compatible rear rack, mudguards and a kickstand.

The final word

All the versatility and confidence of FX, with an electric boost that helps you do more and go further! The FX+ also comes with ride-ready accessories like a rack and mudguards that make it easier to commute and run errands.


Why you'll love it

  1. This is our lightest city e-bike, making it easier to manoeuvre while parking and less of a pain to carry up stairs

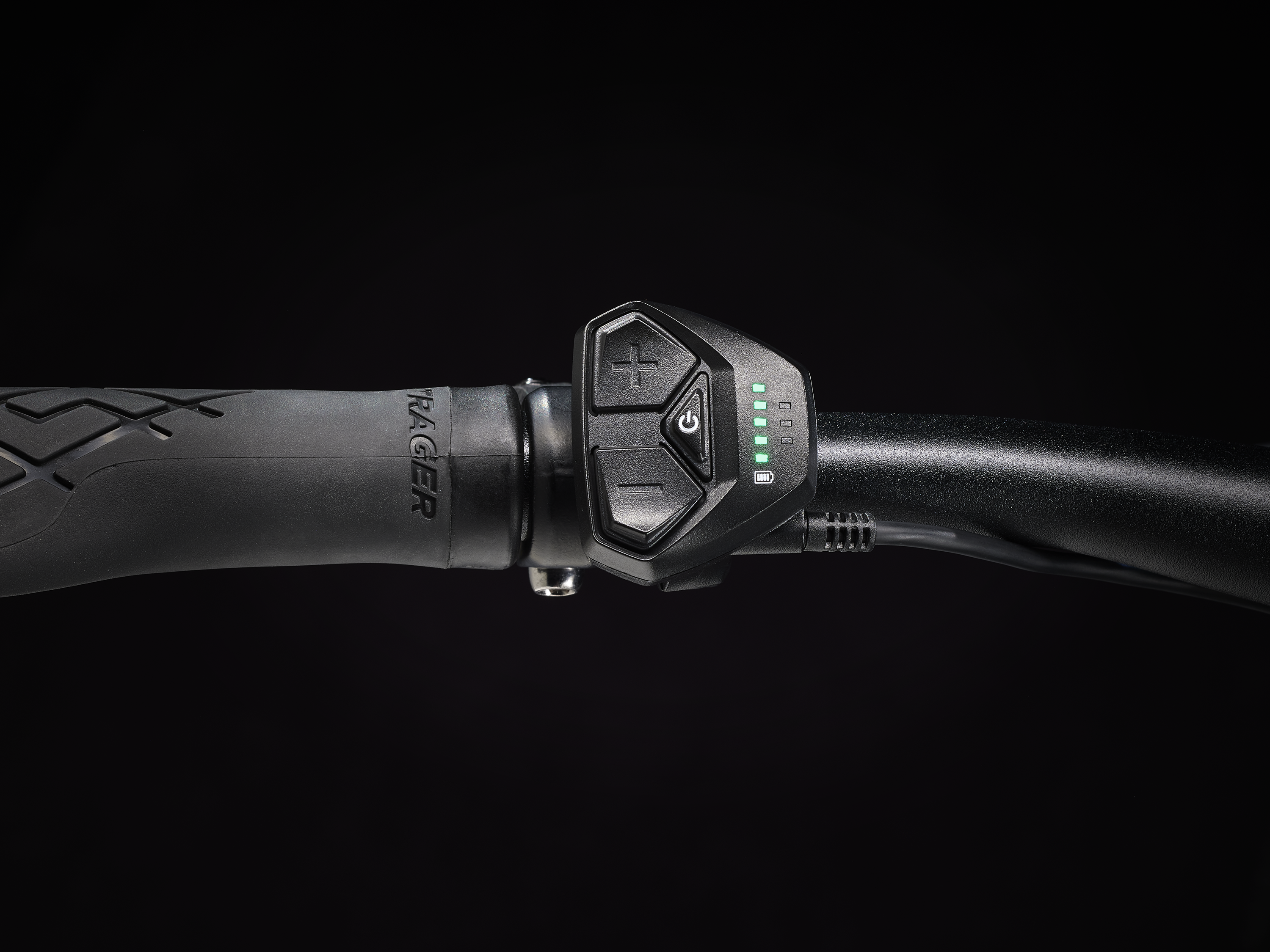

  2. The pedal-assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting

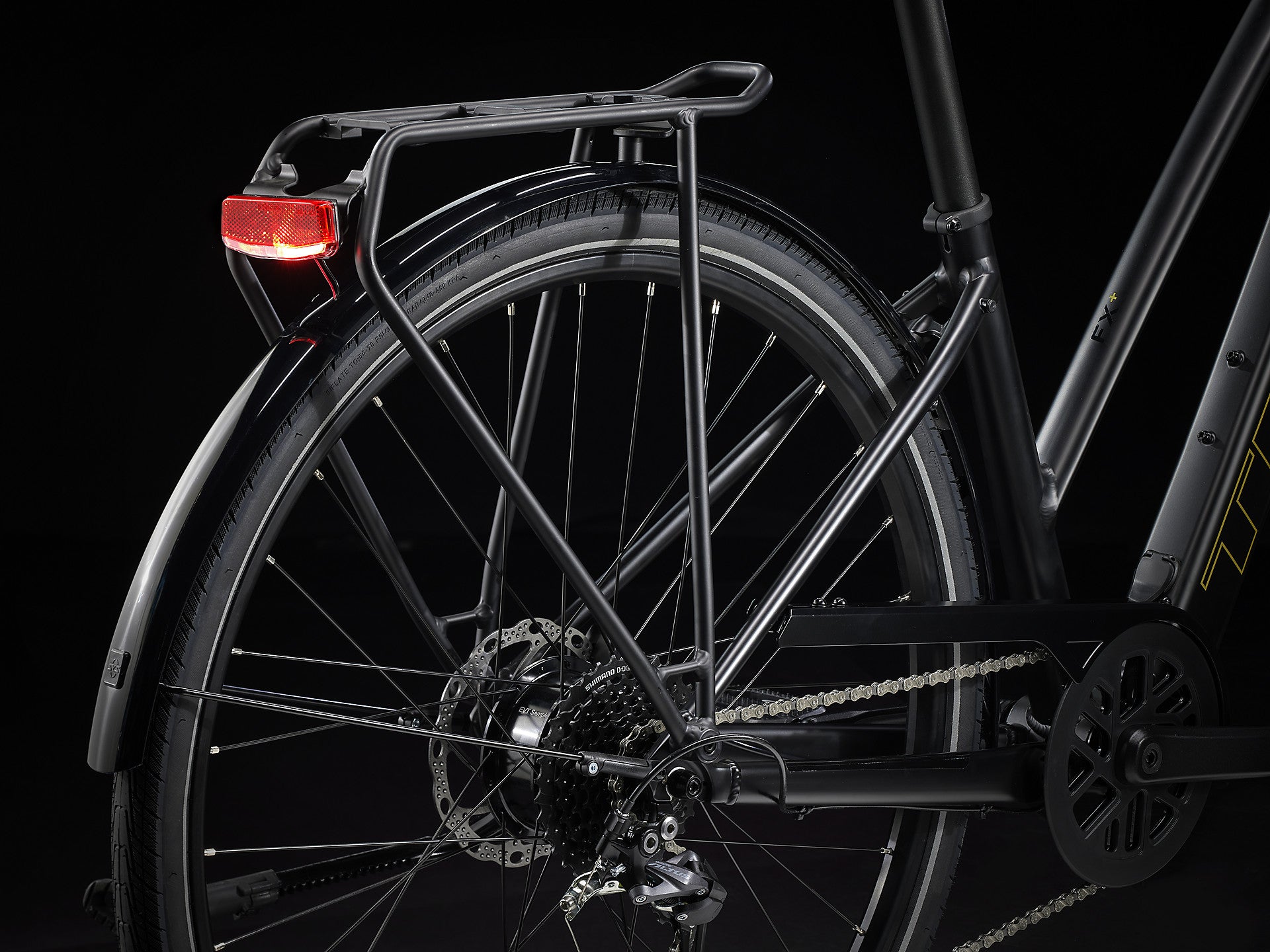

  3. It really is ready to roll, with included accessories like mudguards, lights and a MIK-compatible rear rack

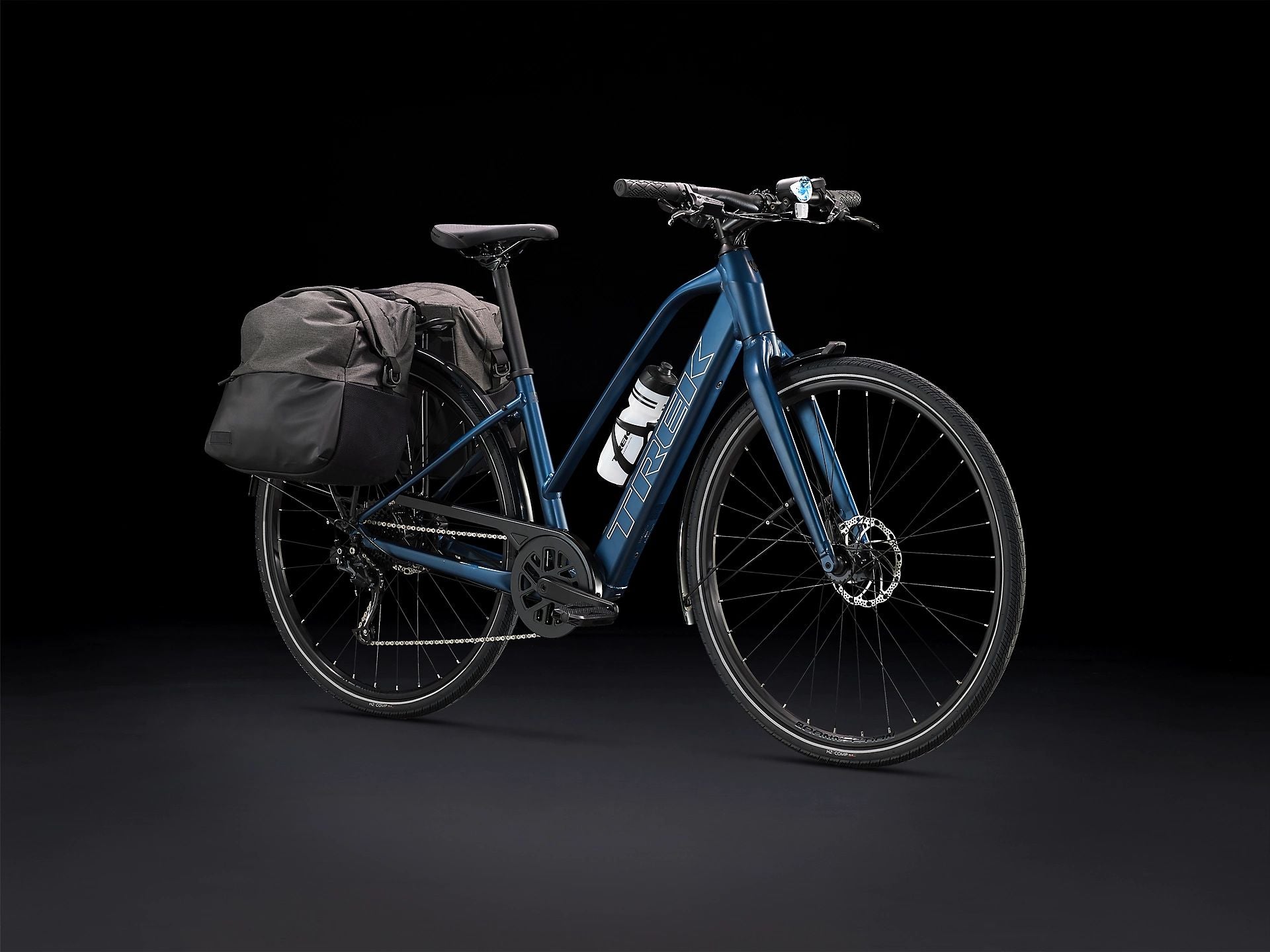

  4. Double your range with a 250 Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame

Specifications

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount
Fork FX+ alloy, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm bolt-on skewer
Wheels
Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front 135x5 mm bolt-on

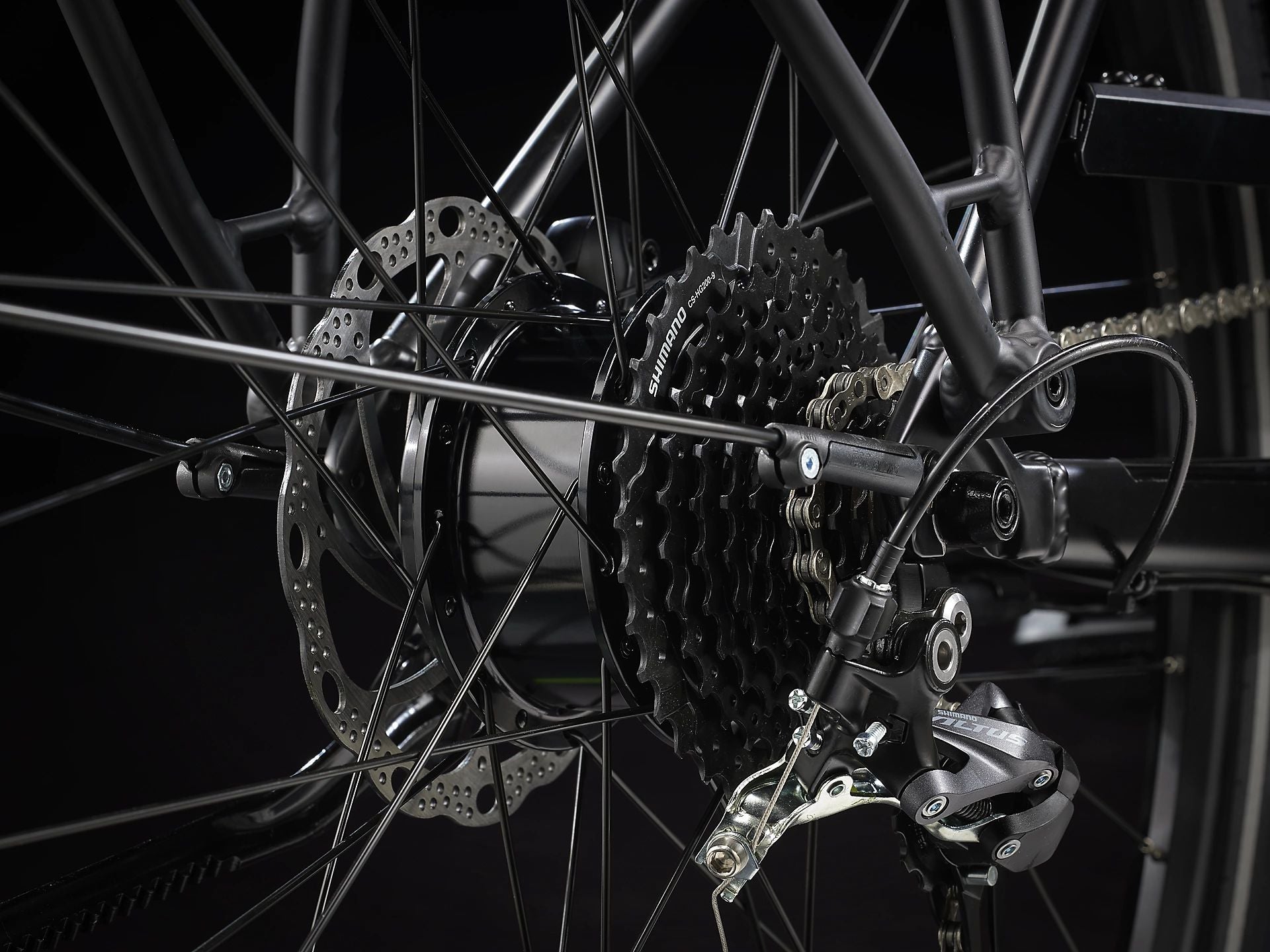

Hub rear Hyena hub drive motor, 40 Nm, 250 W
Rim Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Tyre Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm
Max tyre size 700x50mm without mudguards, 700x45mm with mudguards
E-system

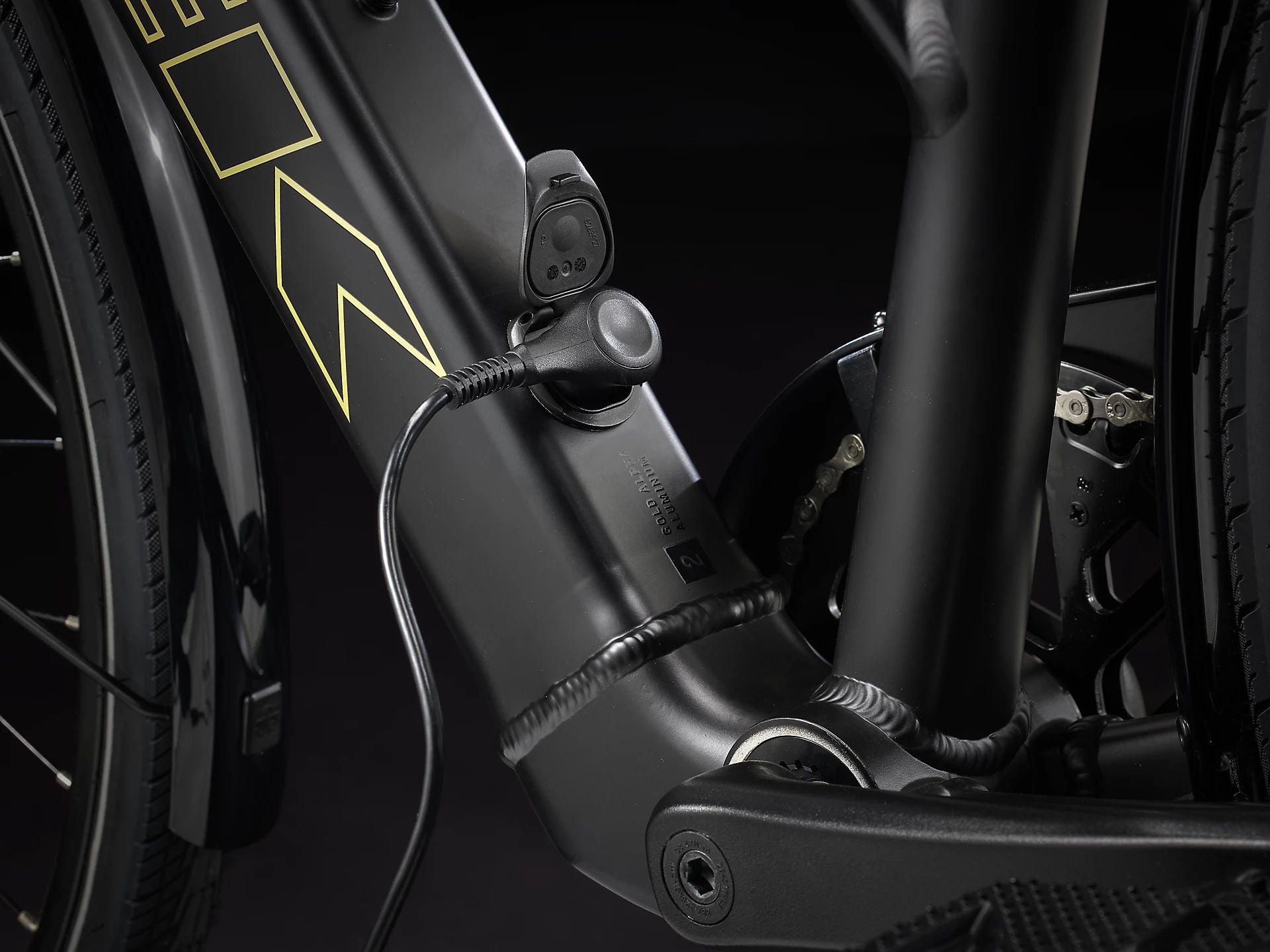

Battery 250 Wh, integrated in down tube
Charger 2A, 42V output, 100V–240V AC input
Computer LED display
Drivetrain
Shifter Shimano Altus M2010, 9-speed
Rear derailleur Shimano Altus M2000, long cage
*Crank Size: S, M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length
Size: L
ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm length
Bottom bracket Torque sensor, threaded, 122.5 mm spindle
Cassette Shimano HG200, 11-36, 9-speed
Chain KMC X9
Pedal Bontrager City pedals
Max. chainring size 1x: 42T
Components
Saddle Bontrager Sport
*Seatpost Size: S, M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: L
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

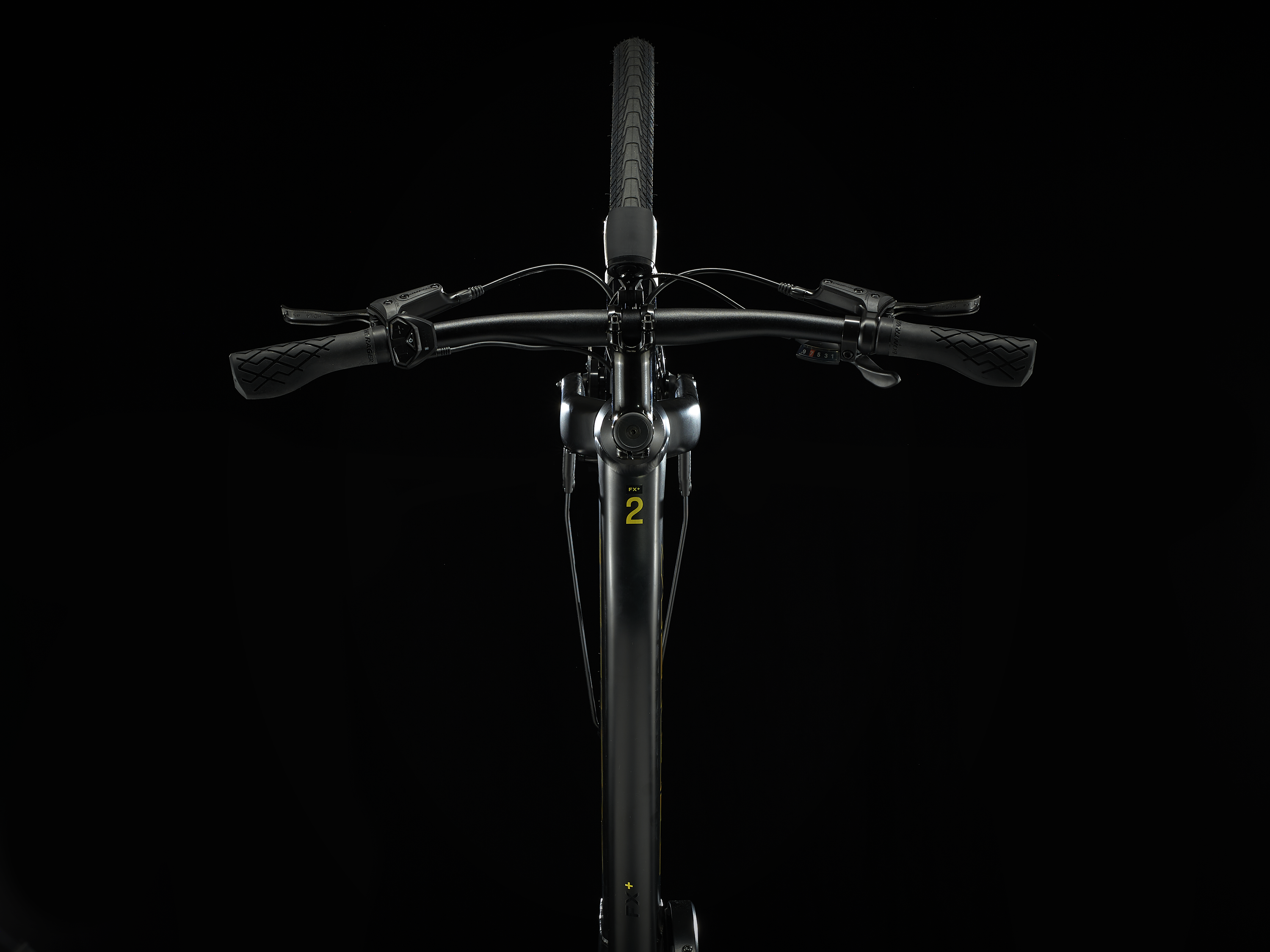

*Handlebar Size: S, M
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Size: L
Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width
Grips Bontrager XR Endurance Comp, lock-on
*Stem Size: S, M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size: L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brake Shimano hydraulic disc, MT200 lever, UR300 calliper
Brake rotor Shimano RT26, 6-bolt,160 mm
Rotor size Max brake rotor sizes: 160mm front & rear
Accessories
*Light Size: S, M, L
Herrmans MR4, 120-lumen LED
Size: S, M, L
Spanninga Solo
Kickstand Alloy, rear mount
*Mudguard Size: S, M, L
SKS plastic, rear
Size: S, M, L
SKS plastic, front
Weight
Weight M - 17.82 kg / 39.29 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

72 - 78 cm

28" - 31"

M

165 - 175 cm

5'5" - 5'9"

77 - 83 cm

30" - 33"

L

175 - 186 cm

5'9" - 6'1"

82 - 88 cm

32" - 35"


Geometry

All measurements provided in cm unless otherwise stated.

Frame size number Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
45cm S 700c 40.8 73.5° 15.5 70.0° 56.9 28.6 7.0 46.8 5.0 7.6 109.2 65.5 38.2 60.4
50cm M 700c 46.3 73.0° 17.0 70.5° 57.4 28.6 7.0 46.8 5.0 7.3 109.5 67.2 38.5 62.0
55cm L 700c 50.7 73.0° 20.0 71.0° 59.2 28.6 7.0 46.8 5.0 6.9 110.9 69.3 39.3 65.0
