Trek Madone SL 7 Gen 8 2025

$8,499.99
$8,499.99
$8,499.99
Tax included.
If what you're looking for is unavailable call our store 1300 436 379
All bikes need to be COLLECTED IN STORE or delivered locally by Hendry's.
Due to our dealer agreements and manufacturer guidelines, all bikes sold from Hendry's must be fully assembled, and inspected to conform with warranty requirements which prohibits shipping.

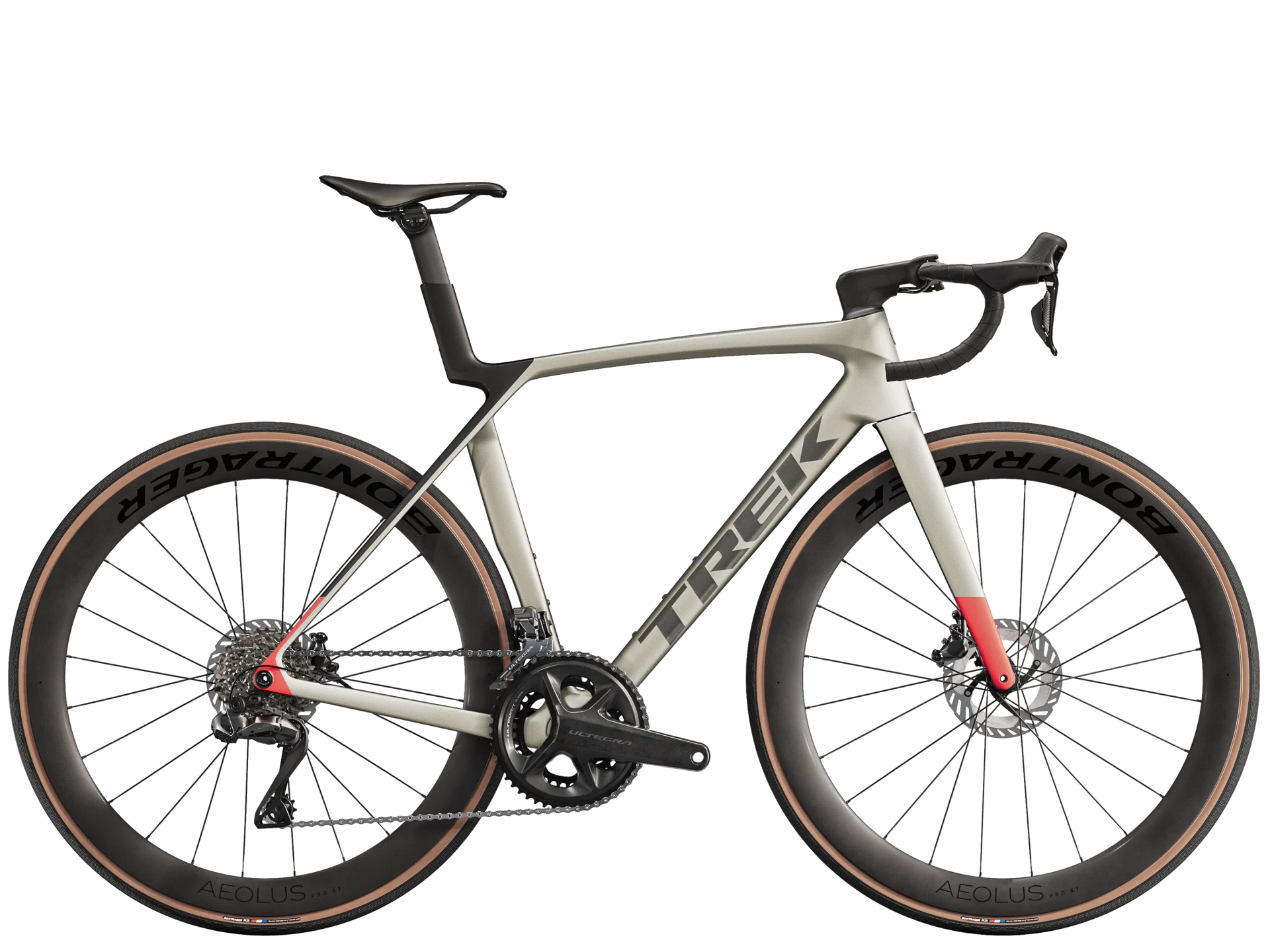

Color: Matte Lunar Silver
Size:

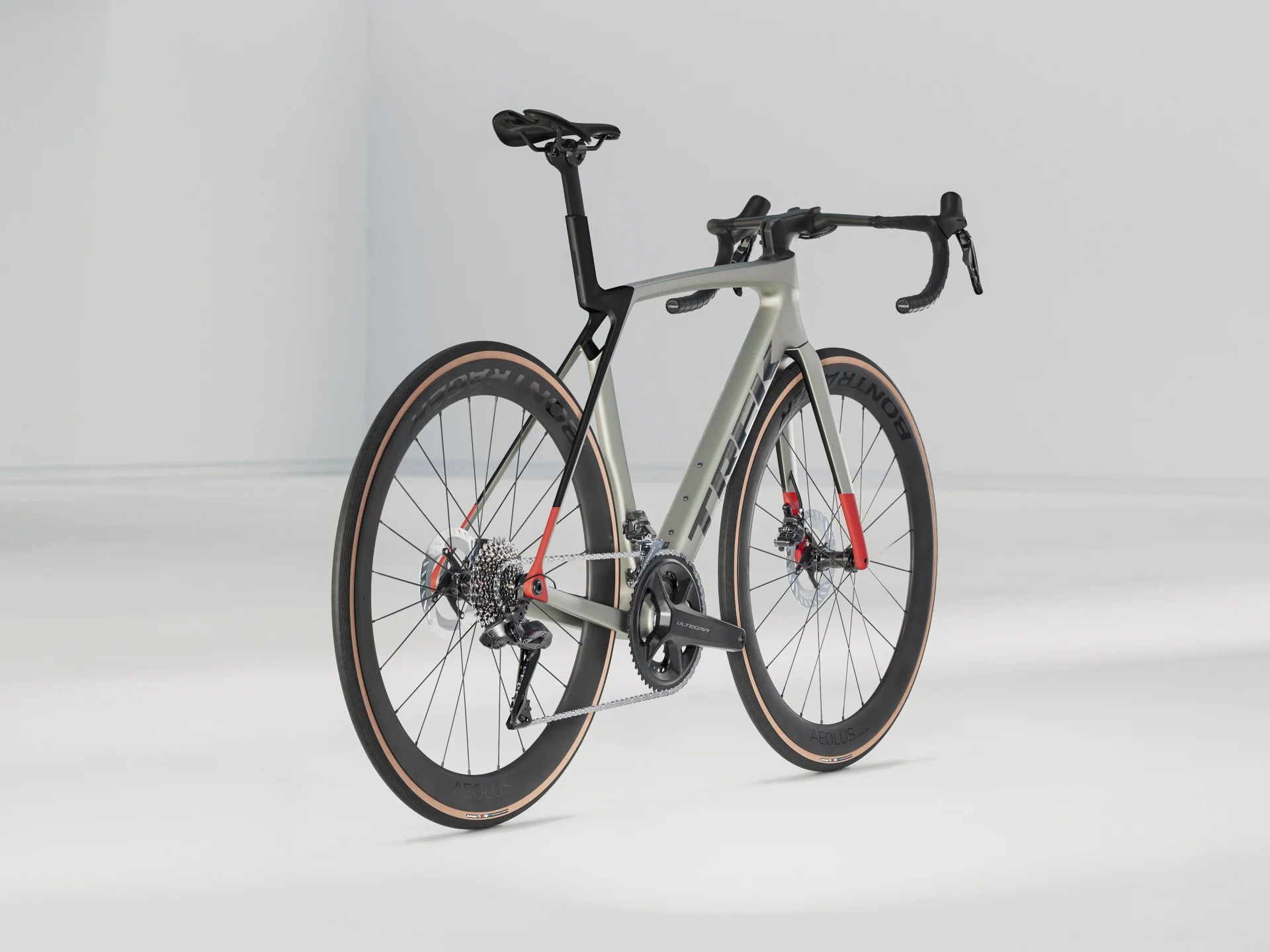

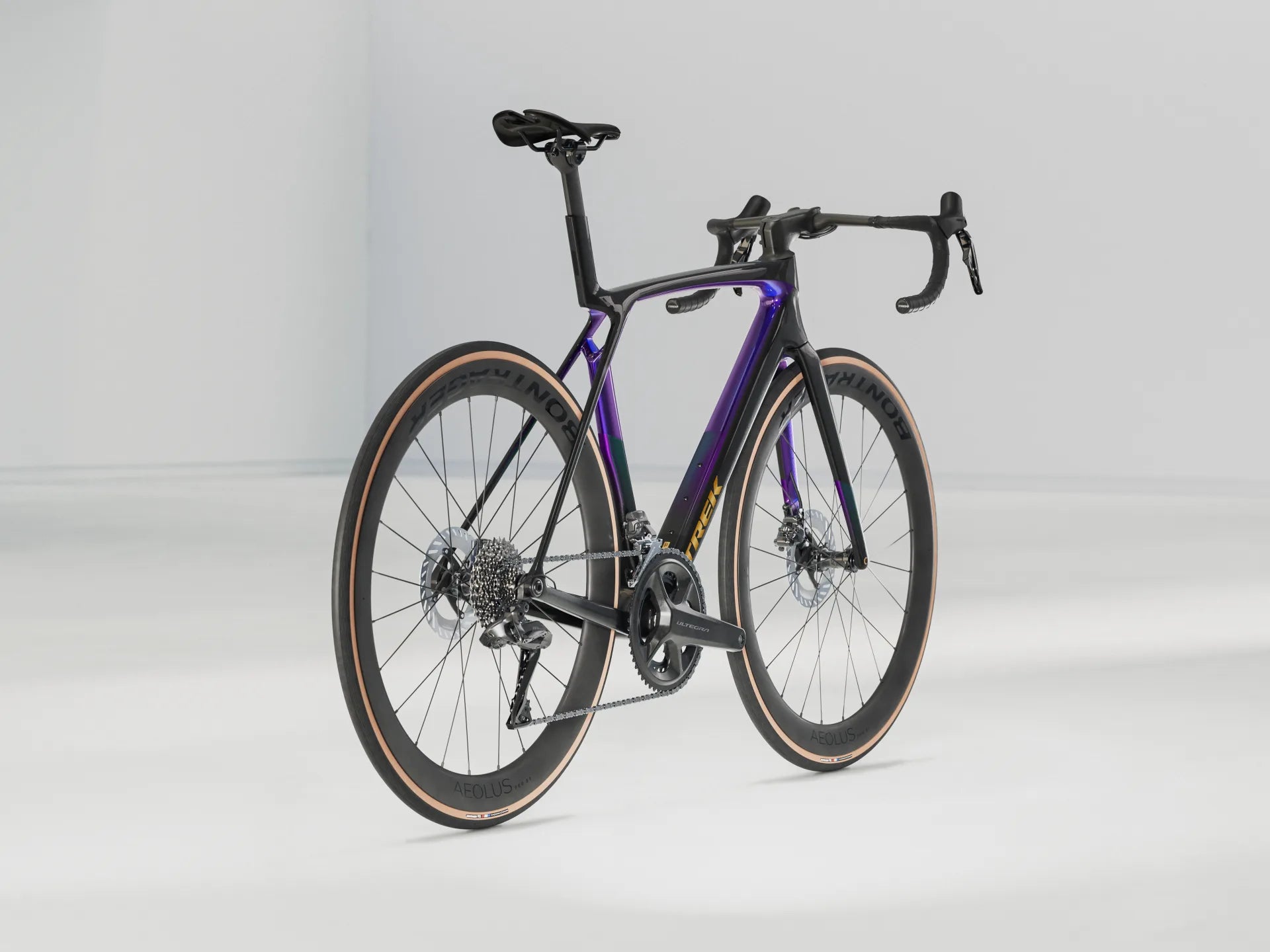

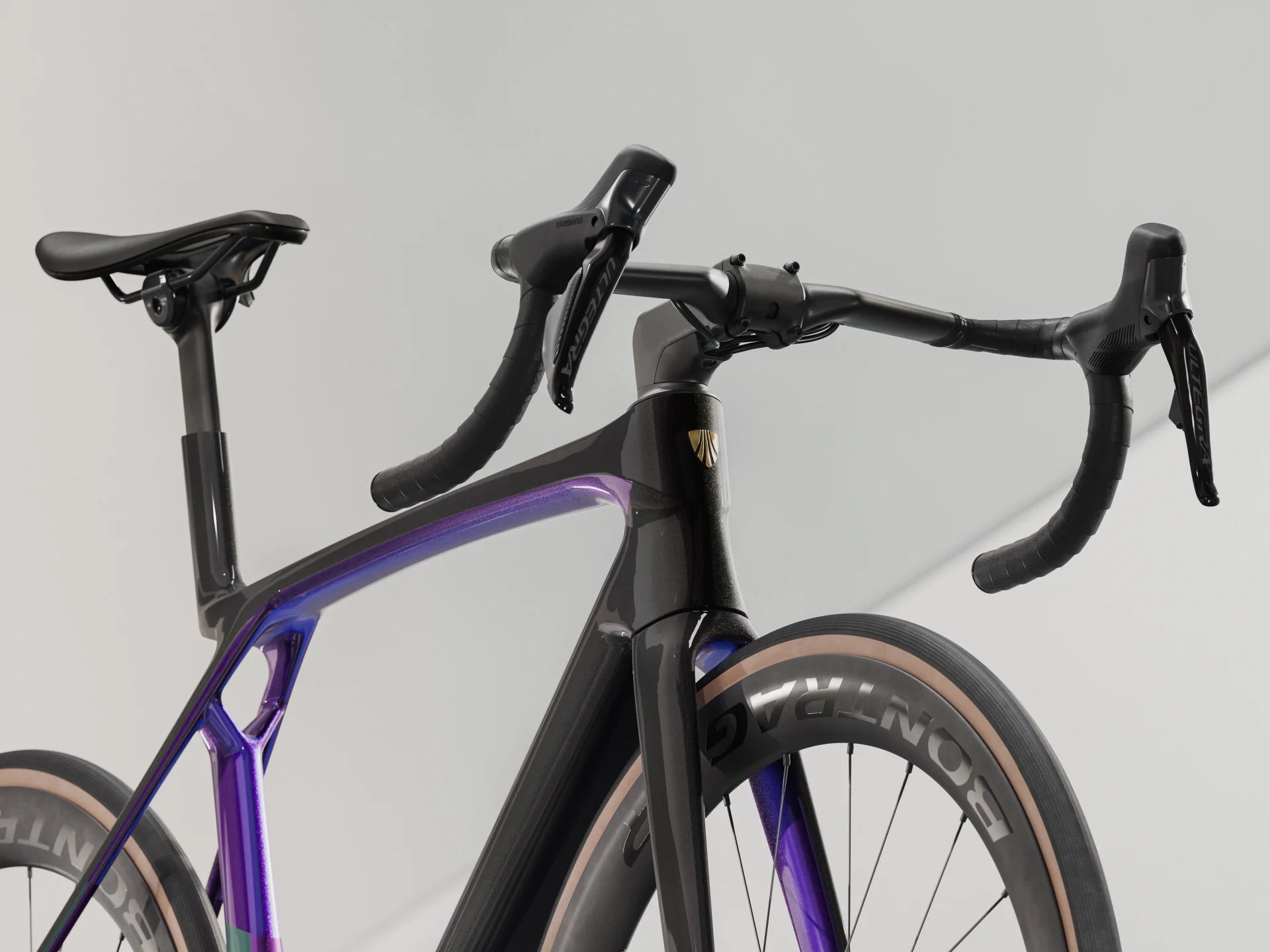

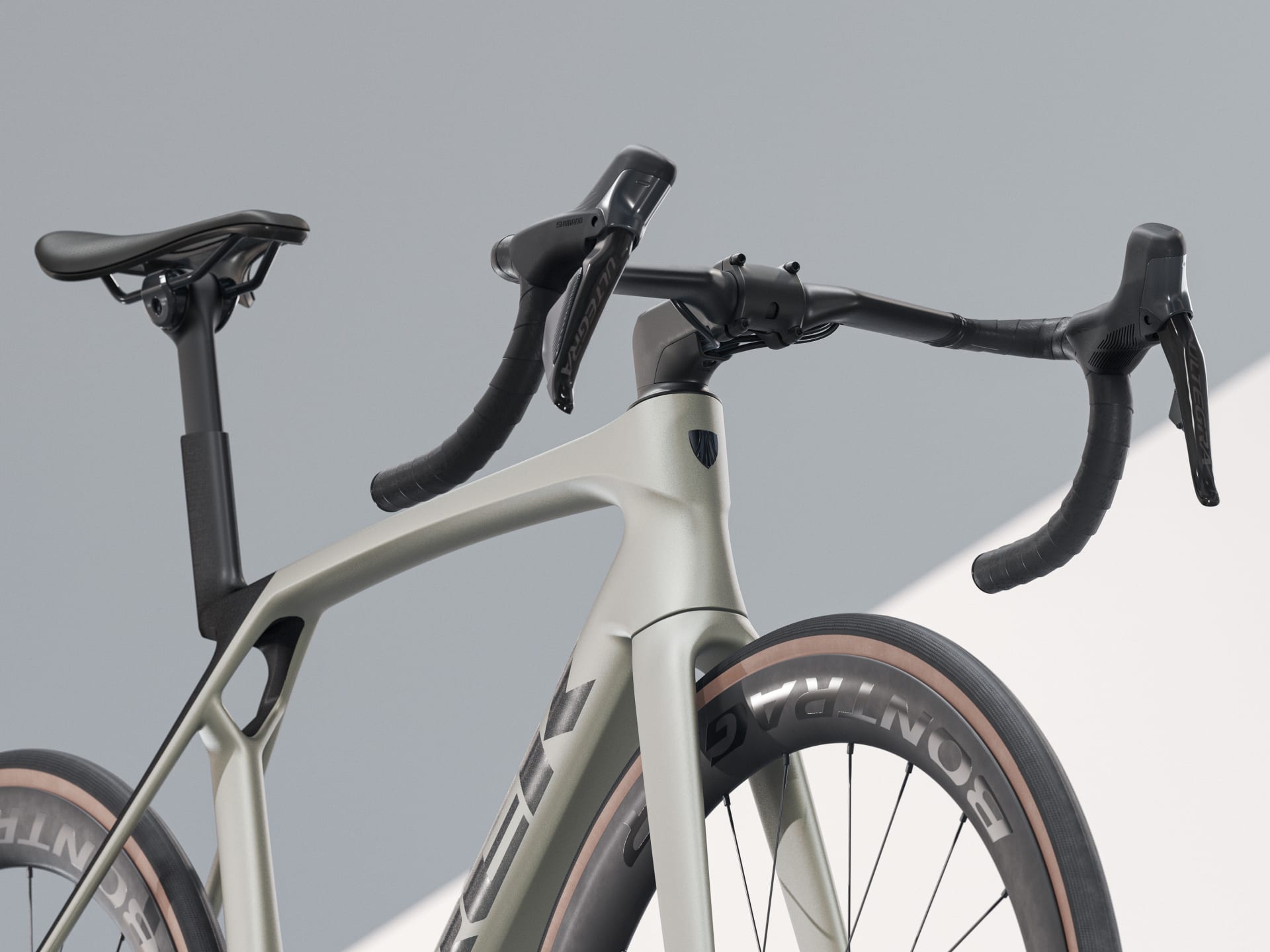

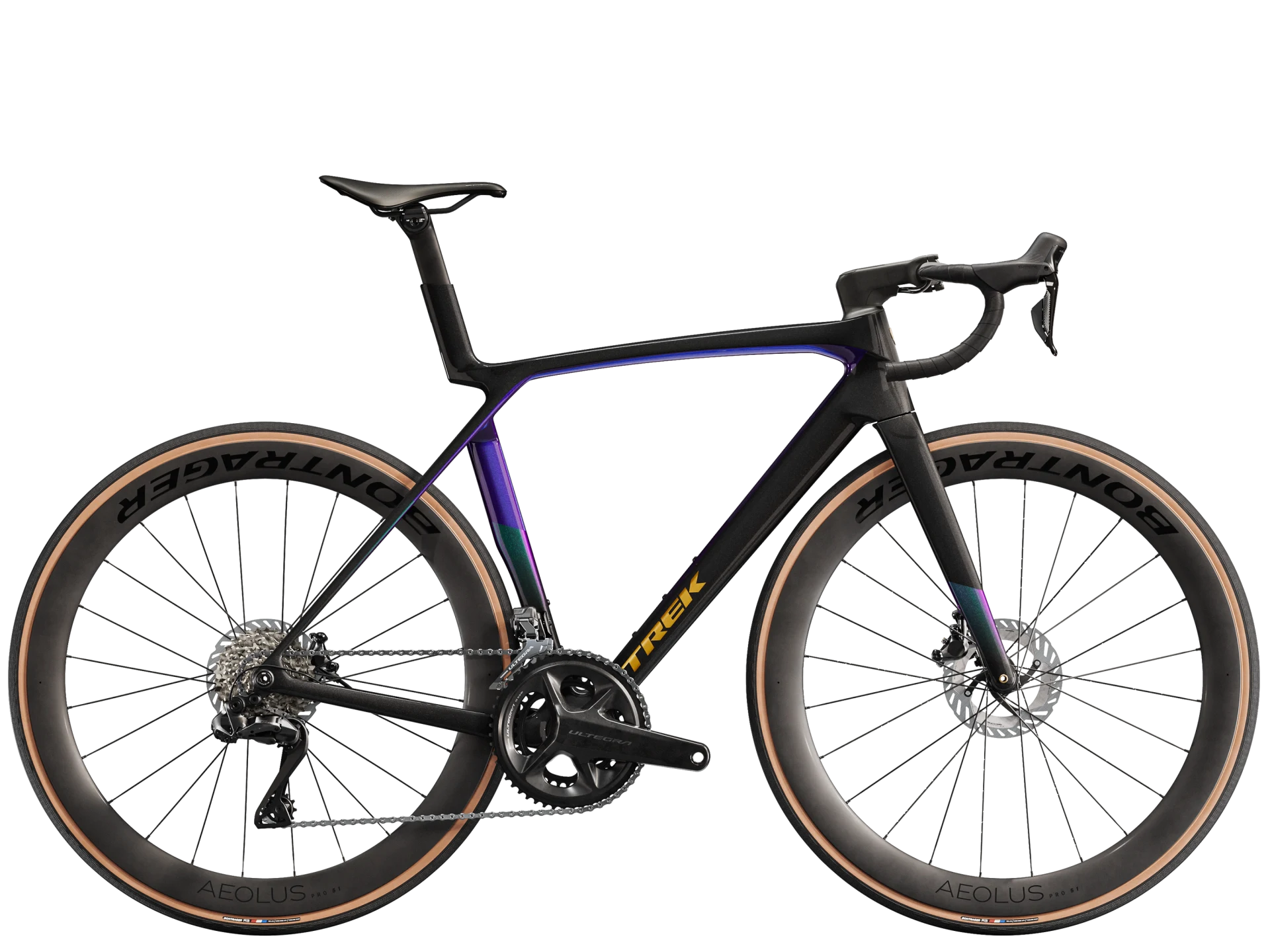

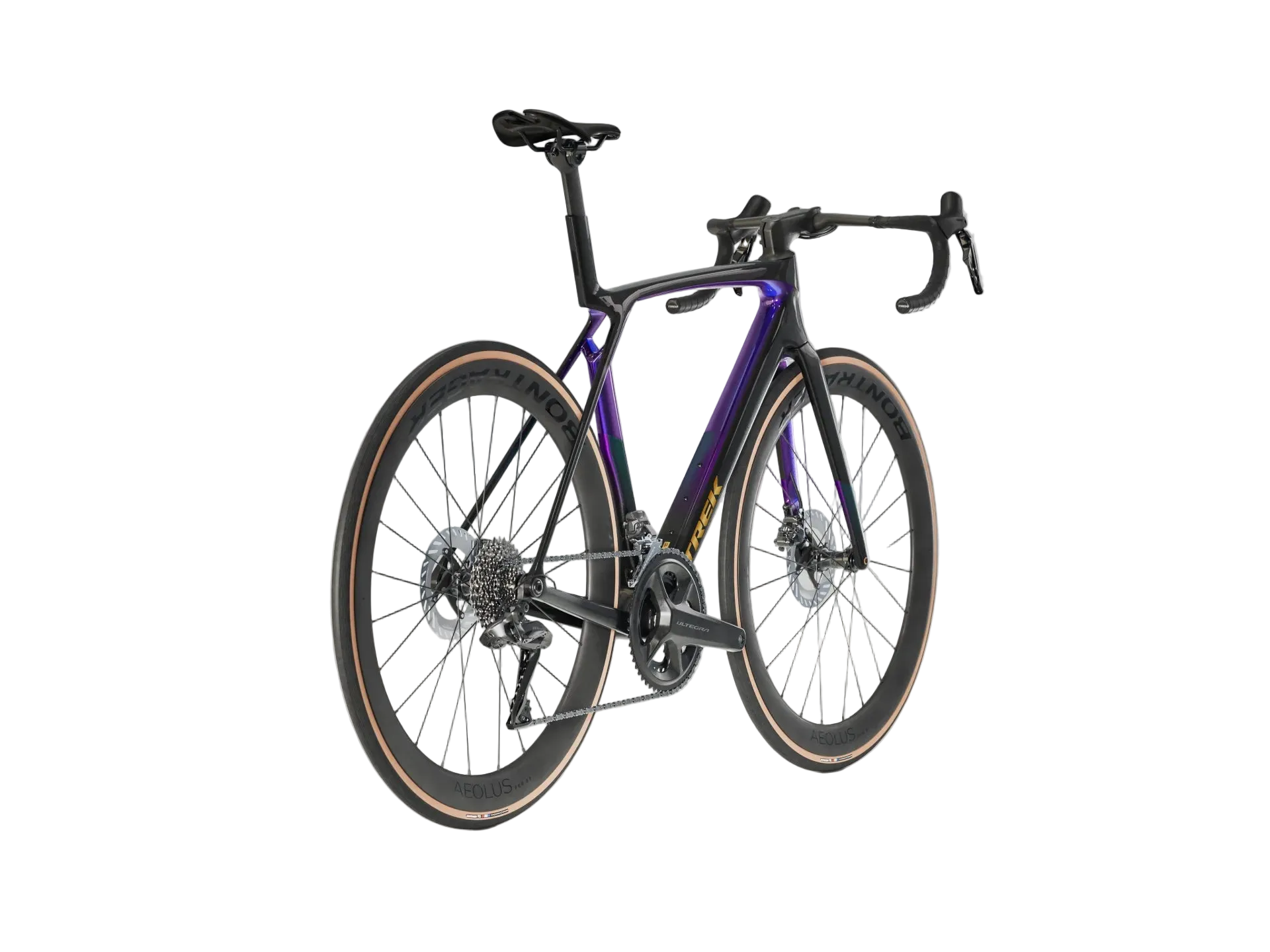

The Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. Its featherweight build lets you soar up climbs, while aero geometry cuts drag on descents and IsoFlow keeps you comfortable through the miles. To give you the best balance of price and performance, it's built with 500 Series OCLV carbon, a two-piece handlebar and stem, and Shimano Ultegra Di2 wireless electronic drivetrain that delivers clean shifts every time, all topped off with carbon wheels for extra lightweight performance.

Overview

Specifications

Sizing

Overview

It's right for you if...

You want a high-end race bike that delivers on aerodynamics, comfort and a lightweight build. Carbon is important to you, but you're happy with light-yet-economical 500 Series OCLV, knowing you can save big with only a few more grams of weight. You want performance parts where they count most – like carbon wheels and an electronic Shimano Ultegra Di2 group set.

The tech you get

An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano Ultegra Di2 group set for lightning-fast shifting that's completely customisable. Plus, it's topped off with Bontrager Aeolus Pro 51 carbon wheels that come set up tubeless.

The final word

The Madone SL 7 Gen 8 is the perfect bike to reach for when race day performance is a must, and so is your budget. It delivers the best balance of price and performance, with 500-Series OCLV carbon and upgraded parts that matter, like carbon wheels and electronic shifting.


Why you'll love it

  1. The Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimise aerodynamics around the whole bike
  2. A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
  3. Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents

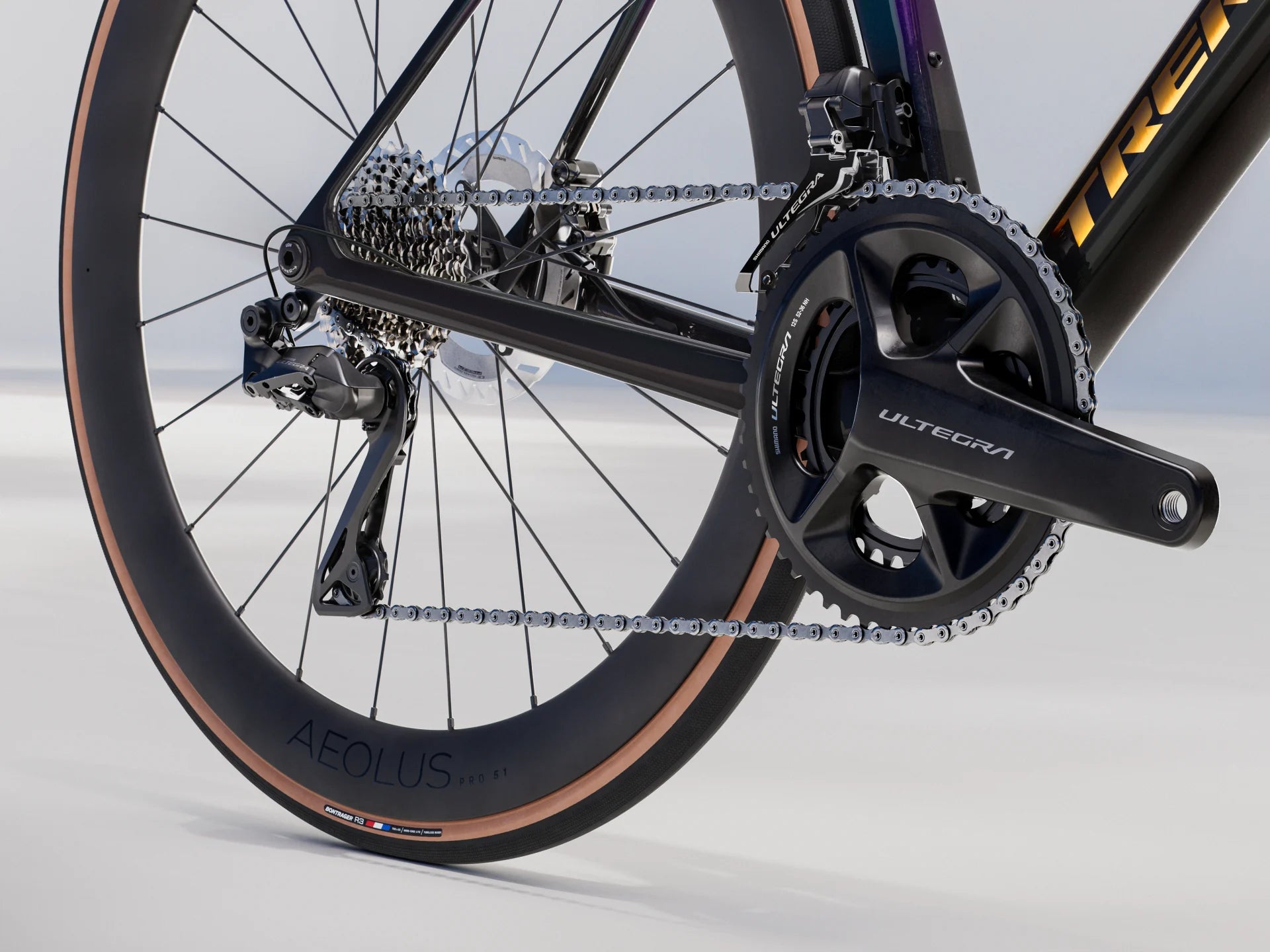

  4. You get lightning-fast precision shifts that are fully customisable thanks to Shimano's Ultegra Di2 drivetrain

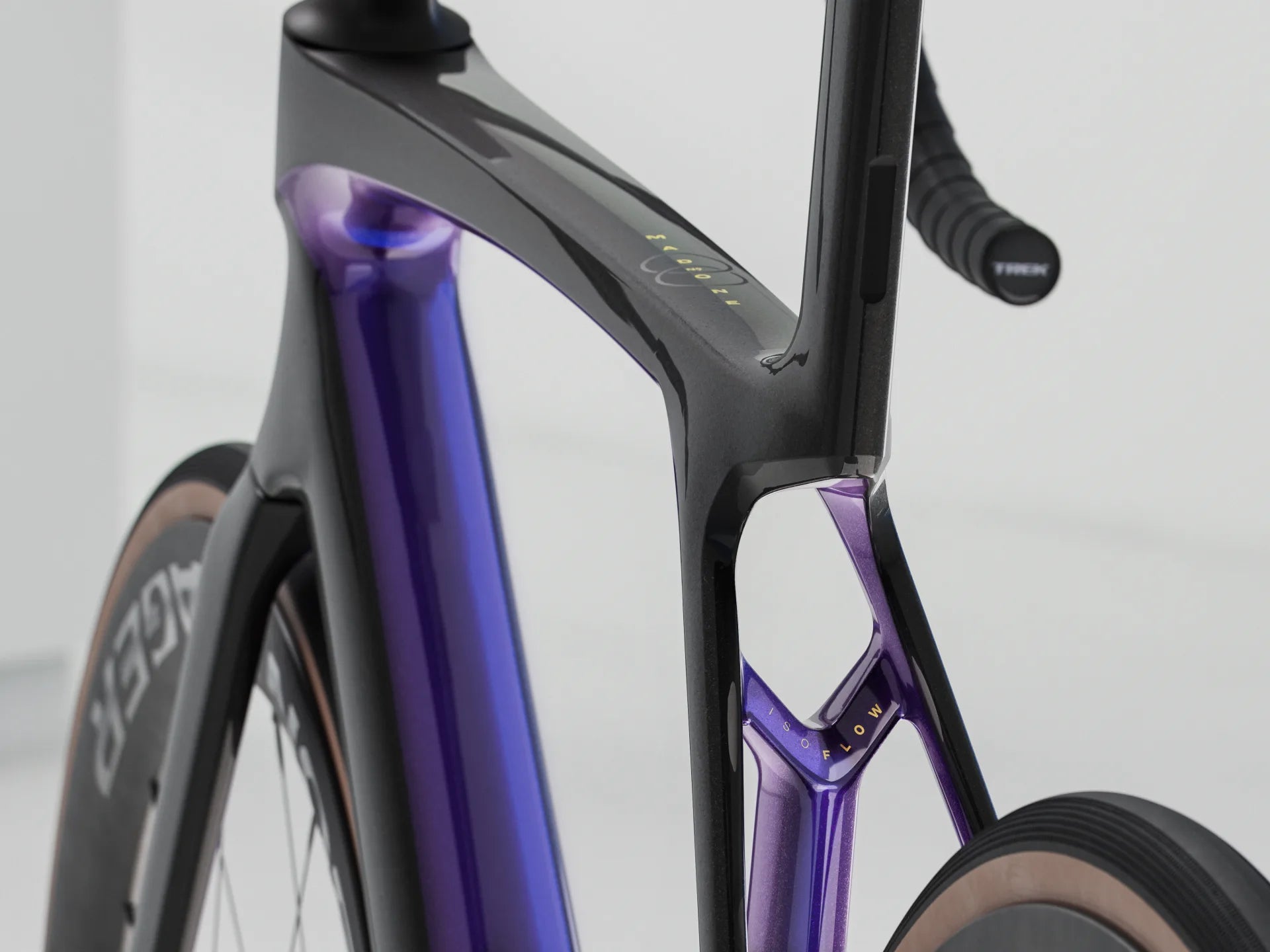

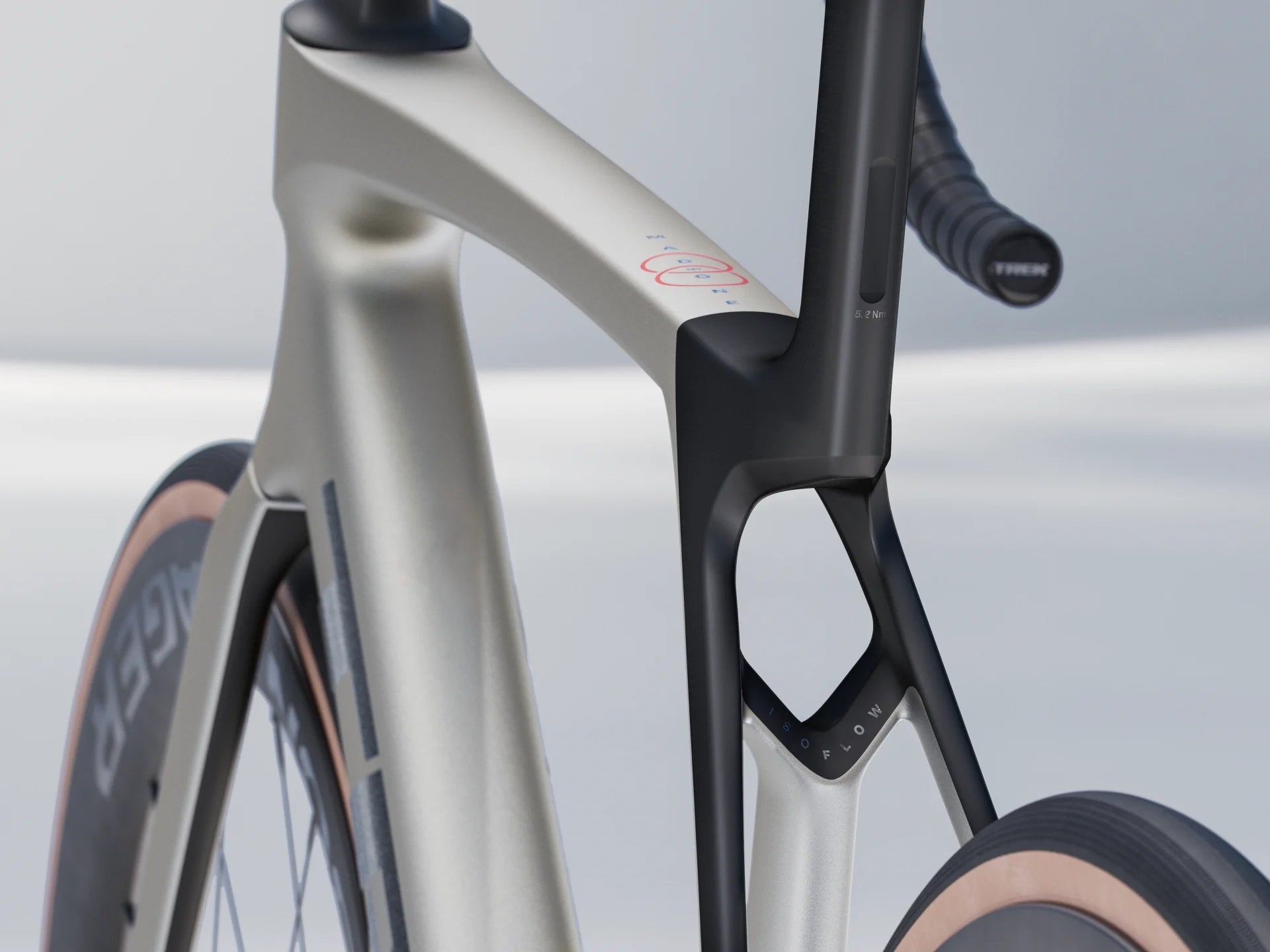

  5. Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics
  6. This bike comes set up tubeless – a first in Trek performance road history

Specifications

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Weight
Weight ML - 7.88 kg / 17.38 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Drivetrain
Shifter Shimano Ultegra R8170 Di2, 12-speed
Front derailleur Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur Shimano Ultegra R8150 Di2, 34T max cog
*Crank Size: XS, S
Shimano Ultegra R8100, 50/34, 165 mm length
Size: M
Shimano Ultegra R8100, 50/34, 170 mm length
Size: ML, L
Shimano Ultegra R8100, 50/34, 172.5 mm length
Size: XL
Shimano Ultegra R8100, 50/34, 175 mm length
Bottom bracket Praxis, T47 threaded, internal bearing
Cassette Shimano Ultegra R8101, 11-34, 12-speed
Chain Shimano Ultegra/XT M8100, 12-speed
Max. chainring size 1x: 54T, 2x: 56/43
Wheels
Wheel front Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front Bontrager Switch chamfered thru axle, removable lever
Skewer rear Bontrager Switch chamfered thru axle, removable lever
Tyre Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Max tyre size 32 mm (as measured, see manual for details)
Components
*Saddle Size: XS, S
Bontrager Aeolus Elite, austenite rails, 155 mm width
Size: M, ML, L, XL
Bontrager Aeolus Elite, austenite rails, 145 mm width
*Seatpost Size: XS, S, M
Madone aero carbon seat post, 0 mm offset, short length
Size: ML, L, XL
Madone aero carbon seat post, 0 mm offset, long length
*Handlebar Size: XS

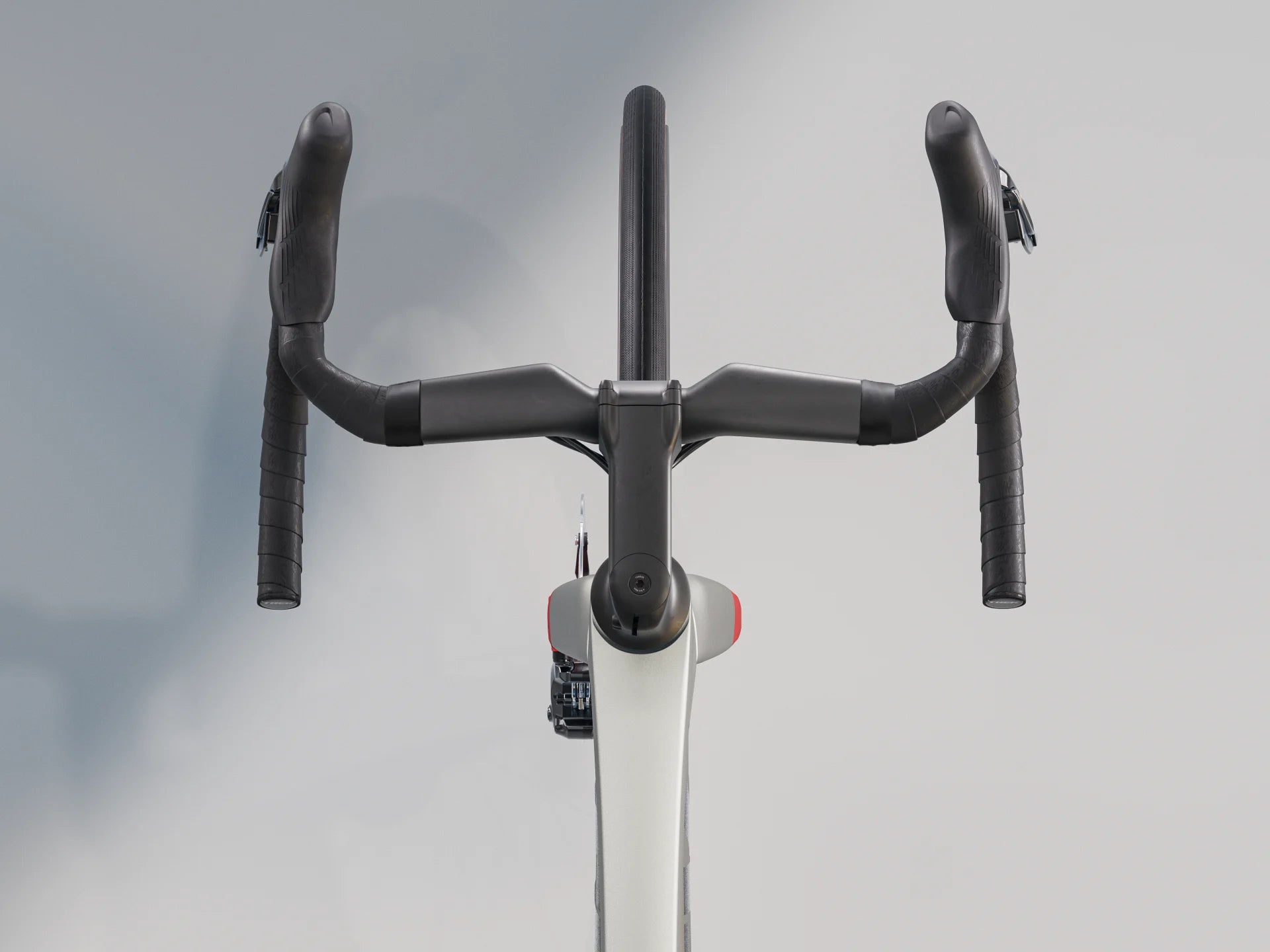

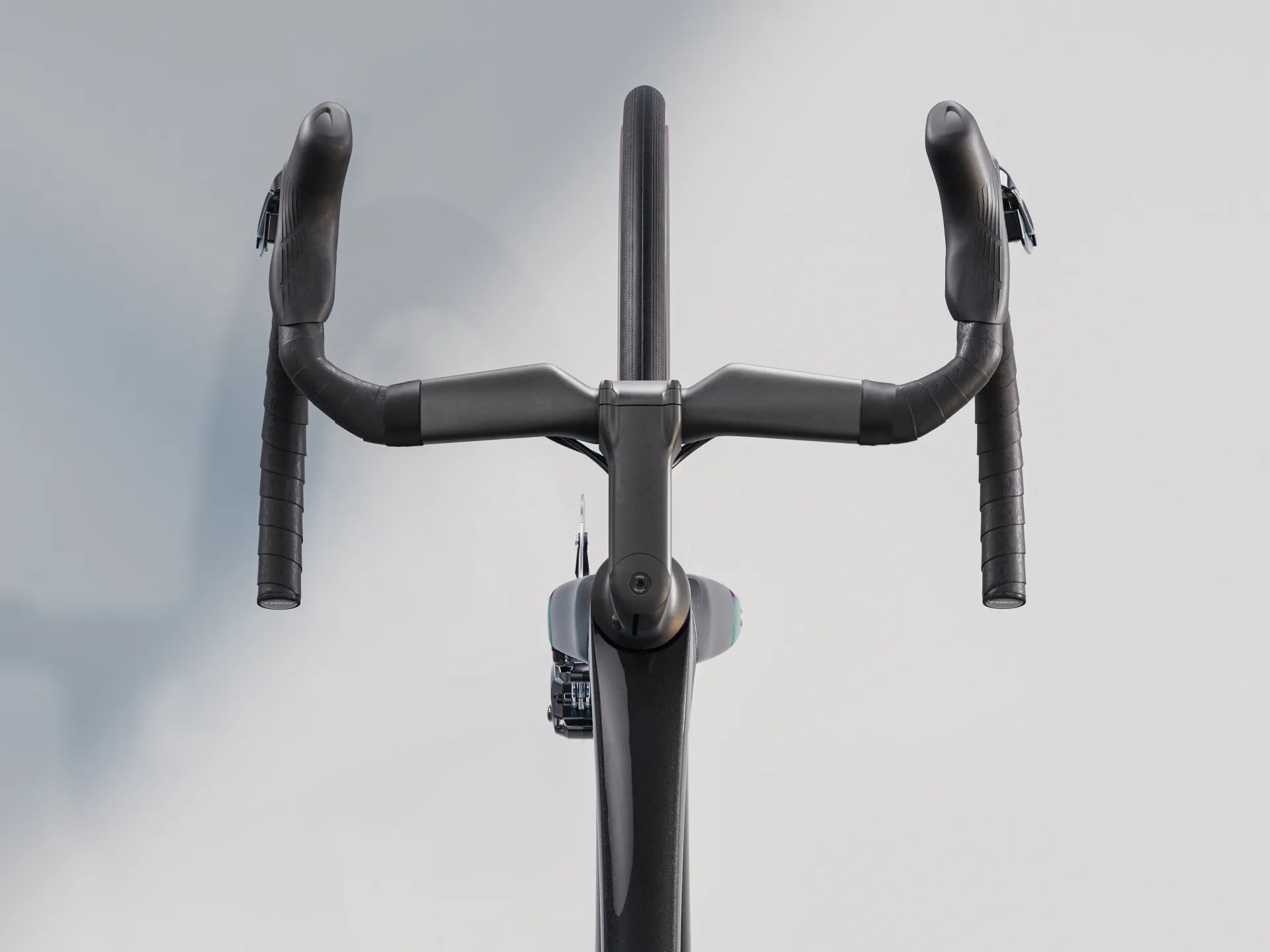

Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width
Size: S
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width
Size: M, ML, L
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 42 cm width
Size: XL
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width
*Stem Size: XS
Trek RCS Pro, -7-degree, 80 mm length
Size: S, M
Trek RCS Pro, -7-degree, 90 mm length
Size: ML, L
Trek RCS Pro, -7-degree, 100 mm length
Size: XL
Trek RCS Pro, -7-degree, 110 mm length
Brake rotor Shimano CL800, CentreLock, 160 mm
Rotor size Max brake rotor sizes: 180 mm front, 160 mm rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"

S

158 - 162 cm

5'2" - 5'4"

74 - 76 cm

29" - 30"

M

162 - 173 cm

5'4" - 5'8"

76 - 81 cm

30" - 32"

ML

173 - 179 cm

5'8" - 5'10"

81 - 84 cm

32" - 33"

L

179 - 188 cm

5'10" - 6'2"

84 - 88 cm

33" - 35"

XL

188 - 213 cm

6'2" - 7'0"

88 - 100 cm

35" - 39"


Geometry

All measurements provided in cm unless otherwise stated.

Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack Saddle rail height min (w/short mast) Saddle rail height max (w/short mast) Saddle rail height min (w/tall mast) Saddle rail height max (w/tall mast)
XS 700c 40.4 73.8° 10.0 71.6° 51.7 7.2 41.0 5.0 6.1 97.1 70.4 37.0 50.7 54.9 61.2 59.2 65.4
S 700c 44.0 73.8° 12.1 72.2° 53.2 7.2 41.0 4.5 6.2 97.6 73.4 37.8 53.0 58.5 64.8 62.8 69.0
M 700c 47.6 73.6° 13.6 72.9° 54.5 7.0 41.0 4.5 5.8 98.1 76.2 38.4 54.6 62.1 68.4 66.4 72.6
ML 700c 51.2 73.4° 15.0 73.5° 55.7 7.0 41.0 4.0 5.9 98.0 79.0 38.9 56.2 65.7 72.0 70.0 76.2
L 700c 54.8 73.4° 17.2 73.8° 56.8 6.8 41.1 4.0 5.7 99.0 82.0 39.4 58.2 69.3 75.6 73.6 79.8
XL 700c 60.9 73.4° 20.1 73.9° 58.4 6.8 41.2 4.0 5.7 100.7 86.3 40.2 61.0 75.4 81.7 79.7 85.9
