Trek

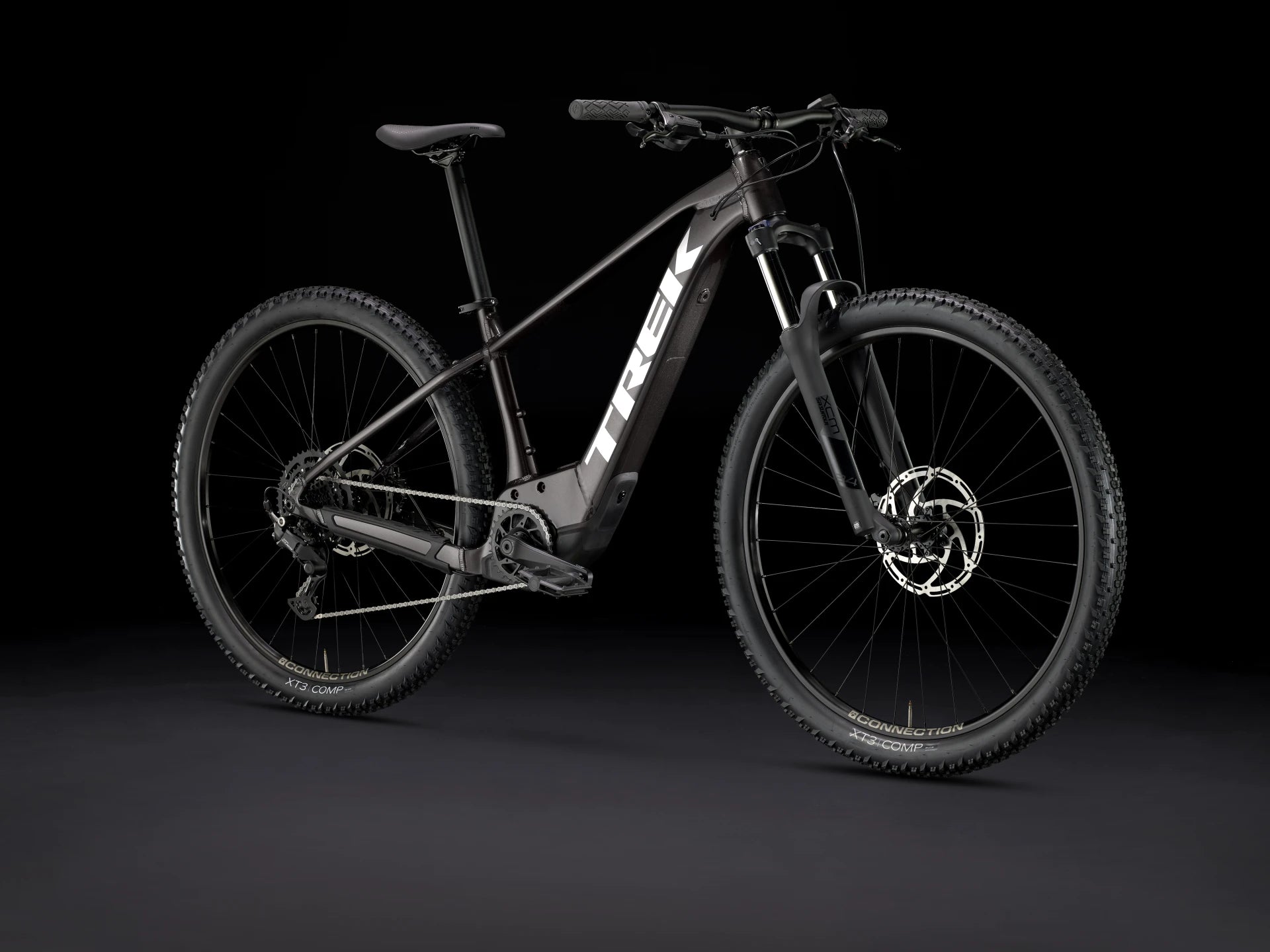

Trek Marlin+ 6 2024

$4,299.99
$4,299.99
$4,299.99
Tax included.
If what you're looking for is unavailable call our store 1300 436 379
All bikes need to be COLLECTED IN STORE or delivered locally by Hendry's.
Due to our dealer agreements and manufacturer guidelines, all bikes sold from Hendry's must be fully assembled, and inspected to conform with warranty requirements which prohibits shipping.
Color: Dnister Black
Size:

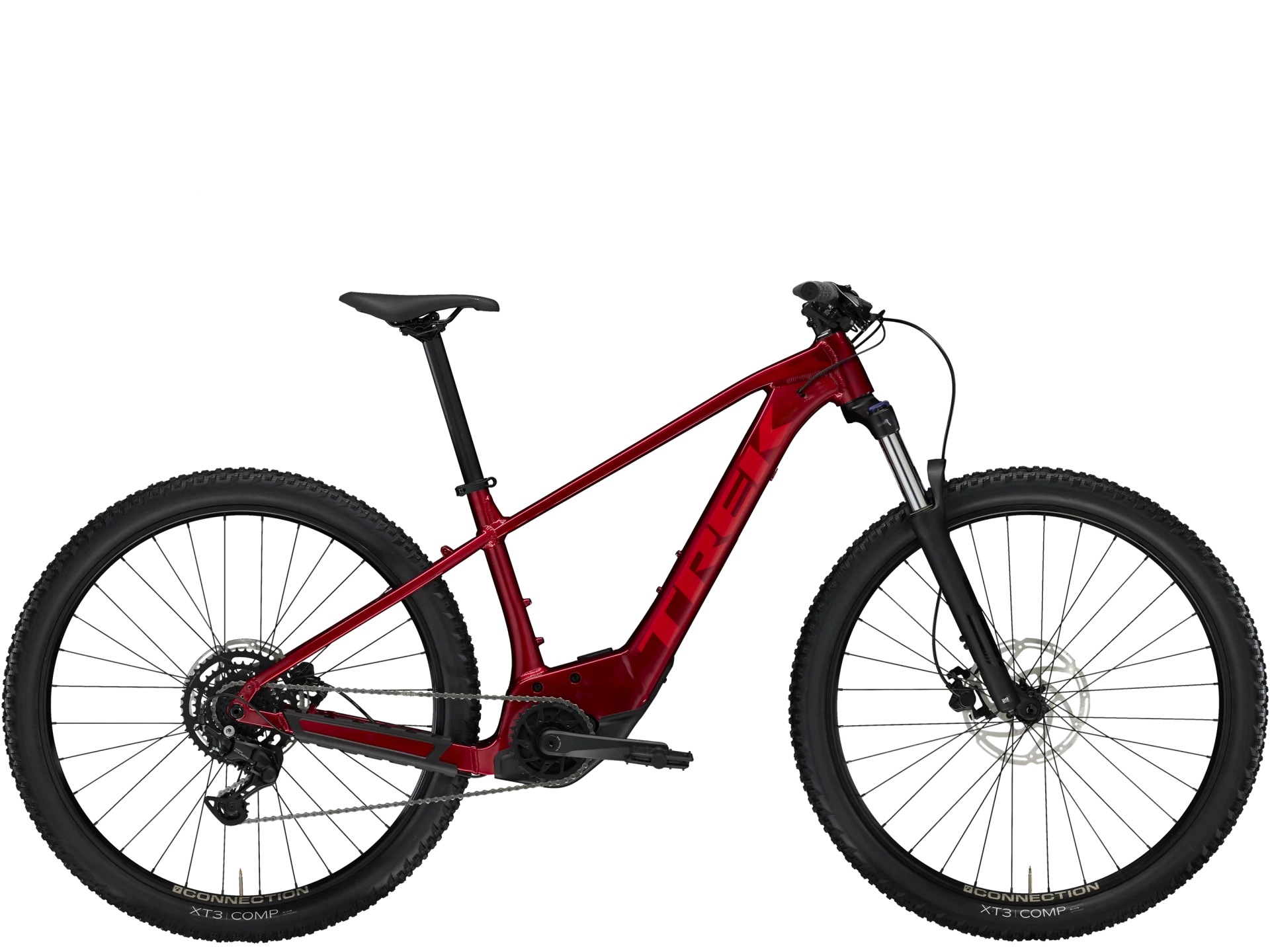

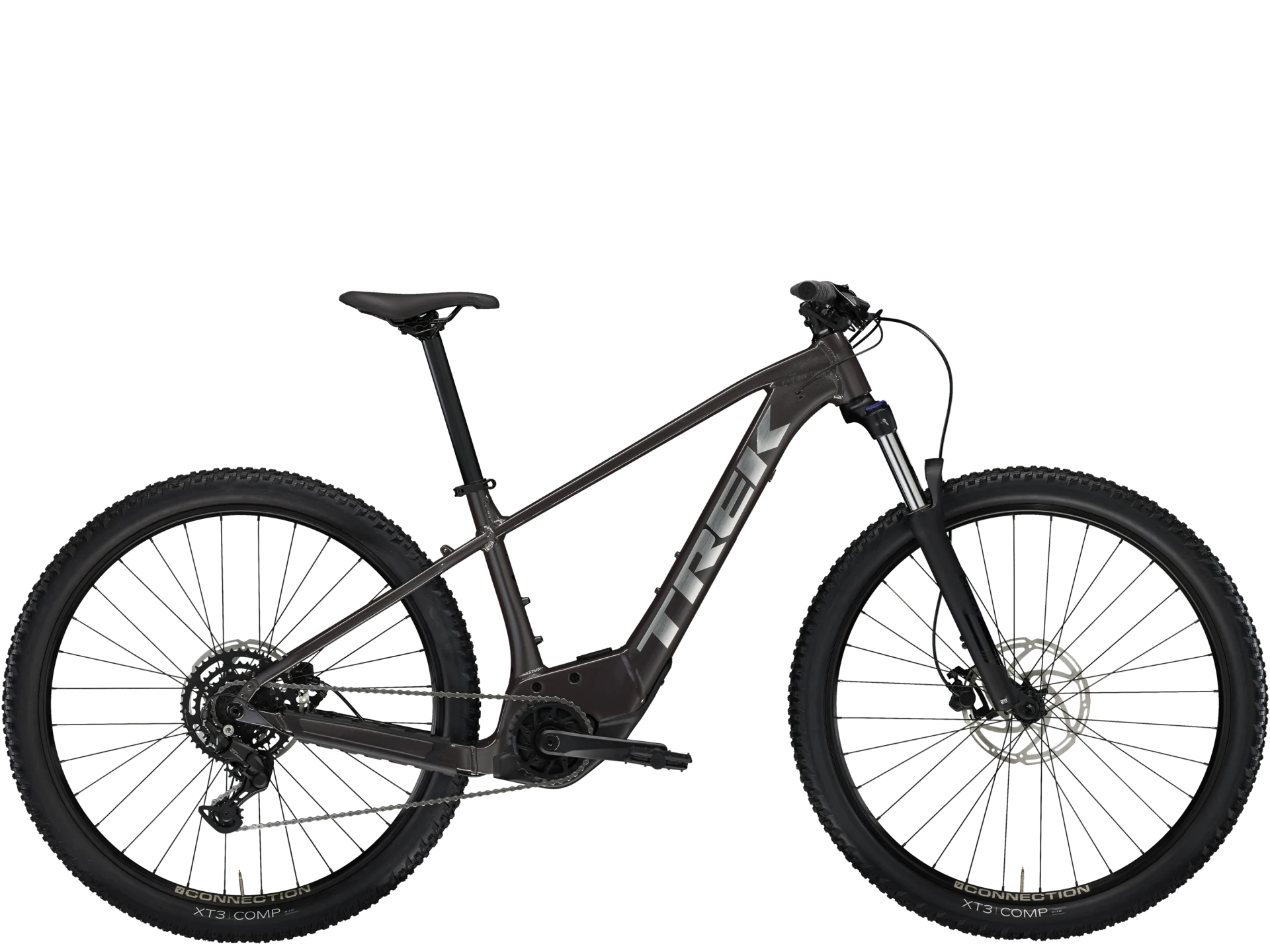

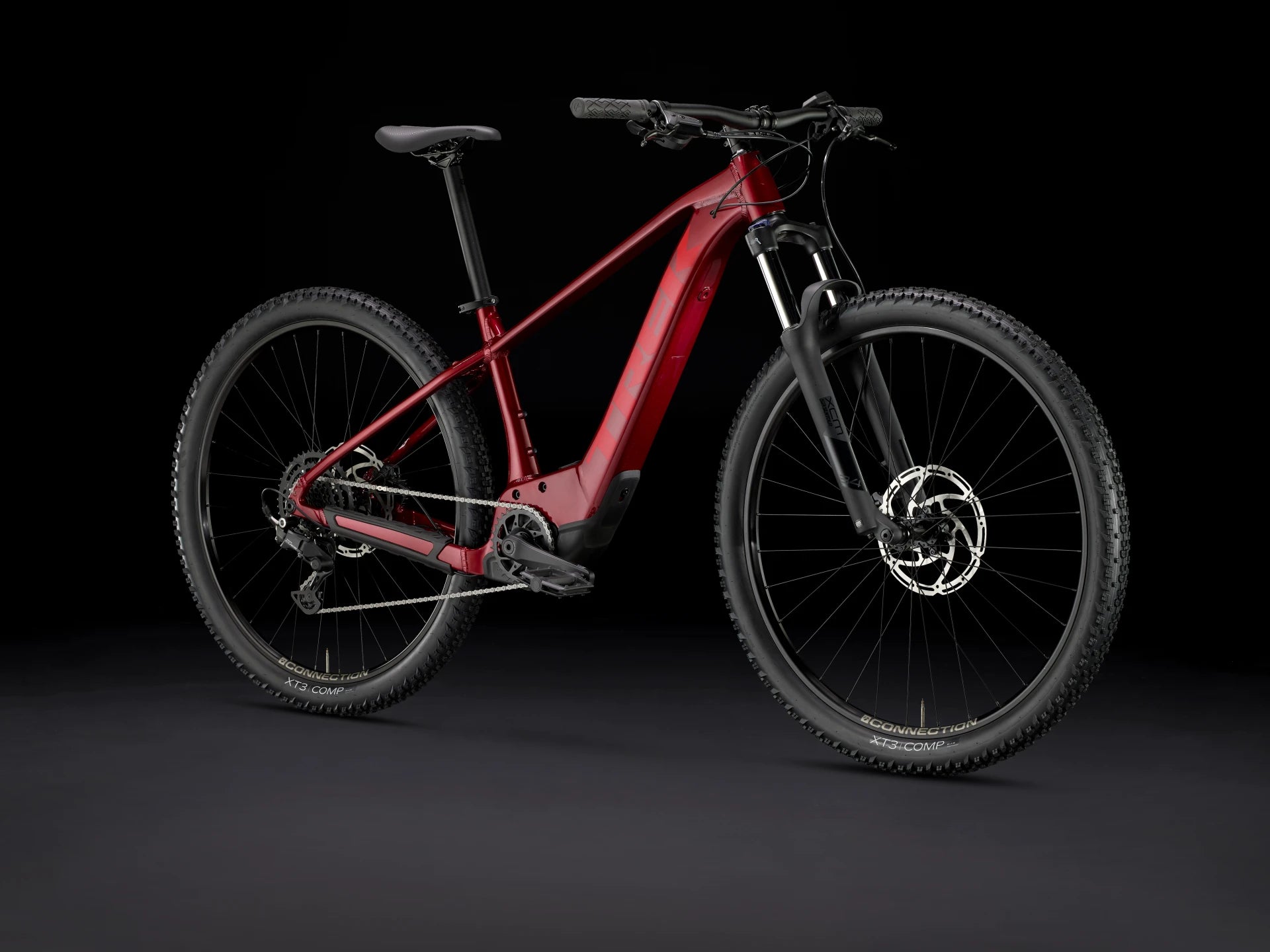

The Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120 mm suspension fork soaks up rocks, roots and pot holes on your ride, while the 9-speed Shimano CUES is durable and reliable for wherever you roll.

Overview

Specifications

Sizing

Overview

It's right for you if...

You want a boost of power on the trail without spending an arm and a leg. You love the trail-to-town capability of the Marlin and want a ride that helps you ride a little faster or pedal further.

The tech you get

An Alpha Gold Aluminium frame with real mountain bike geometry and a coil-sprung 120 mm fork. A reliable Bosch Active Line Plus 50Nm drive system capable of assisting you to speeds of 25 km/h. A compact Purion 200 remote with built-in display. Plus, hydraulic disc brakes and a 9-speed Shimano CUES drivetrain that performs well, even under load.

The final word

The Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and a Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.


Why you'll love it

  1. Its AUTO mode adaptive motor support recognises speed reductions and adjusts assistance automatically
  2. The 120 mm suspension keeps your ride feeling smooth through bumps, roots and rough stuff
  3. The Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
  4. Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
  5. Tons of rack and mudguard mounts let you customise your ride for the trail or taking on daily commutes

Specifications

*Please note – spec applies to all sizes unless listed separately

Frameset
*Frame Size: XS

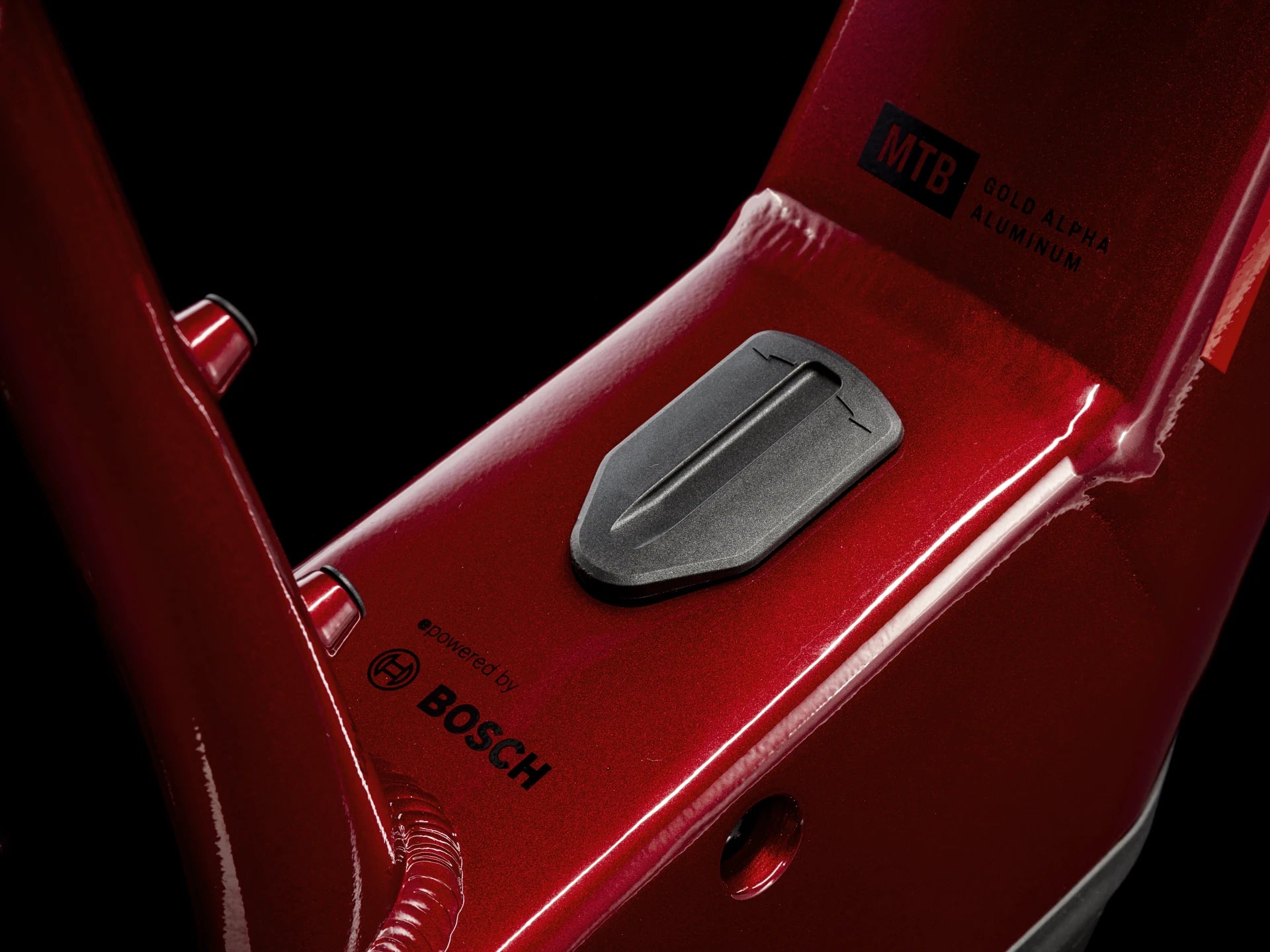

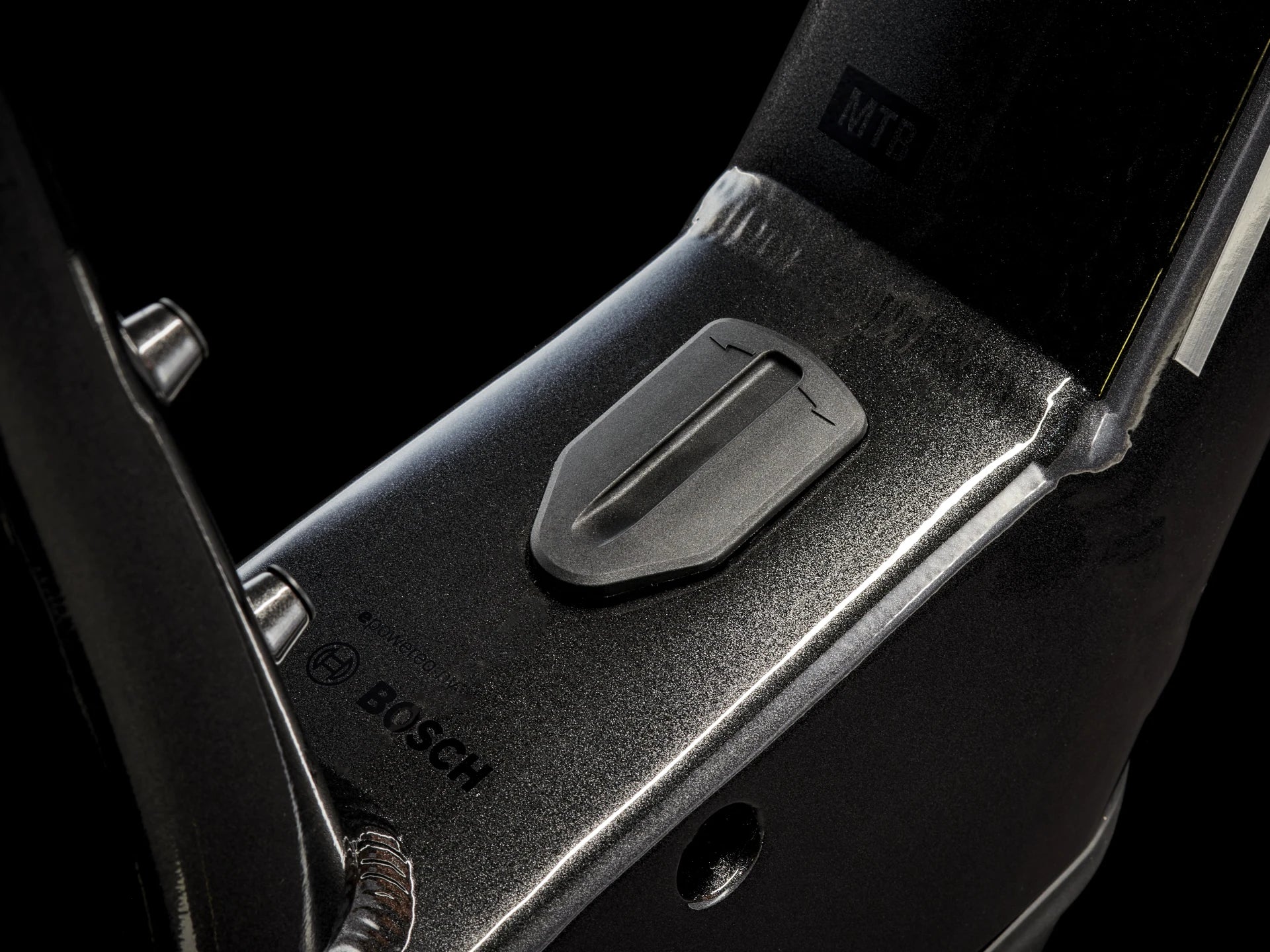

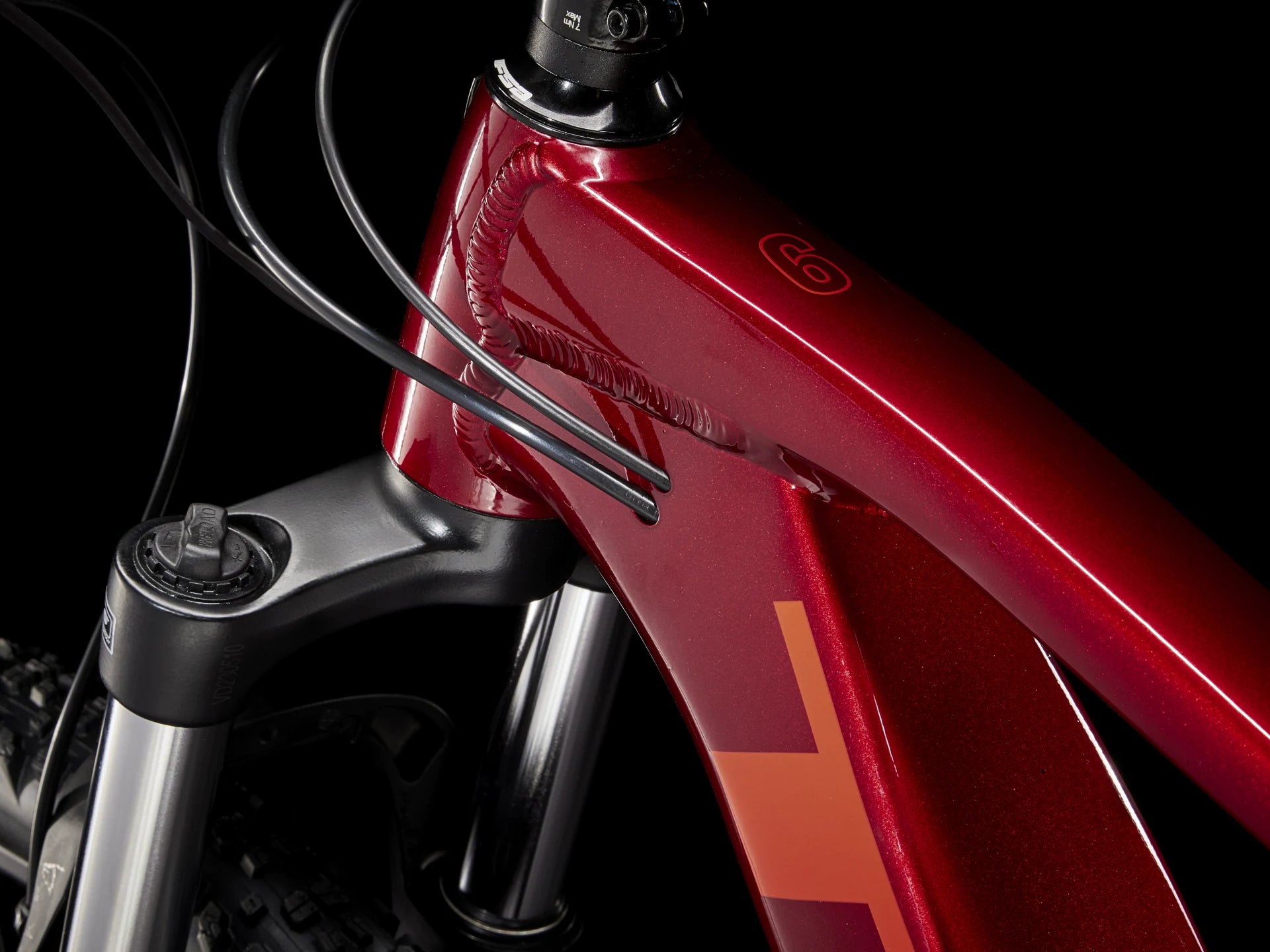

Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
Size: S , M , L , XL
Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
*Fork Size: XS

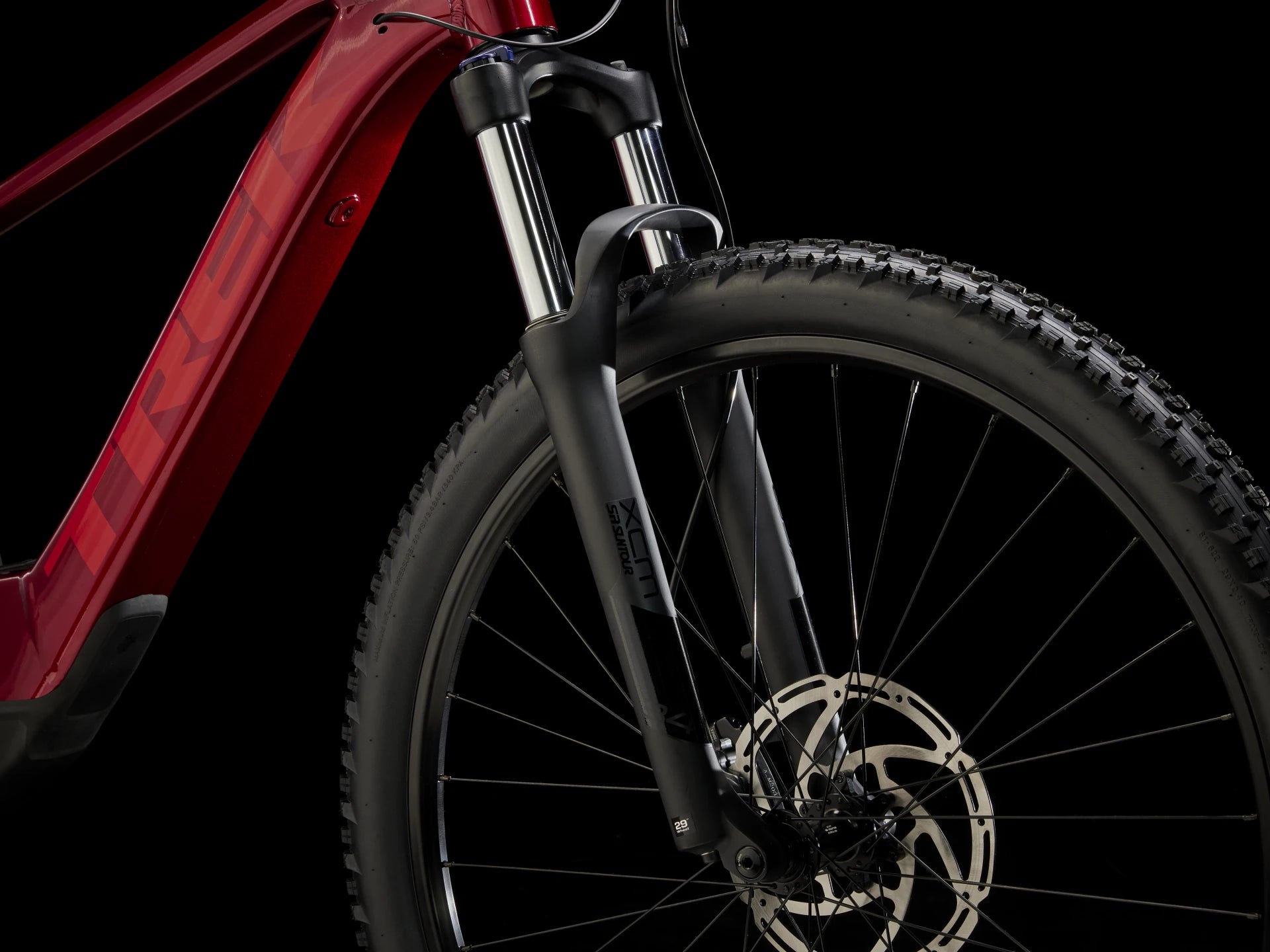

SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travel
Size: S , M , L , XL

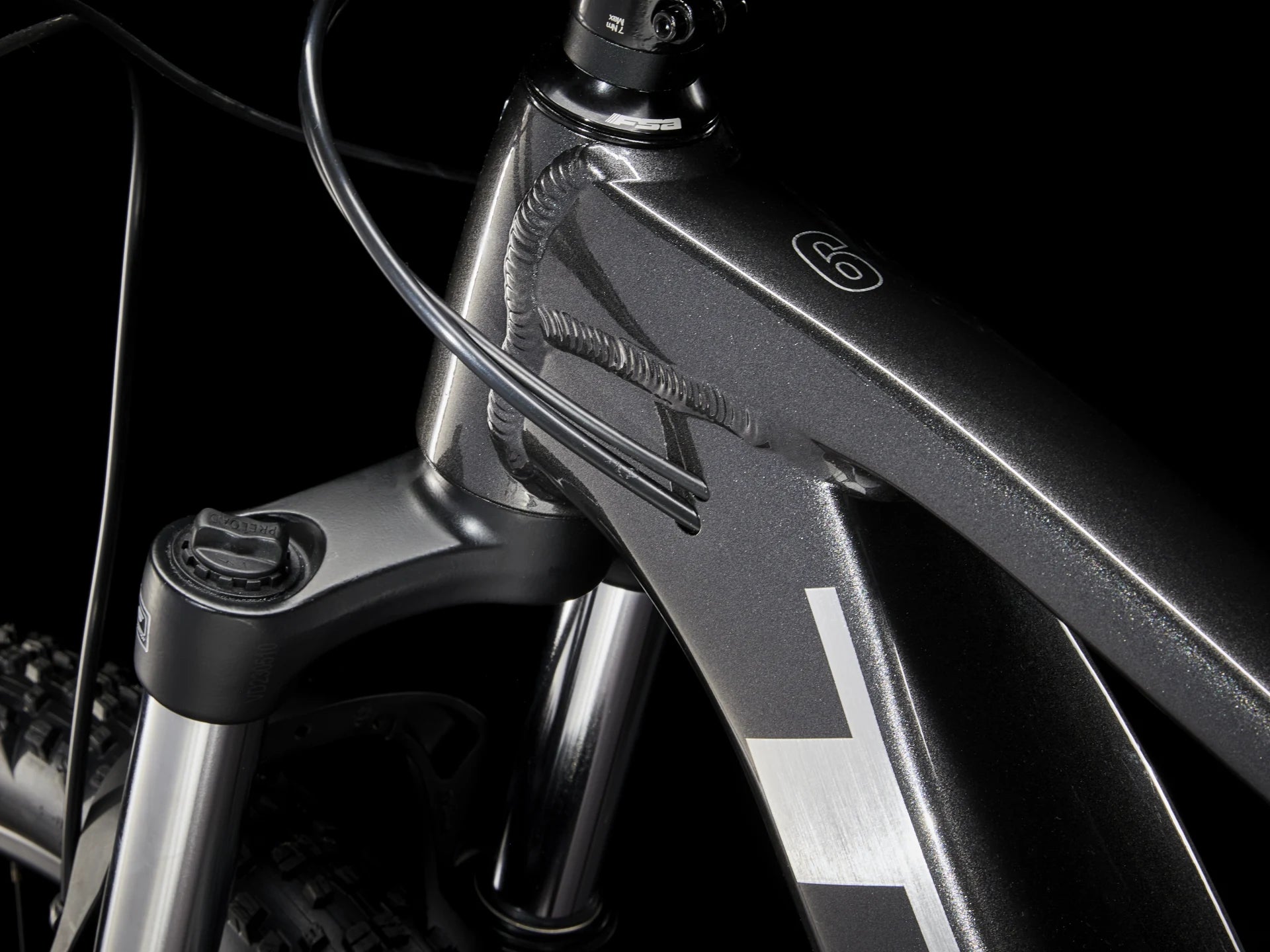

SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Max compatible fork travel See service manual
Wheels
Hub front Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
*Tyre Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , L , XL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
Max tyre size Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer
E-system

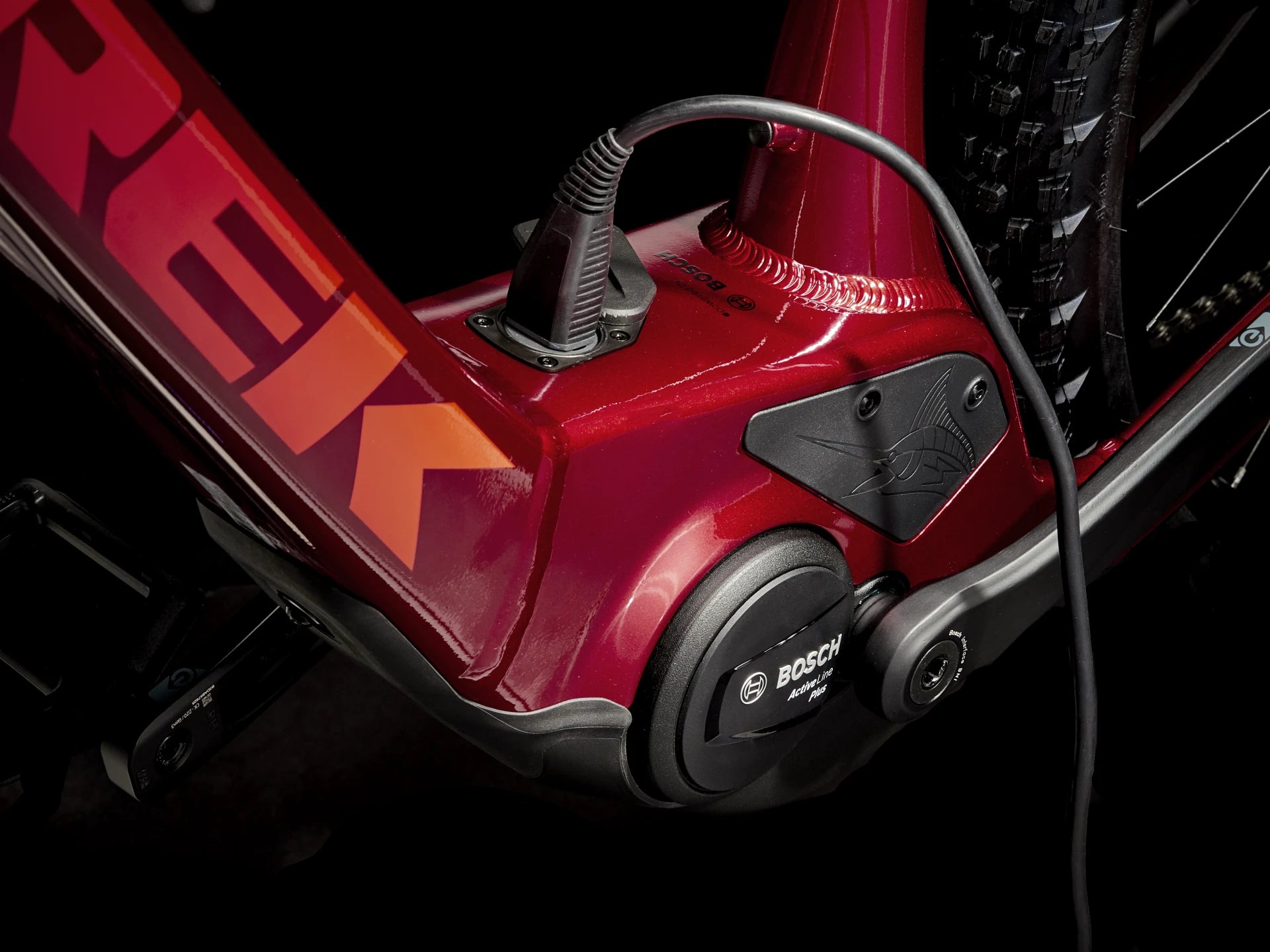

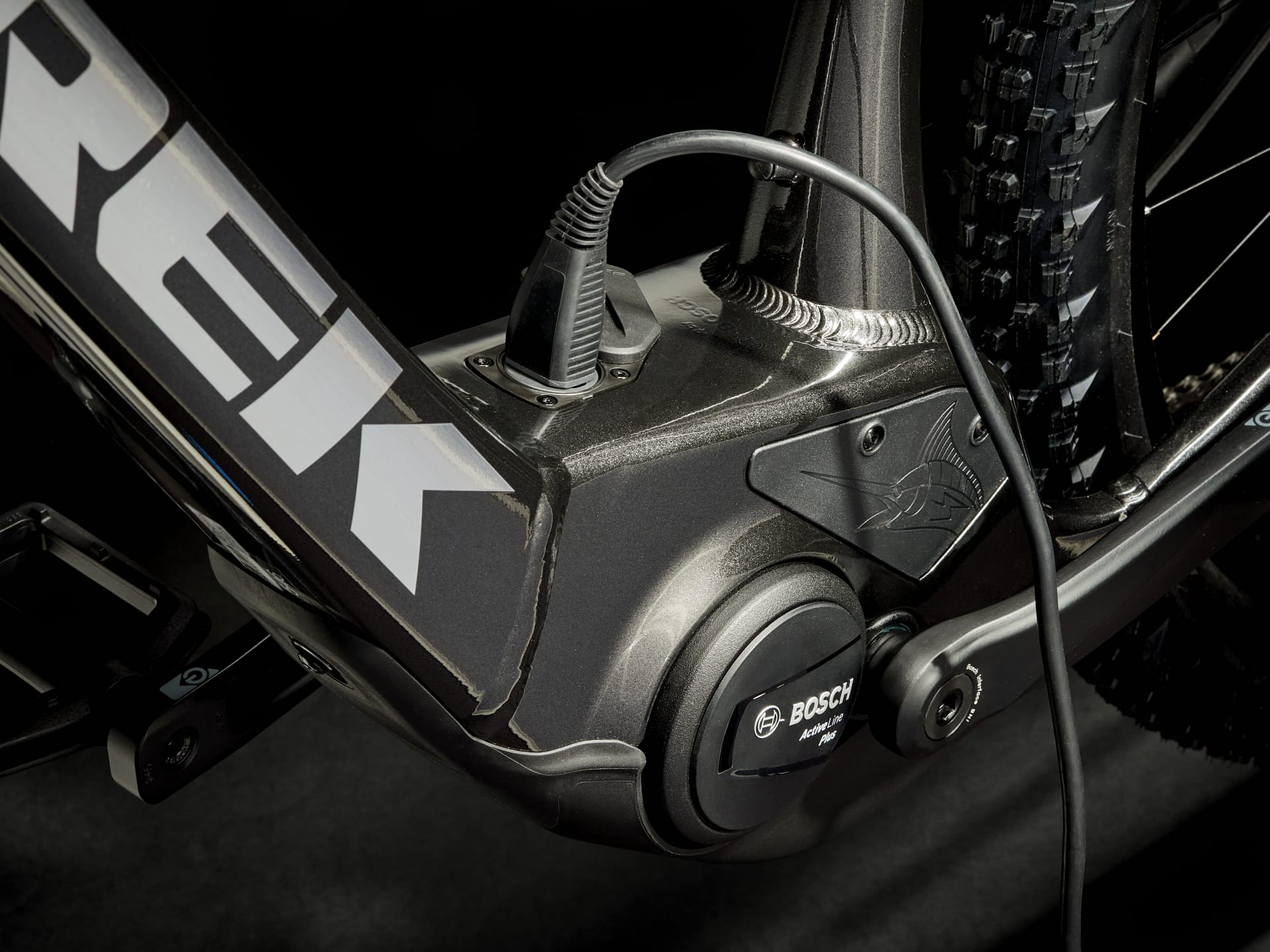

Battery Bosch CompactTube 400 Wh
Charger Bosch standard 2A, 230V, smart system

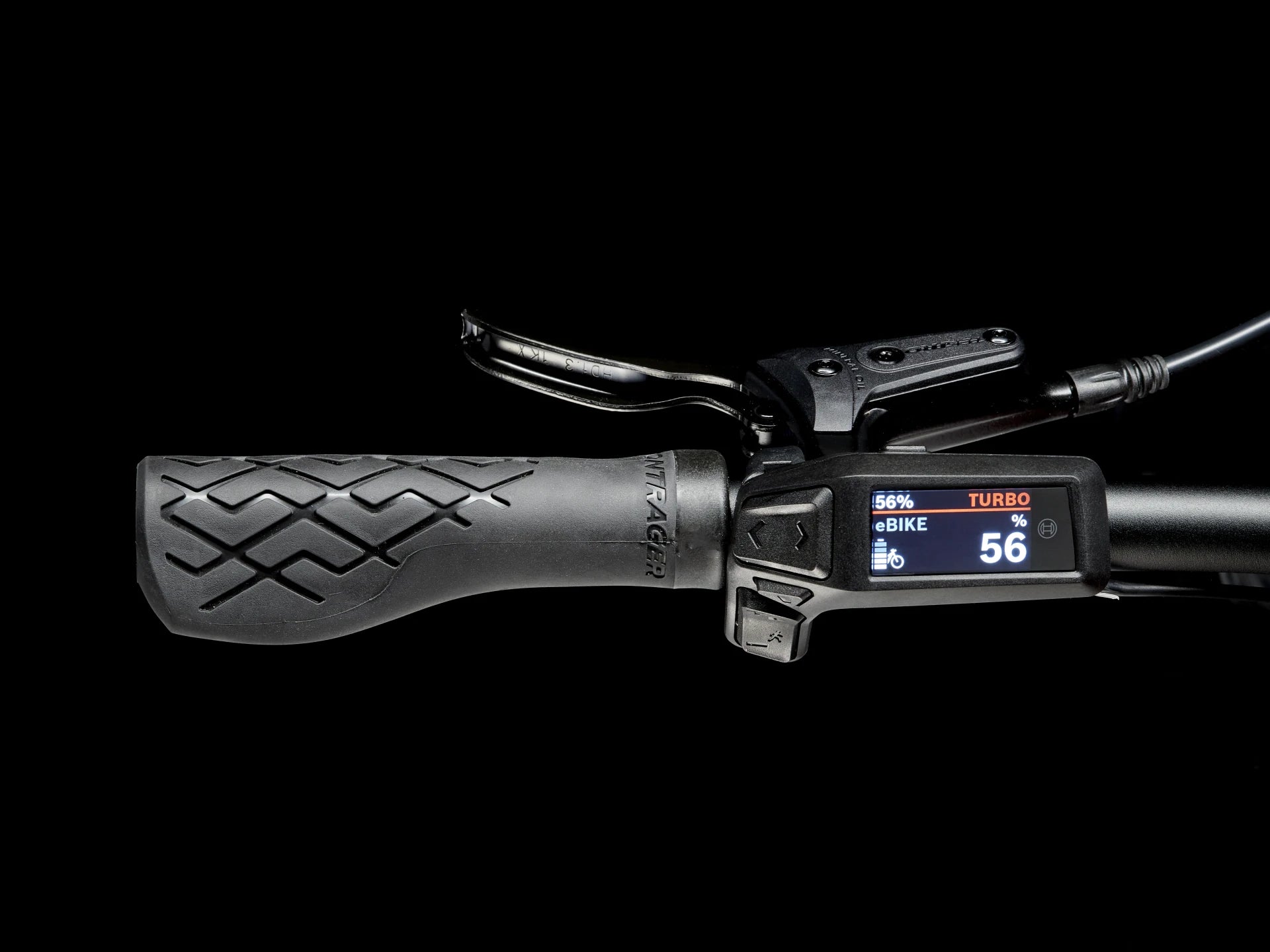

Computer Bosch Purion 200

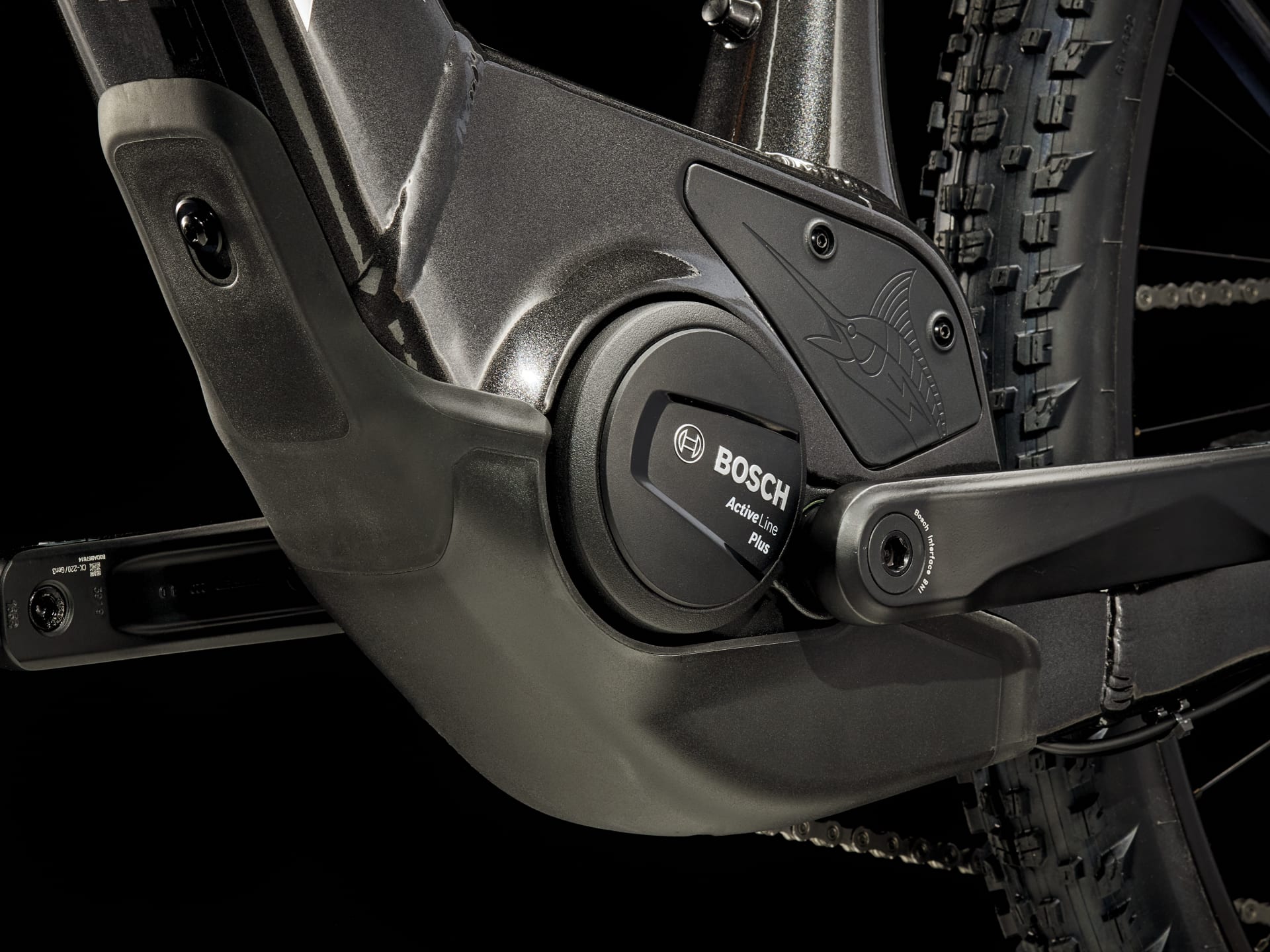

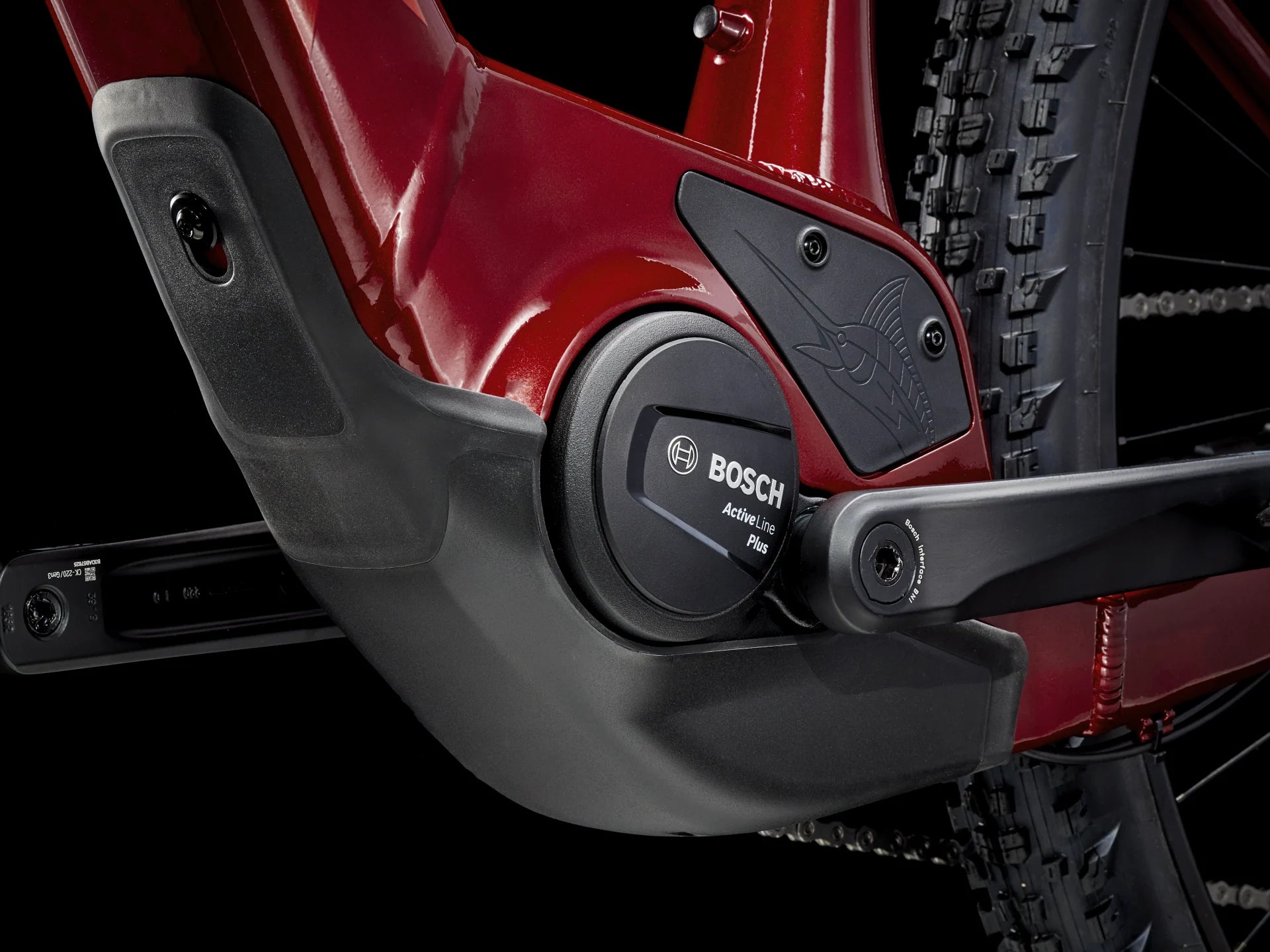

Motor Bosch Active Line Plus, 50 Nm
Drivetrain
Shifter Shimano U4000, 9-speed

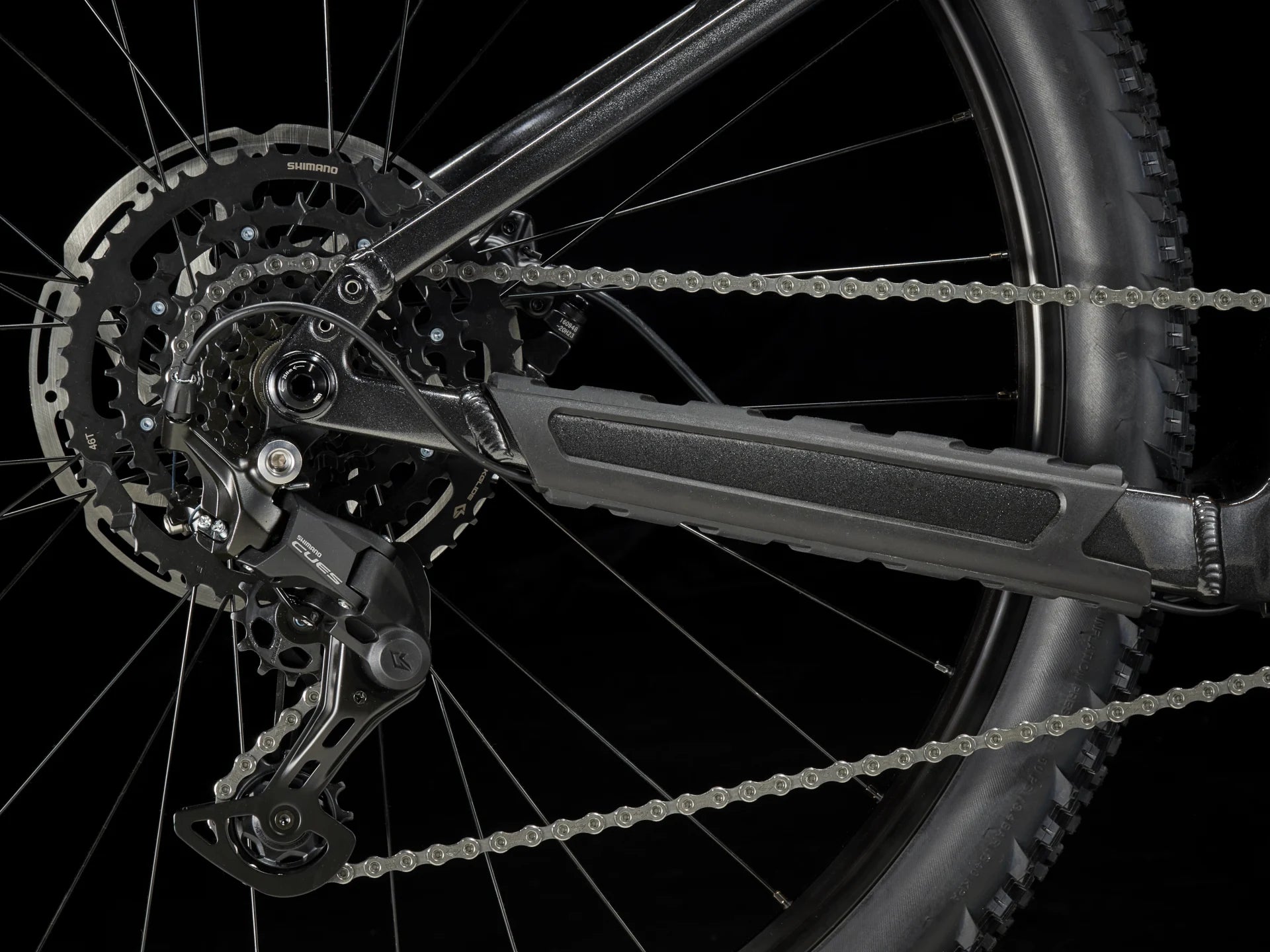

Rear derailleur Shimano CUES U4000
Crank FSA CK-220, 165 mm length
Chainring FSA, 32T, steel w/guard
Cassette Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain Shimano LG500
Pedal VP-536 nylon platform
Max. chainring size 1x: 36T, min 32T
Components
Saddle Bontrager Verse Short, stainless steel rails
*Seatpost Size: XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size: L , XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Endurance Comp, lock-on
*Stem Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Head set Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
Brake rotor Tektro, CentreLock, 203 mm
Brake Set Tektro HD-M275 hydraulic disc
Rotor size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
Weight
Weight M - 22.45 kg / 49.5 lb (with tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
XS

145 - 155 cm

4'9" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"


Geometry

All measurements provided in cm unless otherwise stated.

Frame size letter Wheel size A — Seat tube B — Seat tube angle Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
XS 27.5" 34.0 73.8° 74.0° 9.0 66.5° 55.1 31.3 4.5 47.0 4.6 11.0 112.9 67.8 39.0 56.3
S 27.5" 37.0 73.8° 74.0° 10.0 66.5° 58.4 31.3 4.5 47.0 4.6 11.0 116.6 71.0 41.5 59.0
M 29" 42.0 73.8° 74.0° 10.5 66.5° 62.0 31.8 6.0 48.5 4.2 11.4 121.8 76.0 44.0 62.6
L 29" 45.0 73.8° 74.0° 11.5 66.5° 65.2 31.8 6.0 48.5 4.2 11.4 125.1 77.1 47.0 63.5
XL 29" 50.0 73.8° 74.0° 13.5 66.5° 68.2 31.8 6.0 48.5 4.2 11.4 128.4 77.5 49.5 65.3
