Trek

Trek Marlin+ 8 2024

Regular price
$5,399.99
Sale price
$5,399.99
Regular price
$5,399.99
Tax included.
If what you're looking for is unavailable call our store 1300 436 379
Color: Mercury
Size:

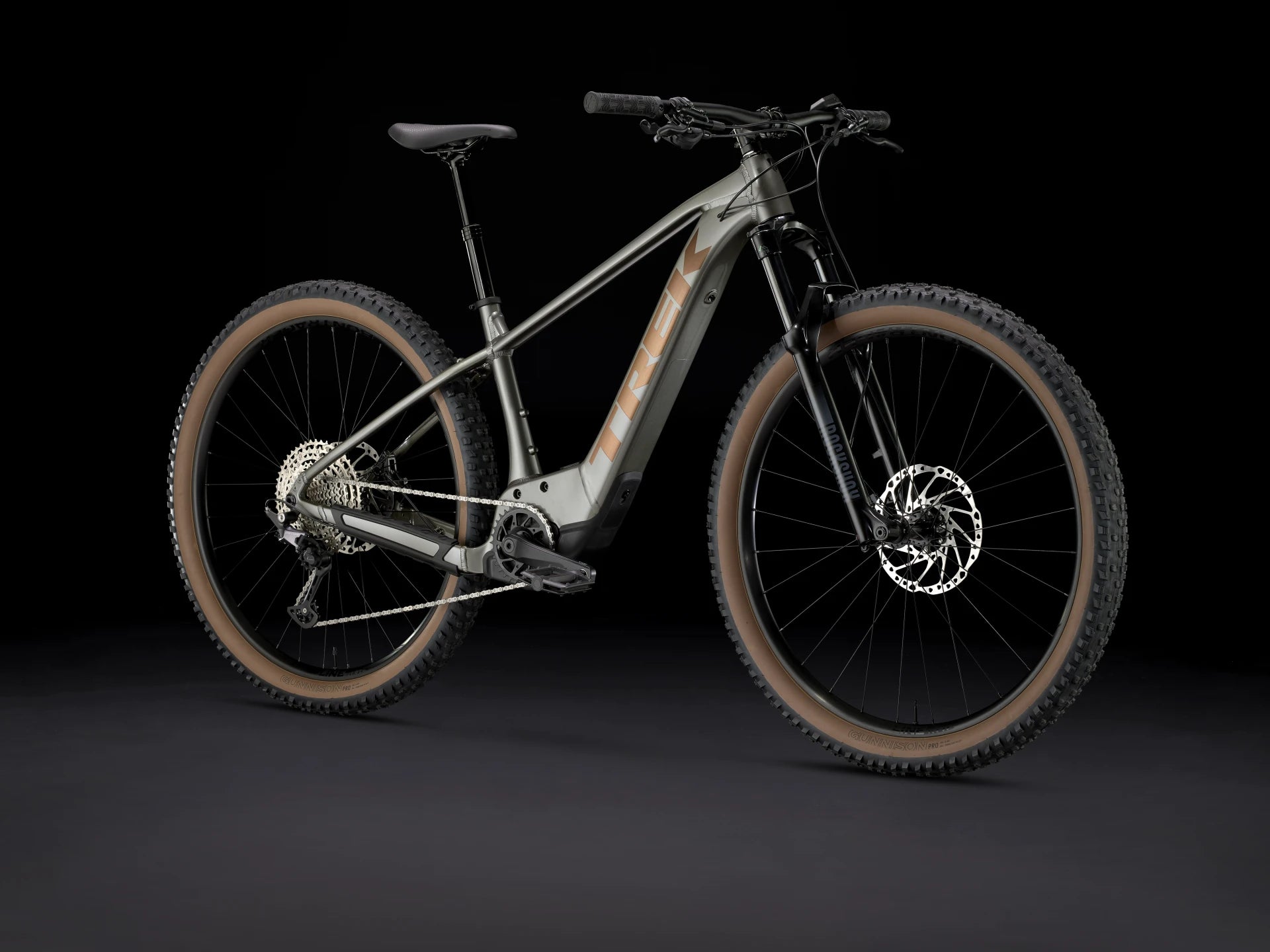

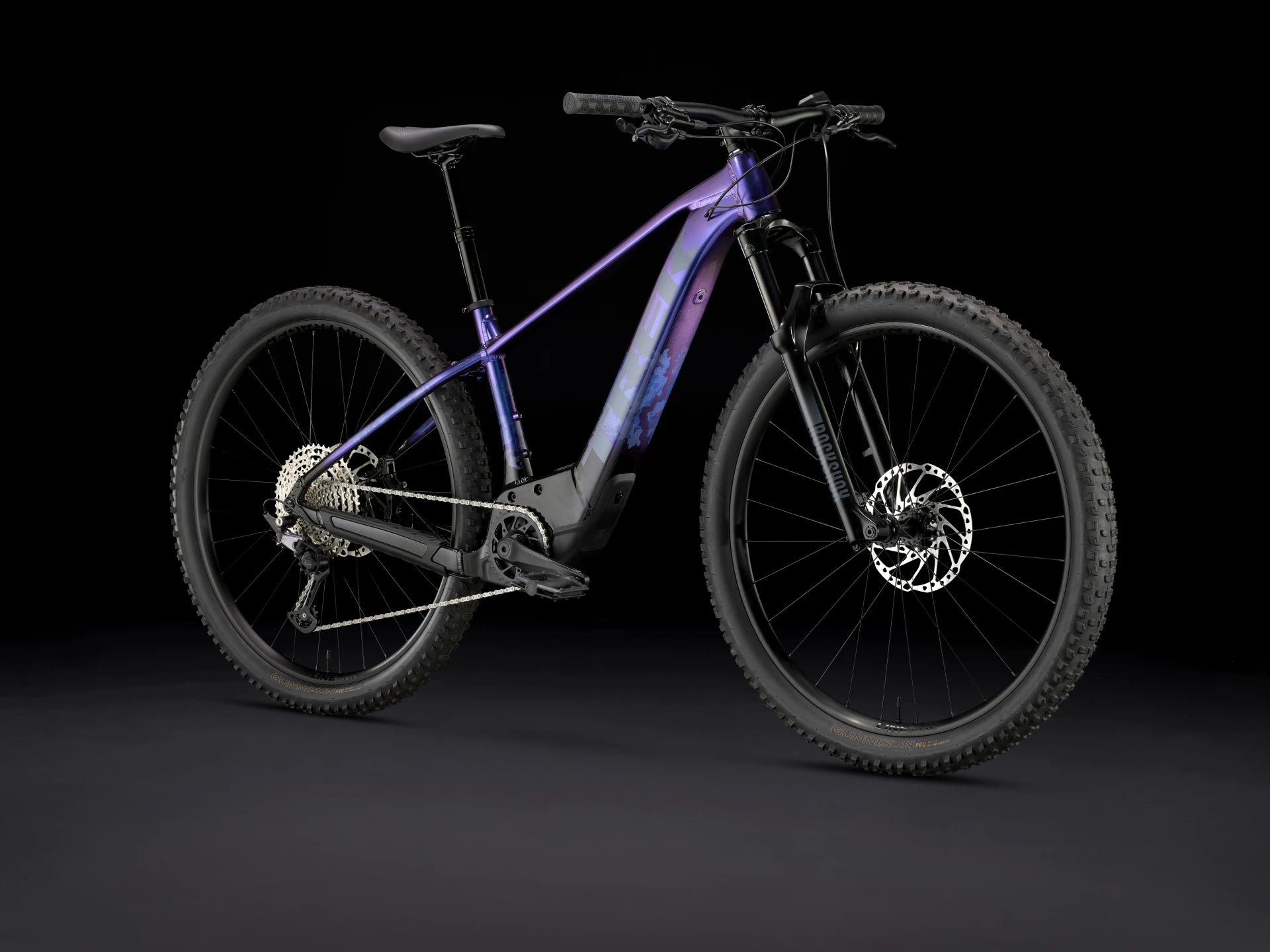

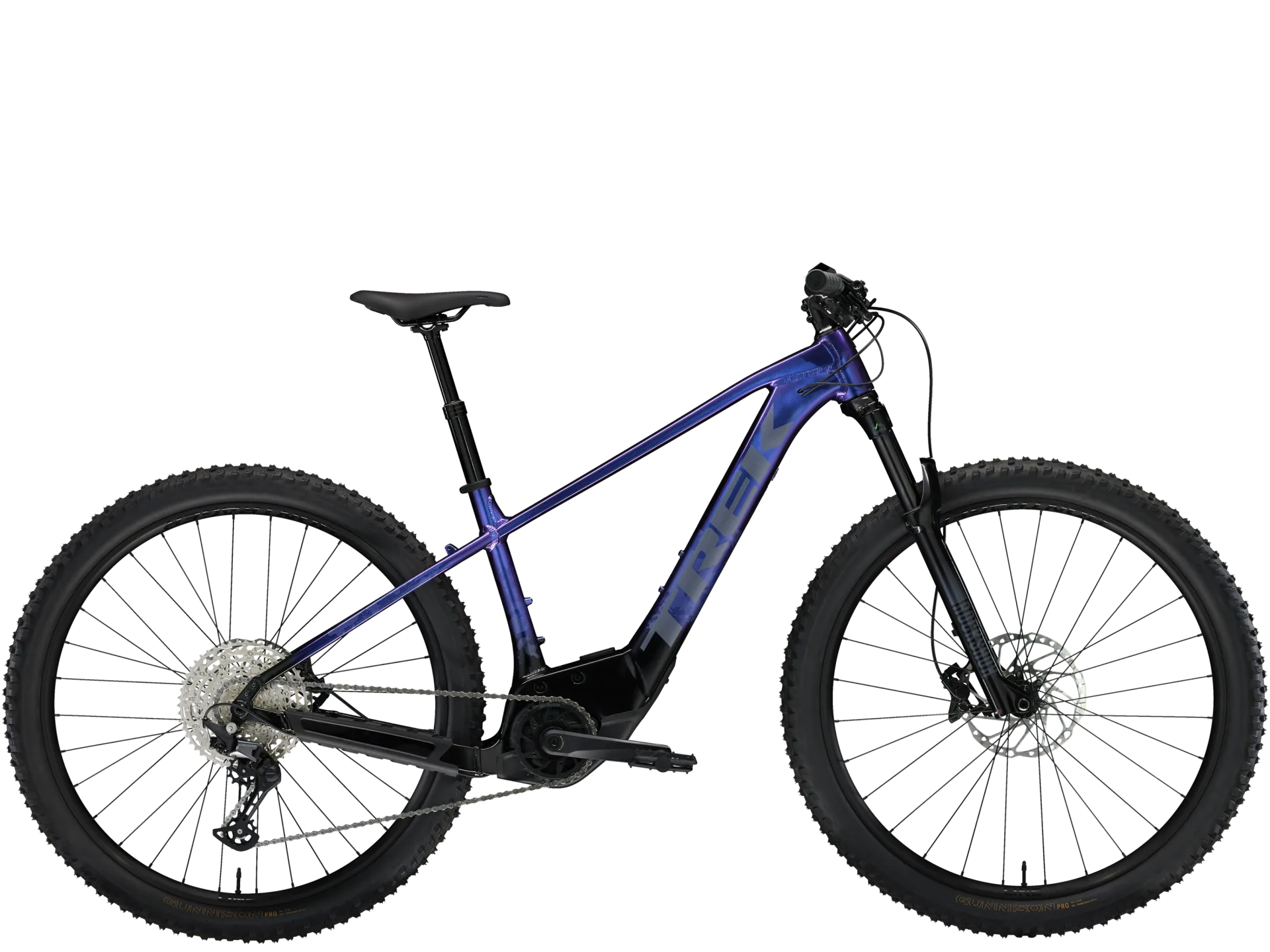

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

It's right for you if...

A boost of power is just what you're after, but you don't drain the bank account. You want plenty of gears for riding all kinds of trails, and the flat protection offered by wide 2.6 in tubeless-ready wheels and tyres.

The tech you get

An Alpha Gold Aluminium frame with real mountain bike geometry and an air-sprung 120 mm fork. A reliable Bosch Active Line Plus 50Nm drive system capable of assisting you to speeds of 25 km/h. A compact Purion 200 remote with built in display and 400 Wh Powertube battery. You get 12-speed Shimano Deore shifting, hydraulic disc brakes and wide, 2.6 in tubeless-ready tyres that boost grip and help prevent flats.

The final word

The Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and a Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.


Why you'll love it

  1. Its AUTO mode adaptive motor support recognises speed reductions and adjusts assistance automatically
  2. The 120 mm suspension keeps your ride feeling smooth through bumps, roots and rough stuff
  3. The Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
  4. Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
  5. Tons of rack and mudguard mounts let you customise your ride for the trail or taking on daily commutes

*Please note – spec applies to all sizes unless listed separately

Frameset
*Frame Size: XS

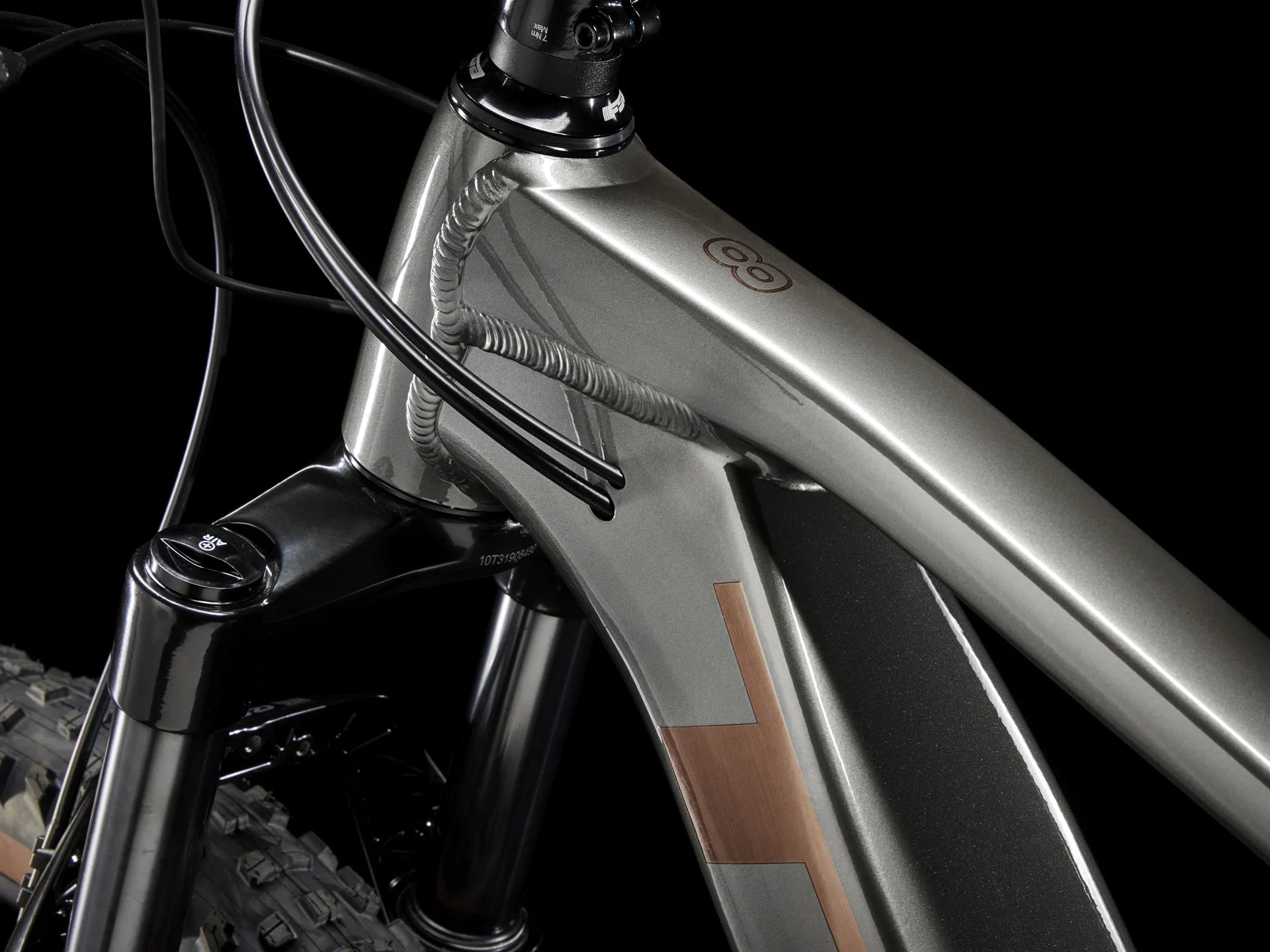

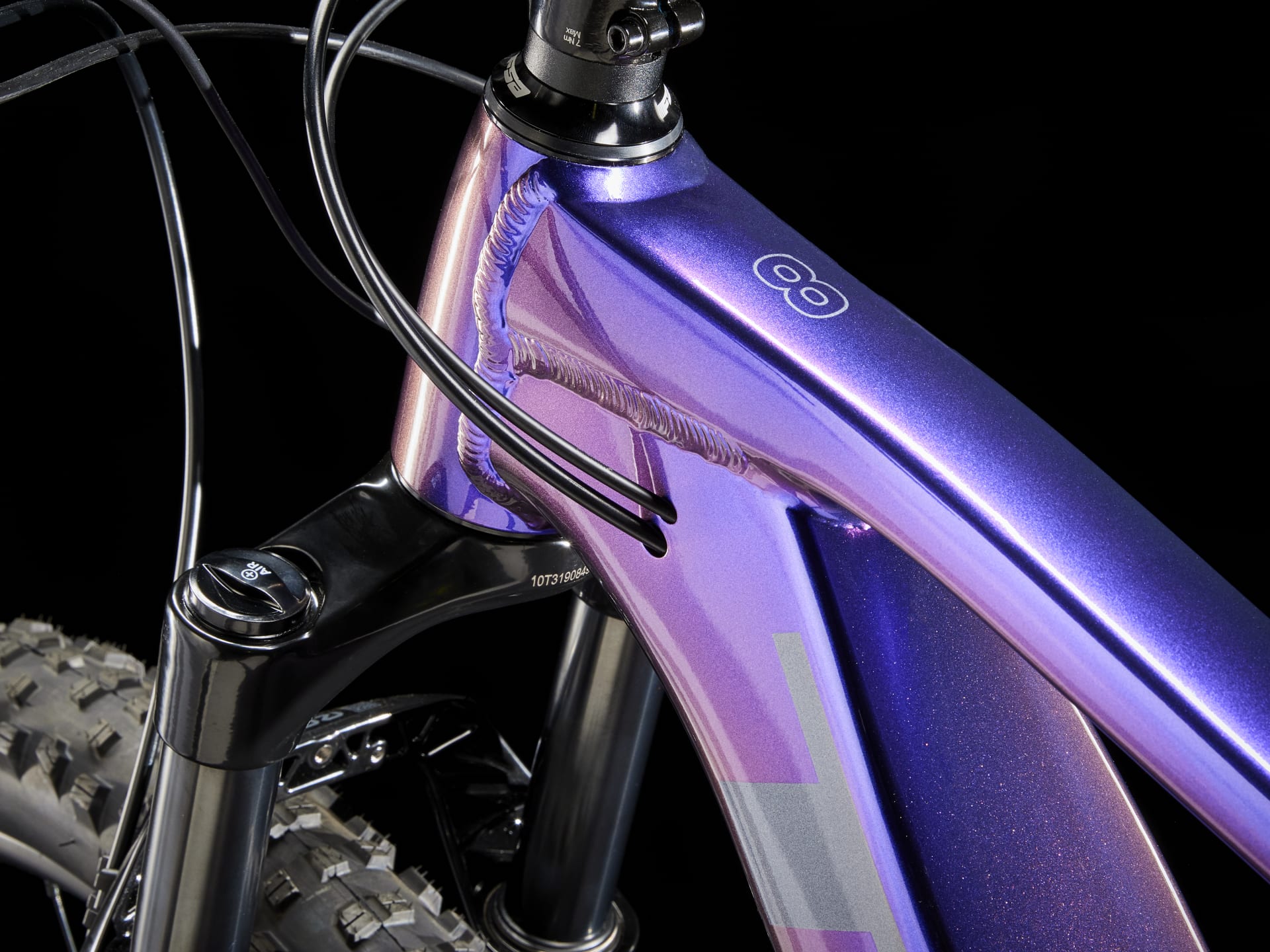

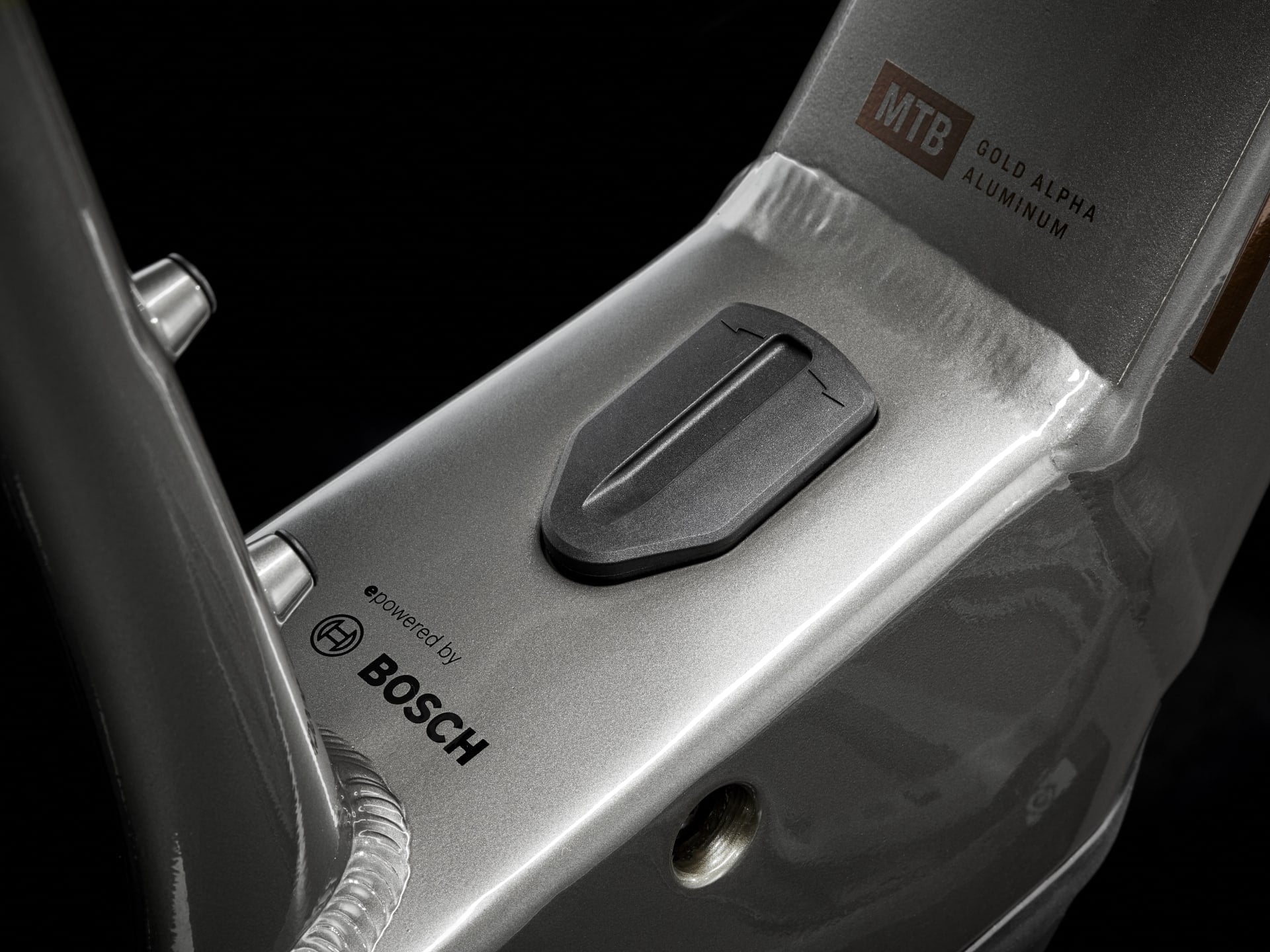

Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
Size: S , M , L , XL
Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
*Fork Size: XS

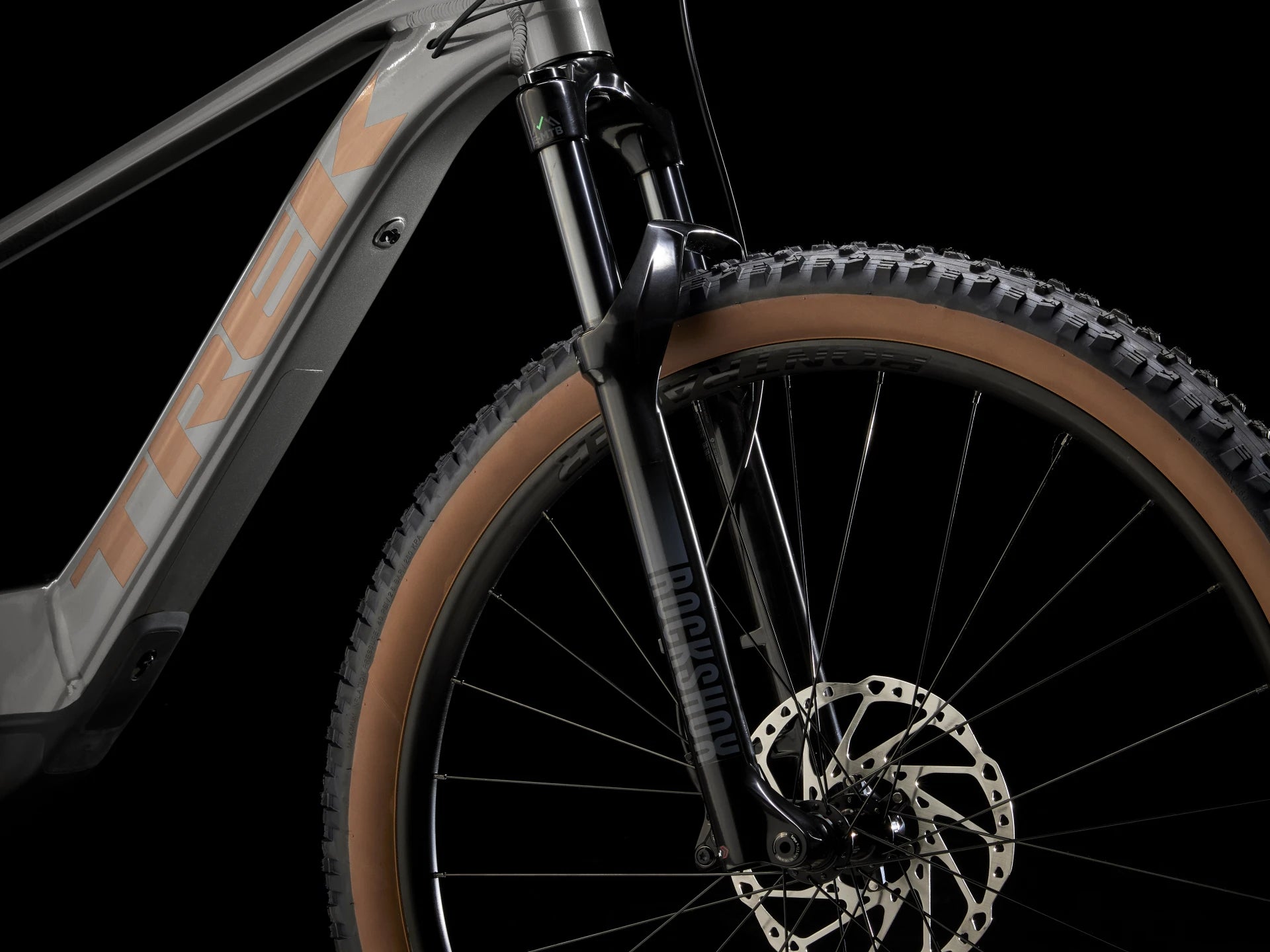

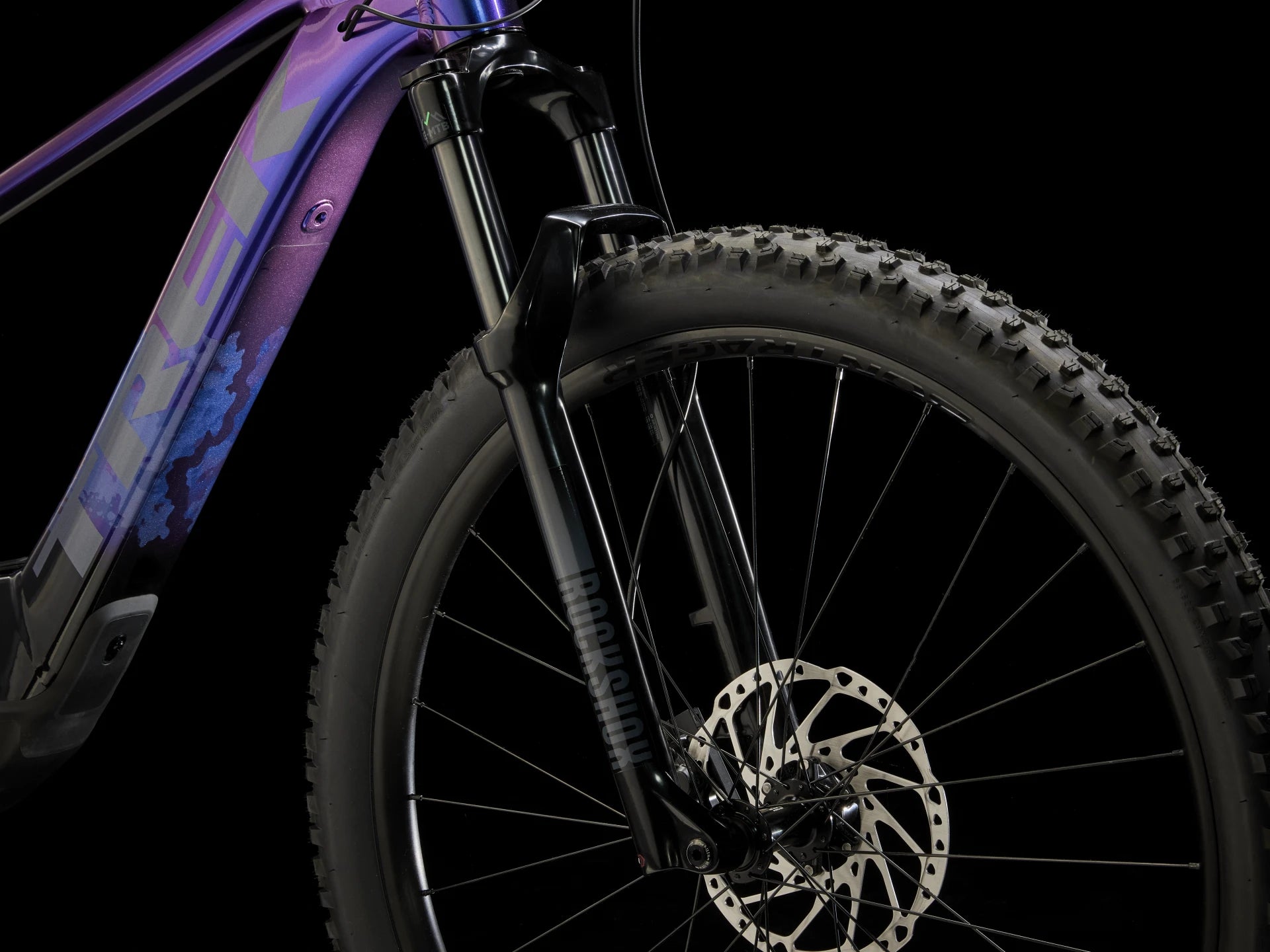

RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
Size: S
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Size: M , L , XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel See service manual
Wheels
Hub front Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
*Tyre Size: XS , S
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
Size: M , L , XL
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer
E-system

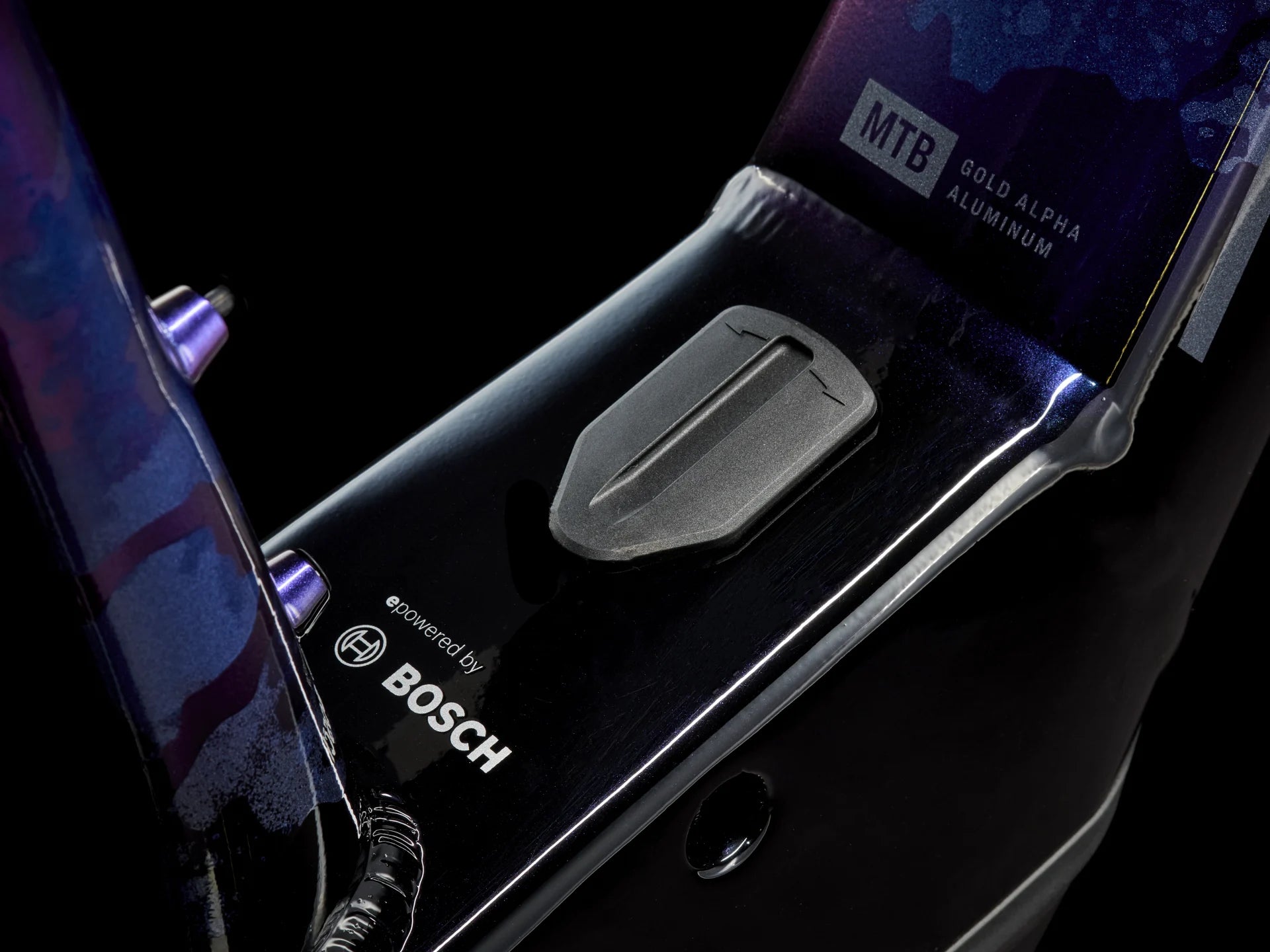

Battery Bosch CompactTube 400 Wh
*Charger Size: XS , S , M , L , XL

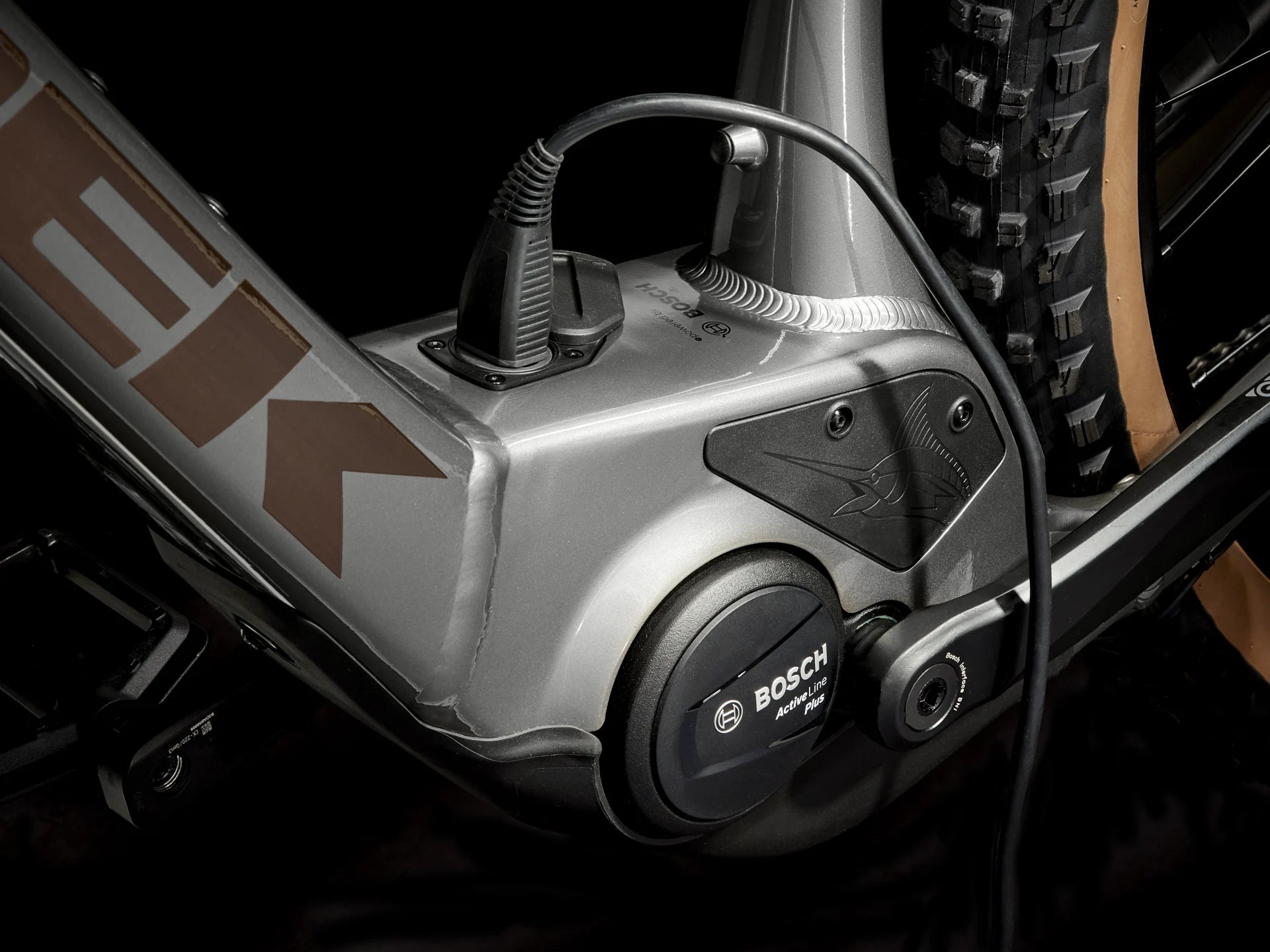

Bosch standard 4A, 230V, smart system
Size: XS , S , M , L , XL
Bosch standard 2A, 230V, smart system

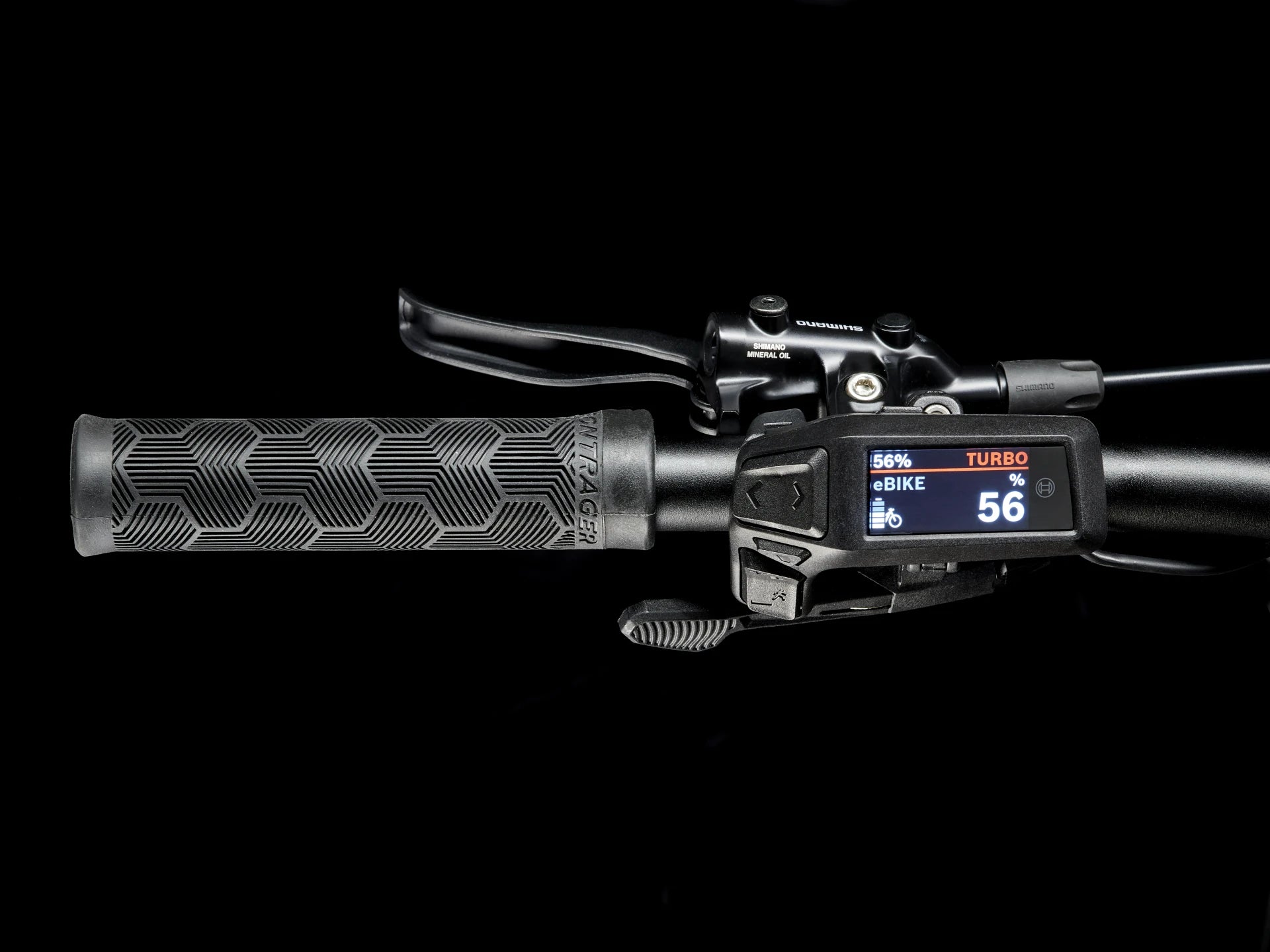

Computer Bosch Purion 200

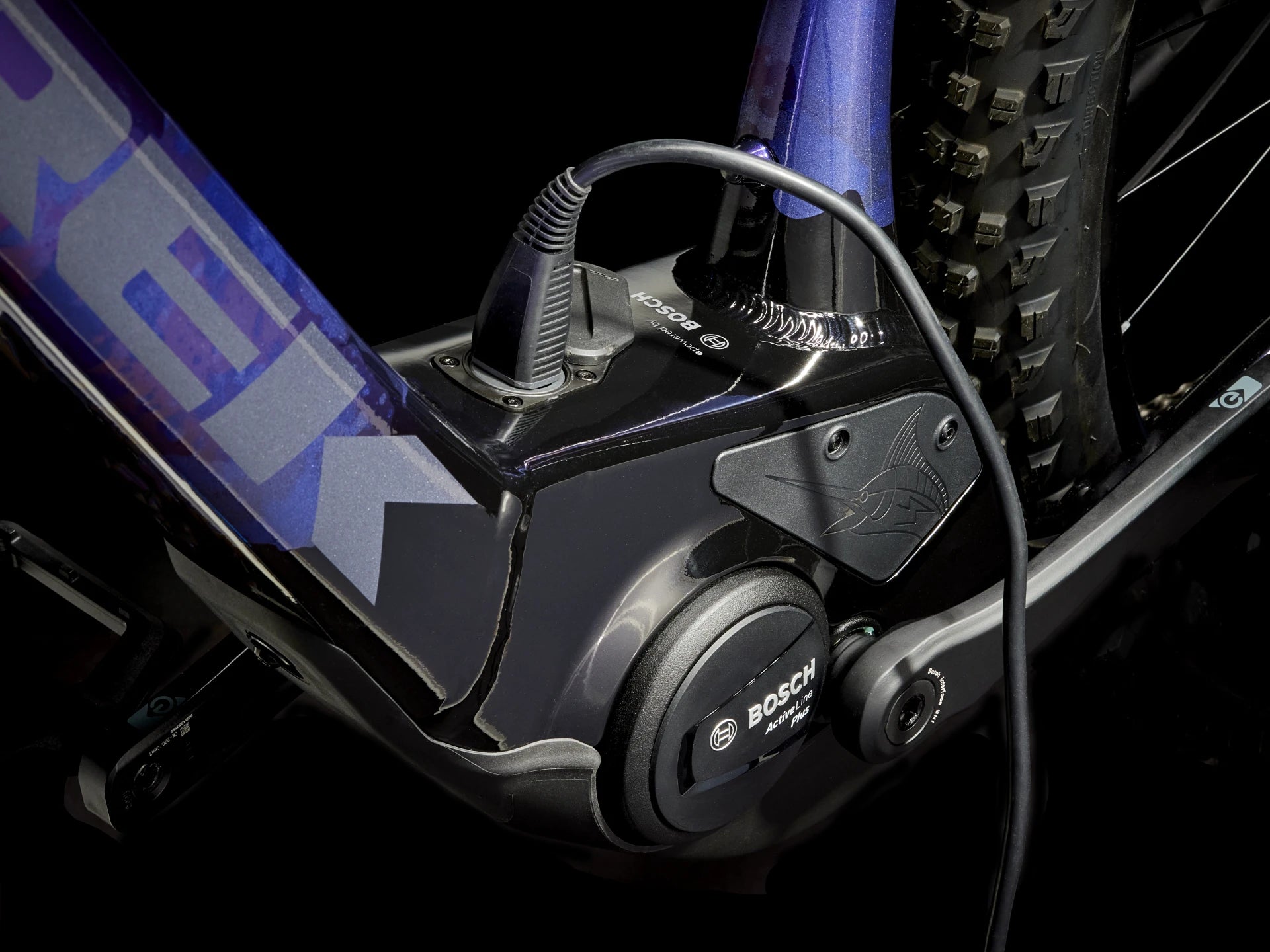

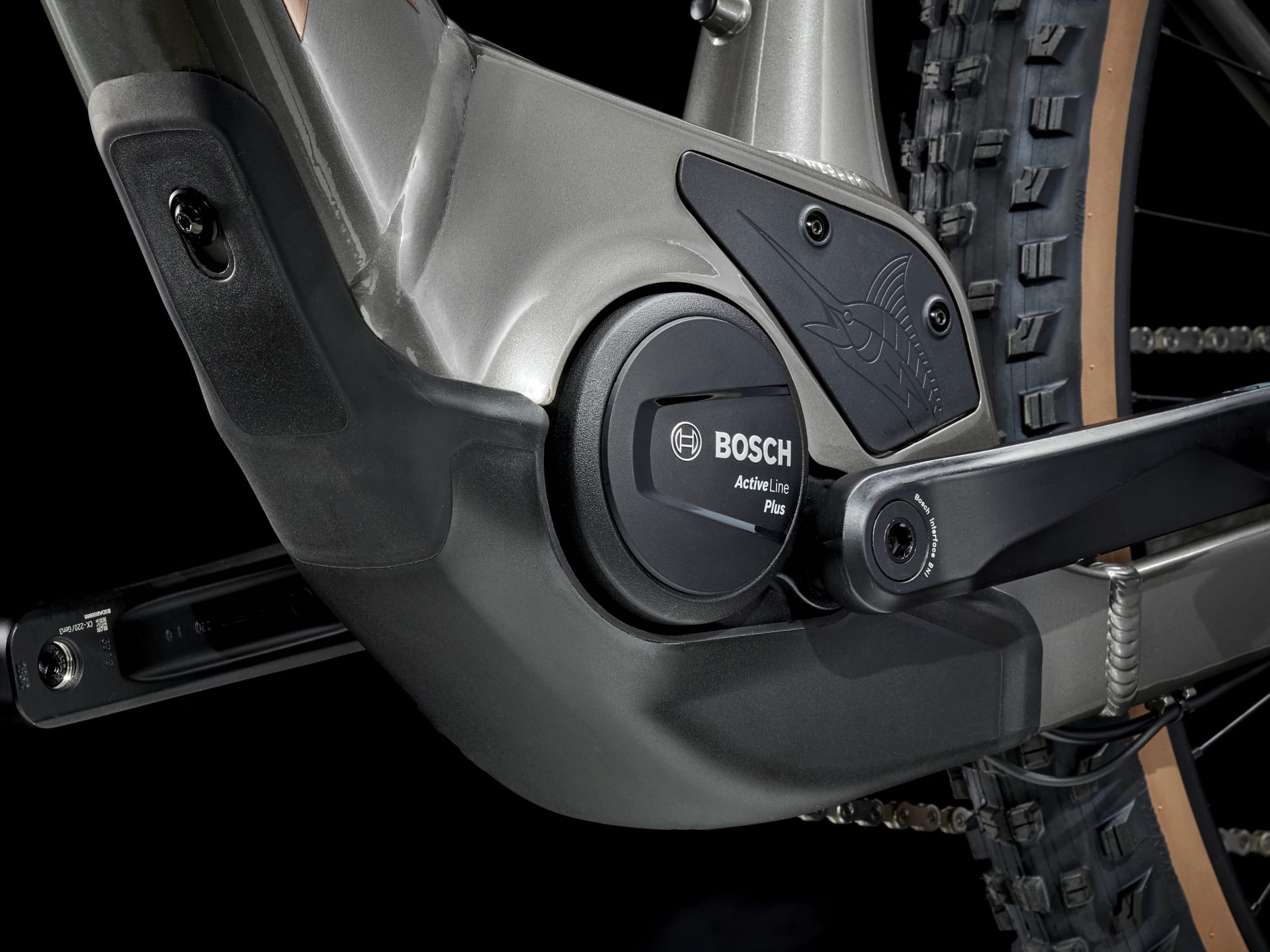

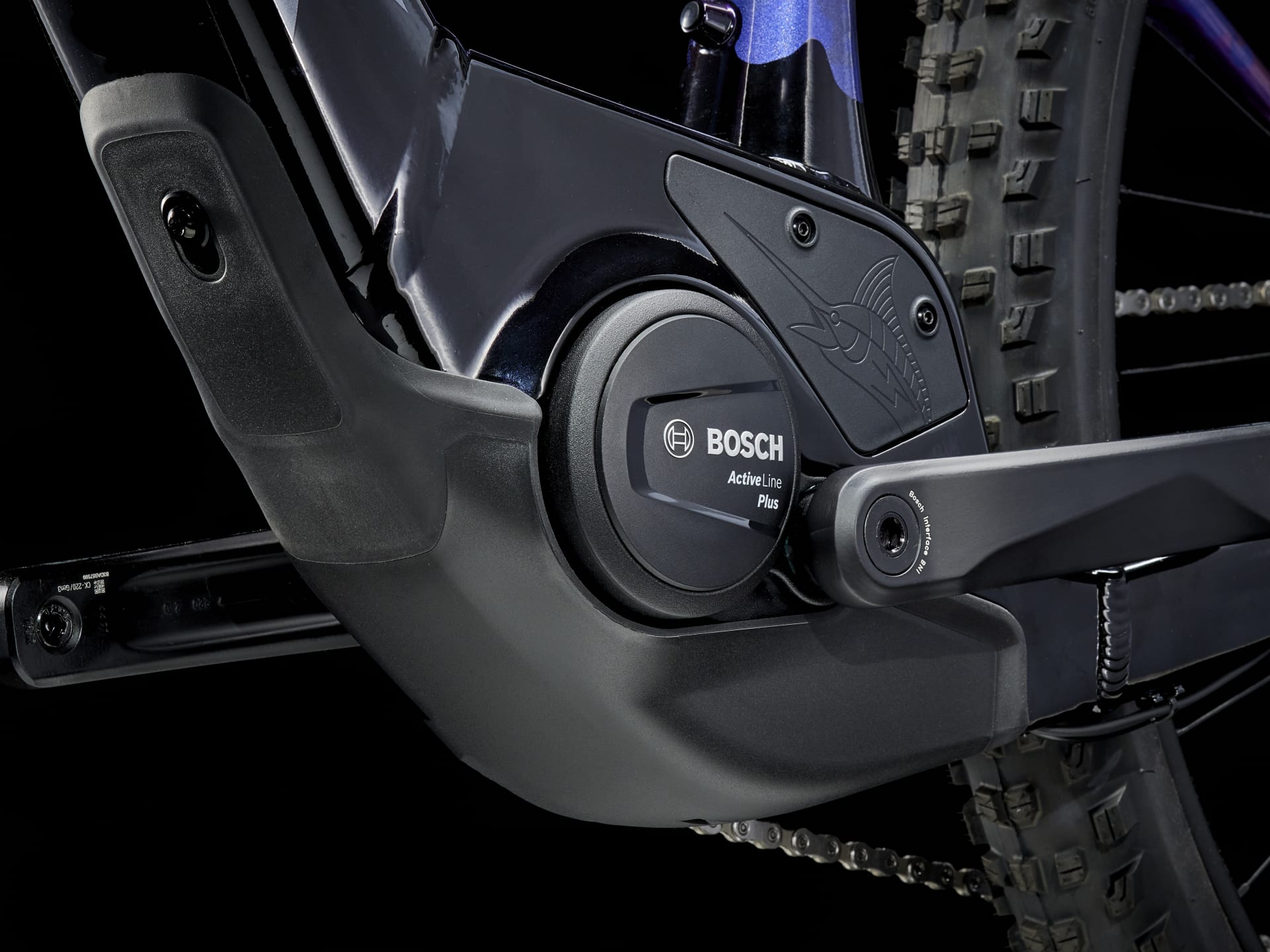

Motor Bosch Active Line Plus, 50 Nm
Drivetrain
Shifter Shimano Deore M6100, 12-speed
Rear derailleur Shimano Deore M6100, long cage
Crank FSA CK-220, 165 mm length
Chainring FSA, 32T, steel w/guard

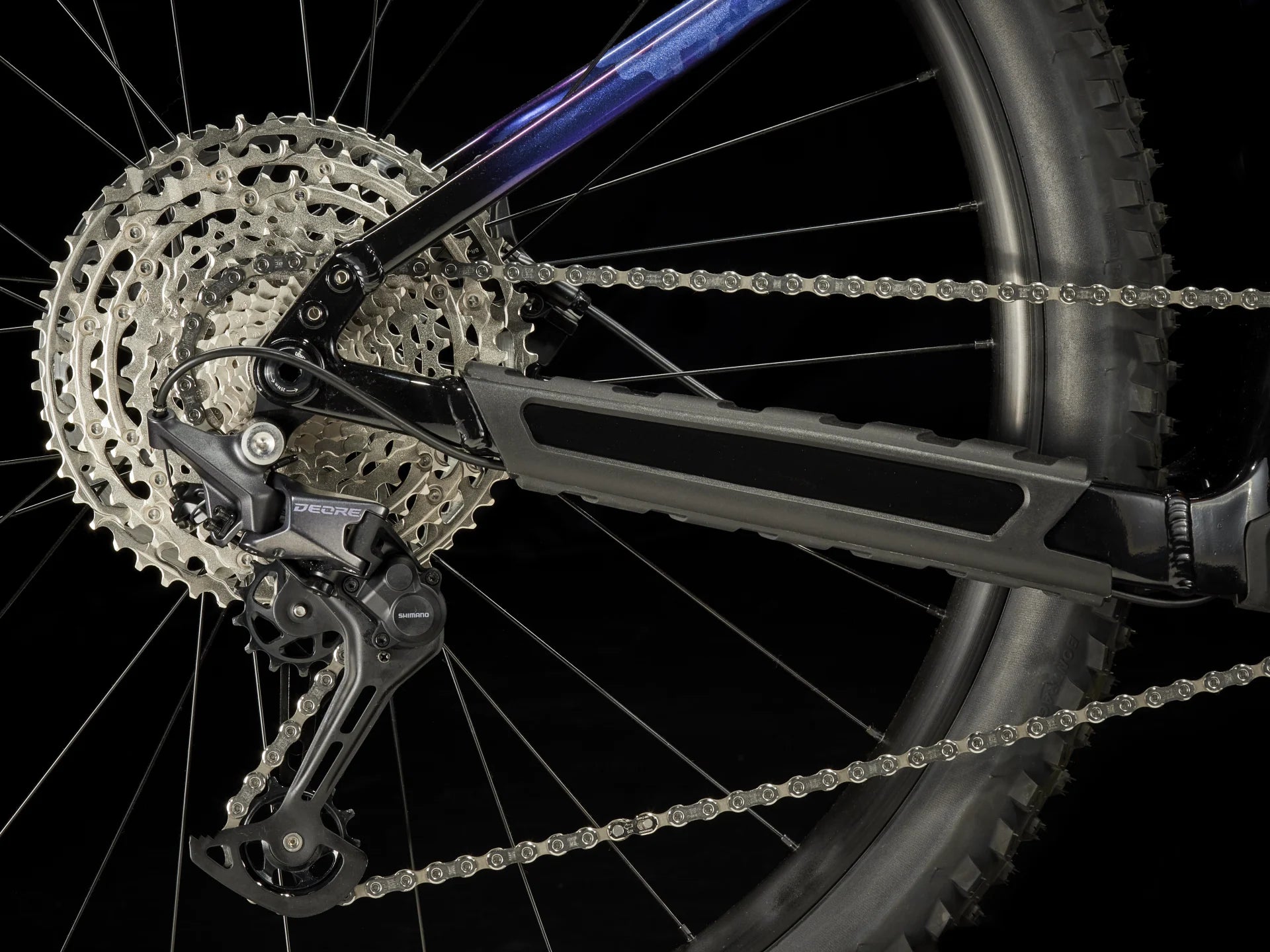

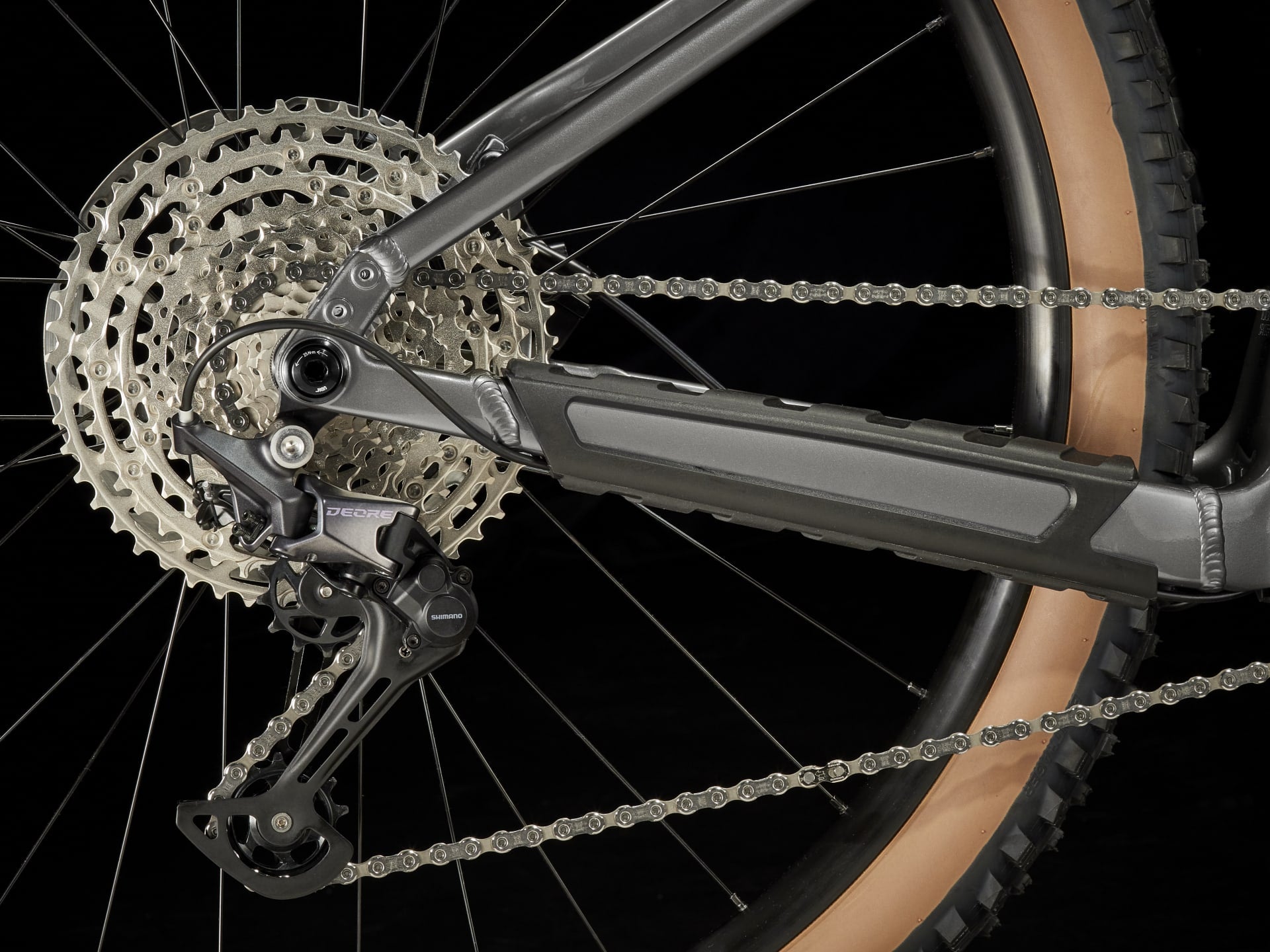

Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano Deore M6100, 12-speed
Pedal VP-536 nylon platform
Max. chainring size 1x: 36T, min 32T
Components
*Saddle Size: XS , S , M , L , XL

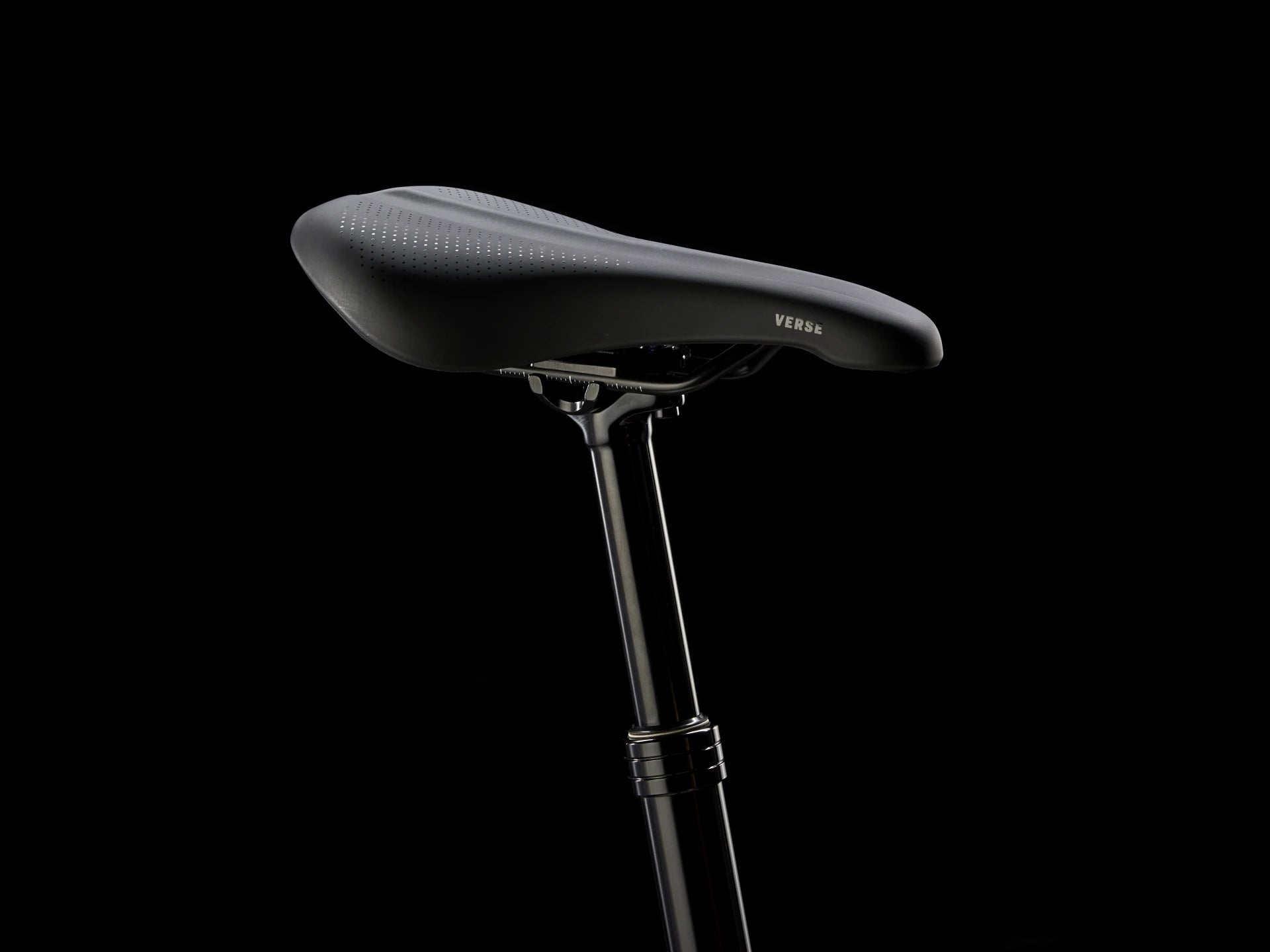

Bontrager Verse P3, chromoly rails
Size: XS , S , M , L , XL
Bontrager Arvada, hollow chromoly rails, 138 mm width
*Seatpost Size: XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M , L , XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
*Handlebar Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Trail Comp, nylon lock-on
*Stem Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Head set Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor Shimano RT64, CentreLock, 203 mm
Rotor size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
Weight
Weight M - 21.49 kg / 47.38 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
XS

145 - 155 cm

4'9" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"


Geometry

All measurements provided in cm unless otherwise stated.

Frame size letter Wheel size A — Seat tube B — Seat tube angle Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
XS 27.5" 34.0 73.8° 74.0° 9.0 66.5° 55.1 31.3 4.5 47.0 4.6 11.0 112.9 67.8 39.0 56.3
S 27.5" 37.0 73.8° 74.0° 10.0 66.5° 58.4 31.3 4.5 47.0 4.6 11.0 116.6 71.0 41.5 59.0
M 29" 42.0 73.8° 74.0° 10.5 66.5° 62.0 31.8 6.0 48.5 4.2 11.4 121.8 76.0 44.0 62.6
L 29" 45.0 73.8° 74.0° 11.5 66.5° 65.2 31.8 6.0 48.5 4.2 11.4 125.1 77.1 47.0 63.5
XL 29" 50.0 73.8° 74.0° 13.5 66.5° 68.2 31.8 6.0 48.5 4.2 11.4 128.4 77.5 49.5 65.3
