Trek Rail 5 Gen 3 2023

Regular price
$5,999.99
Sale price
$5,999.99
Regular price
$7,499.99
Tax included.
If what you're looking for is unavailable call our store 1300 436 379
Color: Rage Red
Size:

The Rail 5 is a full-suspension electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful Bosch drive system that's basically like having your own shuttle.

It's right for you if...

You’re looking for an e-MTB that’s just as ready to shred as non-electric trail bikes. You want a powerful Bosch drive system that’ll propel you up climbs so you can hit lap after lap.

The tech you get

A burly alloy frame with 150 mm of rear travel and a 500 Wh Removable Integrated Battery, an e-MTB optimised 160 mm RockShox 35 Gold RL fork, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including the new Bluetooth® LED remote for easy connectivity, all-in-one navigation and activity tracking through the eBike Flow app. Plus, a 1x12 drive train with a wide gear range so you can always find the ideal cadence for the motor, a dropper post, powerful 4-piston brakes for more downhill confidence and 29er wheels with nimble yet grippy 2.6" tyres.

The final word

Rail 5 is our best-value long-travel e-MTB. It's equally as capable as our regular long-travel trail bikes, it just gets you back to the top in a flash. The powerful Bosch drive systems and durable part spec make for long-lasting fun.


Why you'll love it

  1. Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
  2. Bosch's new smart system gives you all the same power and responsiveness with a new Bluetooth-connected LED remote and eBike Flow app that puts even more control and customisation at your fingertips
  3. The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain

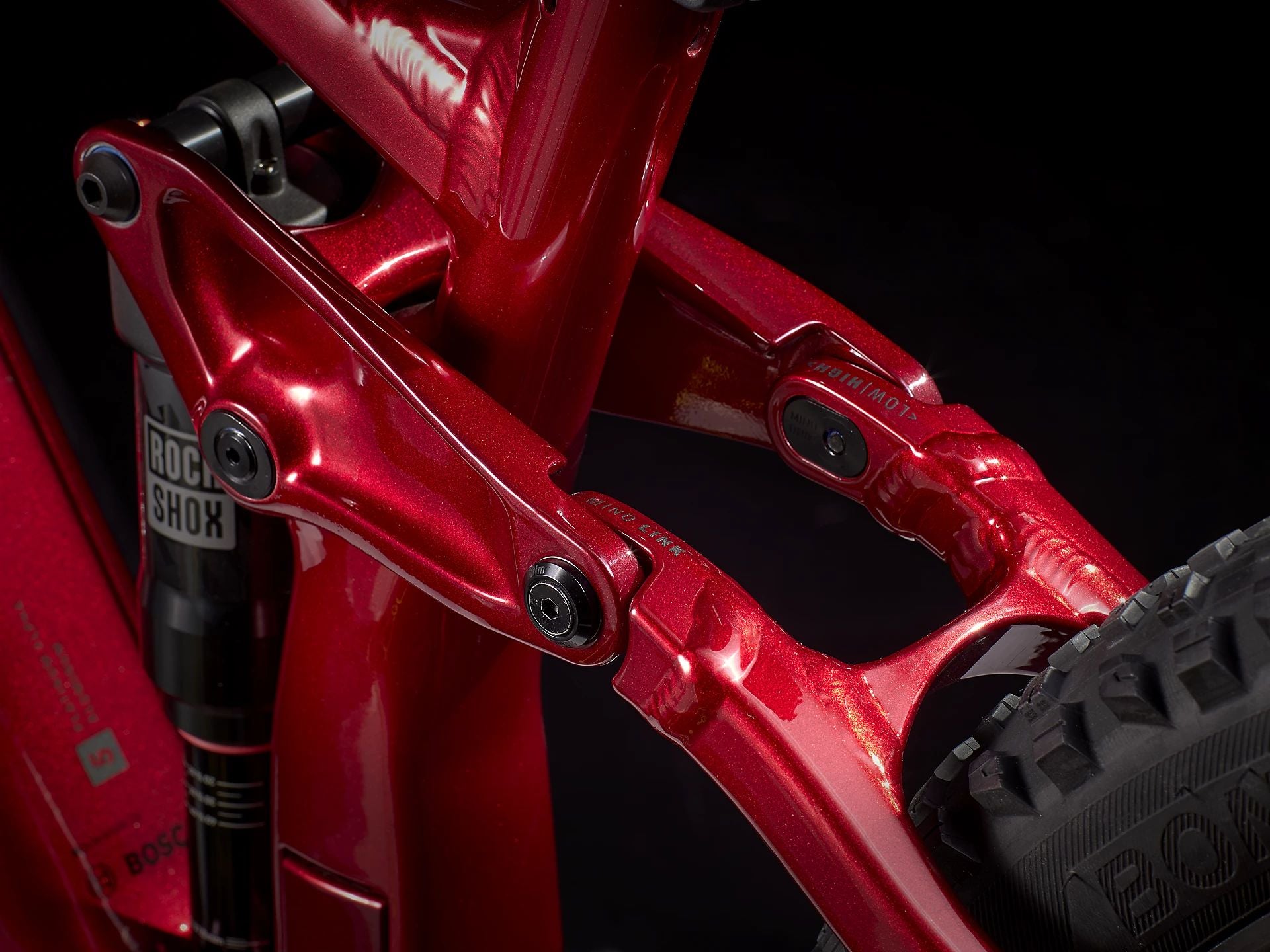

  4. Made with the same hard-charging frame tech as Remedy, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
  5. The dropper post lets you lower your saddle on the fly so it's out of the way on descents

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
Max compatible fork travel 170mm (580mm axle-to-crown)
Wheels
Hub front Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear Bontrager alloy, loose bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Tyre Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Max tyre size Frame: 29x2.60", Fork: See manufacturer
E-system
Battery Bosch PowerTube 500 Wh, smart system
Computer Bosch LED remote, smart system
Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Drivetrain
Shifter Shimano Deore M6100, 12-speed
Rear derailleur Shimano Deore M6100, long cage
Crank E*thirteen E*spec Plus, 165 mm length
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano Deore M6100, 12-speed
Pedal VP-536 nylon platform
Max. chainring size 1x: 34T
Components
Saddle Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M, L, XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor Shimano RT76, 6-bolt, 203 mm
Rotor size Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer
Weight
Weight M - 24.29 kg / 53.56 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"


Geometry

All measurements provided in cm unless otherwise stated.

Frame size number Frame size letter Geometry position Wheel size A — Seat tube B — Seat tube angle Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
15.5" S High 29" 41.0 68.0° 75.4° 10.5 64.9° 58.7 34.4 2.9 44.7 4.3 12.7 119.5 74.8 42.5 62.3
15.5" S Low 29" 41.0 67.6° 75.0° 10.5 64.5° 58.8 33.9 3.5 44.8 4.3 13.1 119.6 74.3 42.0 62.6
17.5" M High 29" 42.0 68.0° 75.4° 10.5 64.9° 61.1 34.4 2.9 44.7 4.3 12.7 122.0 77.8 45.0 62.2
17.5" M Low 29" 42.0 67.6° 75.0° 10.5 64.5° 61.3 33.9 3.5 44.8 4.3 13.1 122.1 77.3 44.5 62.6
19.5" L High 29" 45.0 68.0° 75.4° 11.0 64.9° 63.3 34.4 2.9 44.7 4.3 12.7 124.3 76.7 47.0 62.7
19.5" L Low 29" 45.0 67.6° 75.0° 11.0 64.5° 63.4 33.9 3.5 44.8 4.3 13.1 124.3 76.2 46.5 63.0
21.5" XL High 29" 50.0 68.0° 75.4° 12.0 64.9° 66.5 34.4 2.9 44.7 4.3 12.7 127.7 78.0 49.9 63.6
21.5" XL Low 29" 50.0 67.6° 75.0° 12.0 64.5° 66.6 33.9 3.5 44.8 4.3 13.1 127.8 77.5 49.5 63.9
